- Page 1 K328 Fitting Kit GB Fitting Instructions for Basic Carrier...

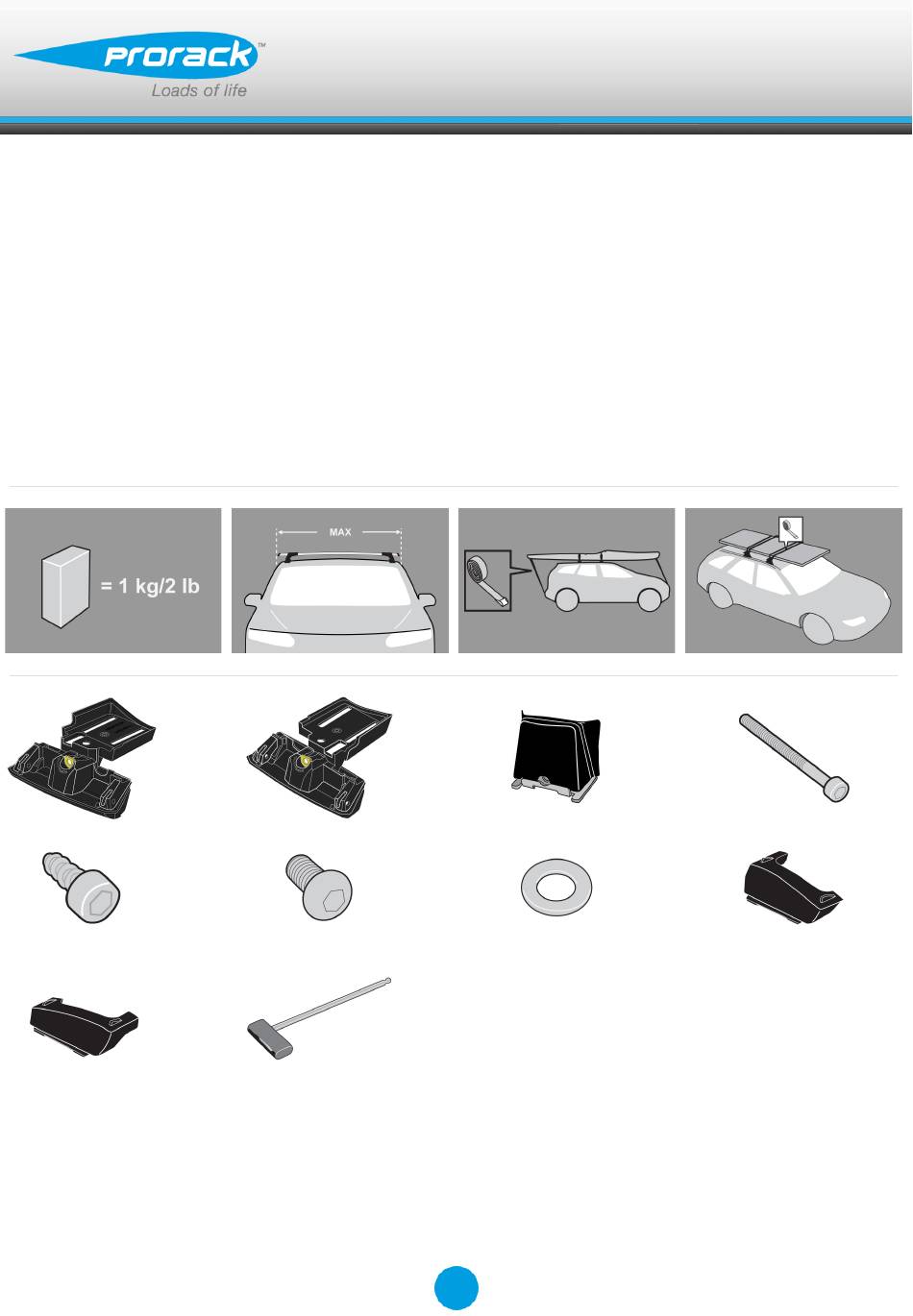

- Page 2 Fitting Kit K328 First Time Installation Remove parts from inside the package and check. Contact your dealer if any parts are missing or damaged. This kit fits type A, B, C and D. These instructions show type A crossbar fitted. They also apply to type B, C and D.
- Page 3 Fitting Kit K328 Use hex screwdriver to reverse adjusting screw 10 turns. Remove plastic clamp block by gripping bar leg with fingers and push firmly with thumbs until clamp block drops out behind leg. Remove both pins from each leg. Use tapered end of spanner located inside left hand cover to assist.
- Page 4 Fitting Kit K328 Detach foot from leg. Store loose parts in a safe place. Ensure that part A is inserted into part B as shown. Note: There is a left hand and right hand side.
- Page 5 Fitting Kit K328 Select rail mount assemblies and match left and right assemblies to the left and right crossbar legs. Assemble foot from kit into leg by pressing it down. Ensure foot interlocks with leg. Using short capscrew and washer, secure...
- Page 6 Fitting Kit K328 Use two M5 x 12 mm self tapping screws to secure the assembly onto the leg. Do not over tighten. Repeat for all legs. Slide clamp back towards centre of crossbar. Insert M6 x 70 mm capscrew through square brass washer and rail mount assembly.
- Page 7 Fitting Kit K328 Bolt should sit in groove as shown. Use 5mm Hex Key to start thread. Repeat for all legs. For type C and D crossbars only. When attaching this fitting kit to type C and D crossbars, a gap will exist.
- Page 8 Fitting Kit K328 Attach the fairings (supplied with this kit) to the back of the leg. Note: There is a left hand and right hand side. Ensure the fairings 'click' into place and sit flush. Fitment Adjust crossbar in or out to suit vehicle.
- Page 9 Fitting Kit K328 Tighten adjusting screw to 5 Nm (3.7 ft lb). Use 5mm Hex Key to tighten clamp and secure crossbar to rail. Correctly installed crossbars. Side rails may vary to those pictured. Ensure that all legs clamp securely to the...
- Page 10 Fitting Kit K328 Check crossbar is securely attached to the vehicle. Use keys to fit and lock covers CAUTION: CAUTION: CAUTION: CAUTION: Recheck all fasteners immediately after a load is Recheck all fasteners immediately after a load is Recheck all fasteners immediately after a load is Recheck all fasteners immediately after a load is applied to the crossbars.
- Page 11 Fitting Kit K328 Maintenance Clean the car roof and surfaces of the product that will be in contact with the car roof. Follow the fitting instructions for fitting the product to your vehicle. Make sure all steps are carried out in order.
- Page 12 Fitting Kit K328 A loaded roof rack system can alter the performance of your vehicle. Be especially aware of the effects of side winds, changing of direction, and braking performance. Avoid rapid acceleration and deceleration. Drive carefully. Note that the total height of the vehicle increases when upright loads are carried.
- Page 13 Fitting Kit K328...
