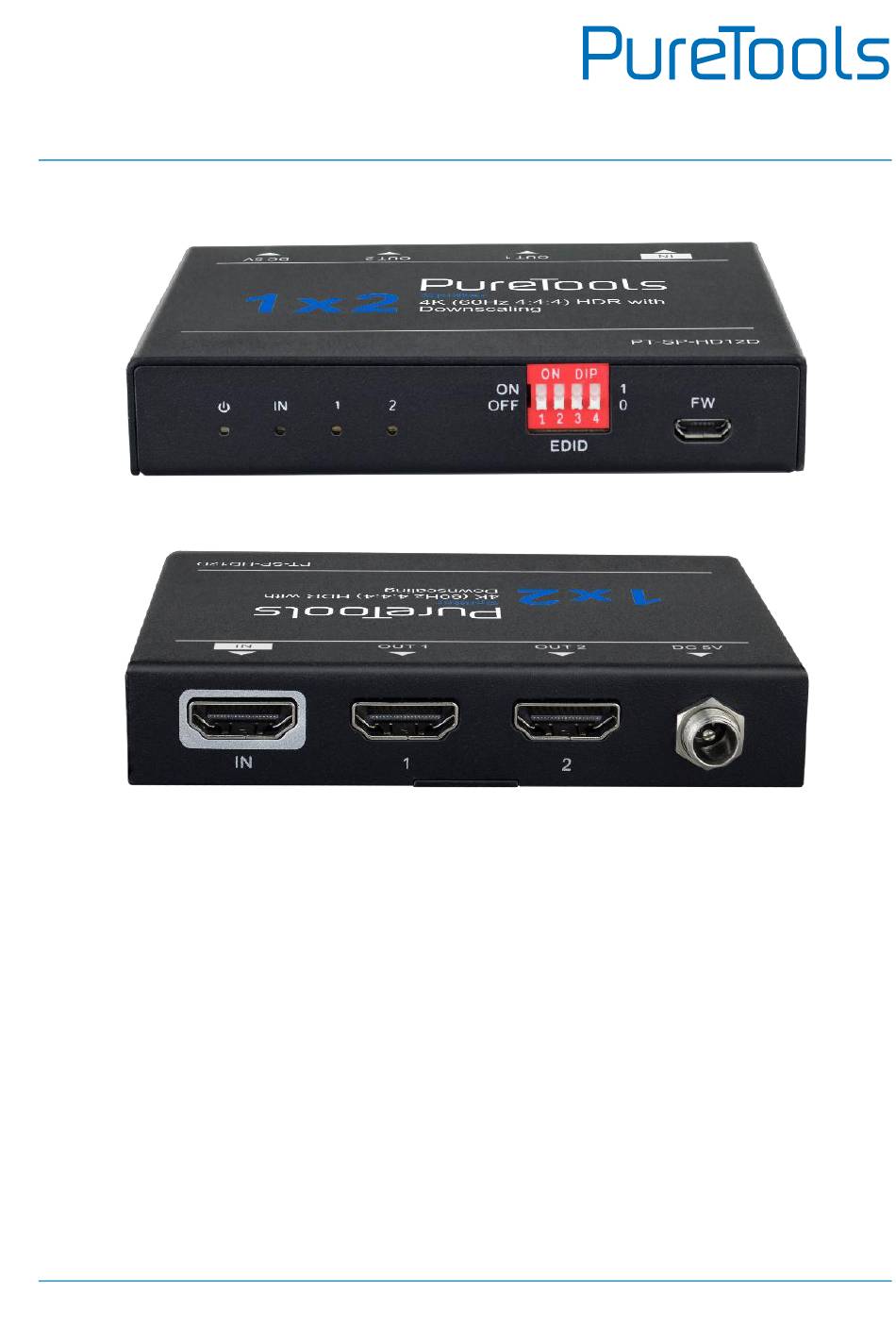

- Page 1 User Manual PT-SP-HD12D User Manual HDMI Splitter 1x2 4K (60Hz 4:4:4) HDR with Downscaling Model PT-SP-HD12D Designed in Germany © 2018 PureLink GmbH All rights reserved. V1.0...
-
Page 2: Fcc Statement
User Manual PT-SP-HD12D Preface Read this user manual carefully before using this product. Pictures shown in this manual are for reference only. Different model layouts and specifications are subject to the physical product. This manual is for operation instructions only, not for any maintenance usage. - Page 3 Directives 1907/2006/EU und 2011/65/EU. EMC / LVD (Electro Magnetic Compatibility / Low Voltage Directive) PureLink GmbH hereby declares that this product PureTools PT-SP-HD12D complies with Directives 2014/30/EU and 2014/35/EU. The full text of the EU Declaration of Conformity is available at the following Internet address:...
-
Page 4: Safety Precautions
User Manual PT-SP-HD12D SAFETY PRECAUTIONS To ensure the best from the product, please read all instructions carefully before using the device. Save this manual for further reference. Unpack the equipment carefully and save the original box and packing material ... -
Page 5: Product Introduction
User Manual PT-SP-HD12D Product Introduction Thanks for choosing the HDMI 2.0 1x2 Splitter, which can distribute one HDMI input to two outputs. The splitter supports HDMI video resolution up to 4K@60Hz 4:4:4, 1080P 3D, and multichannel audio formats. Besides passing EDID information from the display, there are multiple built-in EDID settings can be selected by the 4-pin DIP switch on the front panel. -
Page 6: Panel Description

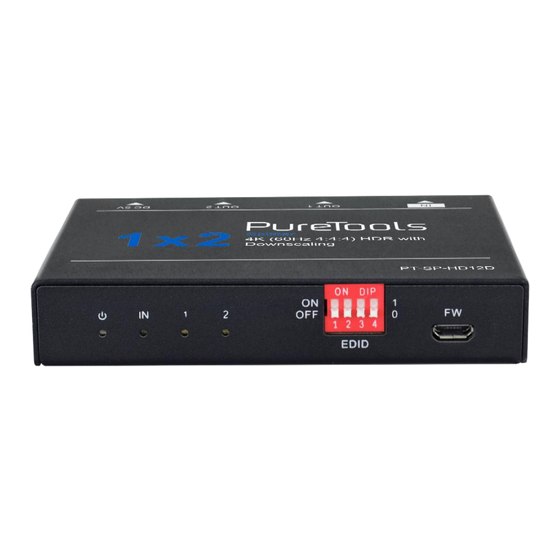

User Manual PT-SP-HD12D Panel Description Front Panel 1 2 3 4 EDID ① POWER LED: The LED illuminates red when power is applied. ② INPUT LED: The LED illuminates blue when there is HDMI input. ③ OUTPUT LEDs: The LED illuminates blue when there is HDMI output on the corresponding channel. -
Page 7: Dip Switch Operation
User Manual PT-SP-HD12D DIP Switch Operation EDID Management The Extended Display Identification Data (EDID) is used by the source device to match its video resolution with the connected display. By default, the source device obtains its EDID from the first connected display. Meanwhile, since the displays... - Page 8 User Manual PT-SP-HD12D Switch Status Video Resolution Audio Format Obtains EDID from the first detected display starting at HDMI output 1>2. Obtains EDID from the first detected display starting at HDMI output 2>1. 1080P LPCM 1080P DTS/Dolby 3840x2160@30Hz HDR LPCM...
-
Page 9: Firmware Upgrade
User Manual PT-SP-HD12D Resolution Refresh Color Space Downscale 1080P Specs 3840x2160 4:2:0 Support 1080P@30Hz 4:2:0 3840x2160 4:2:0 Support 1080P@24Hz 4:2:0 3840x2160 4:2:2 Not Support 3840x2160 4:2:2 Not Support 3840x2160 4:2:2 Not Support Firmware Upgrade Please follow the below steps to upgrade firmware by the Micro-USB port: 1) Connect the splitter to the PC with USB cable. -
Page 10: Technical Specification
User Manual PT-SP-HD12D Technical Specification Video Input Input (1) HDMI Input Connector (1) Type-A female HDMI HDMI Input Resolution Up to 4Kx2K@60Hz 4:4:4 8bit HDMI Standard HDCP Version 2.2, 1.4 compliant Supported Video Output Output (2) HDMI Output Connector (2) Type-A female HDMI... -
Page 11: After Sales Service
User Manual PT-SP-HD12D After-Sales Service If there appear some problems when running the product, please check and deal with the problems referring to this user manual. Any transport costs are borne by the users during the warranty. 1) Product Limited Warranty: The product will be free from defects in materials and workmanship for two years (The purchase invoice shall prevail). -
Page 12: Asking For Assistance
User Manual PT-SP-HD12D Asking for Assistance Technical Support: Phone: +49 5971 800299 - 0 Fax: +49 5971 800299 – 99 Technical Support Hours: 8:30 AM to 5:00 PM Monday thru Thursday 8:30 AM to 4:00 PM Friday Write to: PureLink GmbH Von-Liebig-Straße 10...
