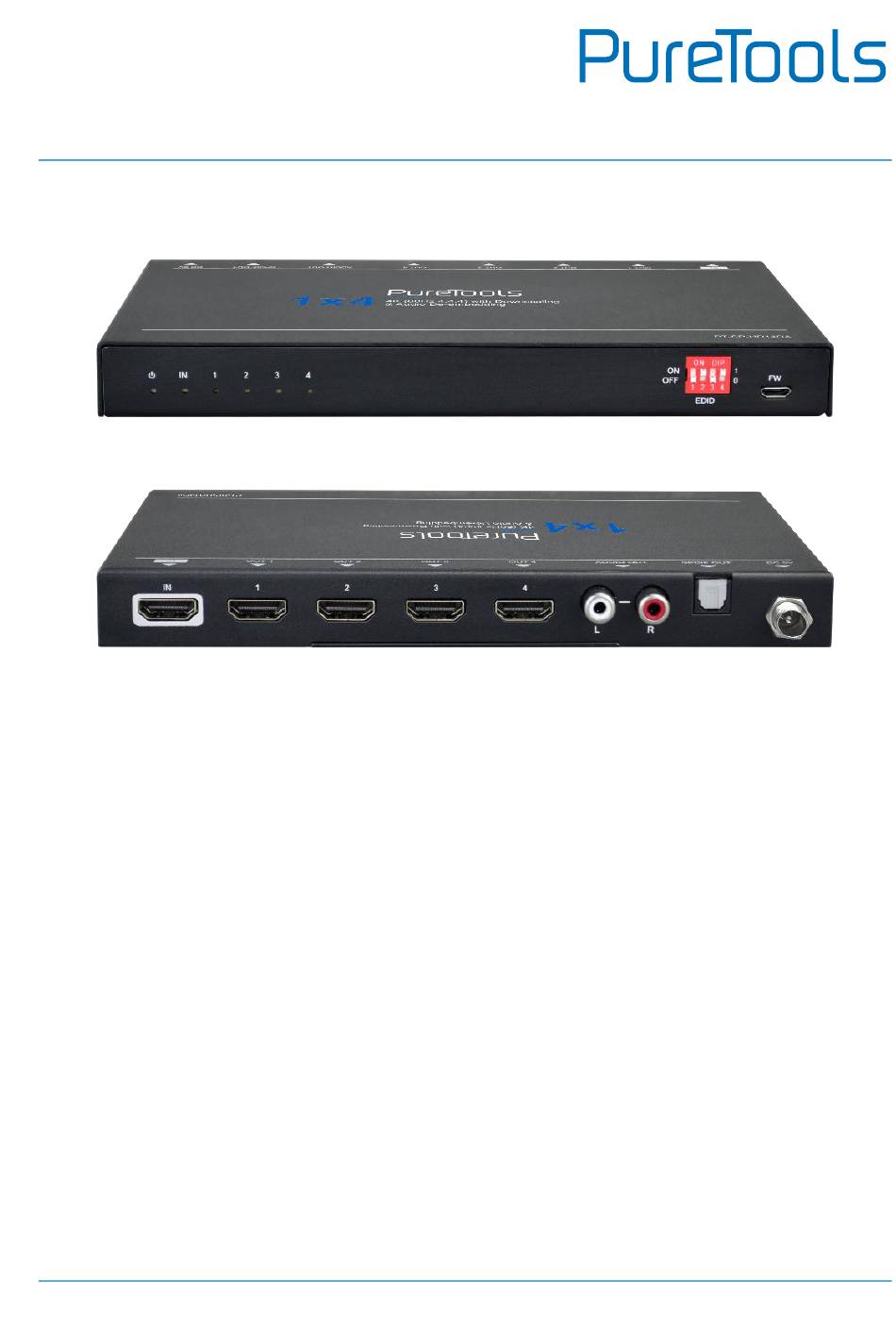

- Page 1 User Manual PT-SP-HD14DA User Manual HDMI Splitter 1x4 4K (60Hz 4:4:4) with Downscaling & Audio De-embedding Model PT-SP-HD14DA Designed in Germany © 2018 PureLink GmbH All rights reserved. V1.0...
- Page 2 User Manual PT-SP-HD14DA Preface Read this user manual carefully before using this product. Pictures shown in this manual are for reference only. Different model layouts and specifications are subject to the physical product. This manual is for operation instructions only, not for any maintenance usage.
- Page 3 PT-SP-HD14DA REACH | 1907/2006/EU ROHS | 2011/65/EU PureLink hereby declares that this product PureTools PT-SP-HD14DA complies with Directives 1907/2006/EU und 2011/65/EU. EMC / LVD (Electro Magnetic Compatibility / Low Voltage Directive) PureLink GmbH hereby declares that this product PureTools PT-SP-HD14DA complies with Directives 2014/30/EU and 2014/35/EU.
- Page 4 User Manual PT-SP-HD14DA SAFETY PRECAUTIONS To ensure the best from the product, please read all instructions carefully before using the device. Save this manual for further reference. Unpack the equipment carefully and save the original box and packing material ...
-
Page 5: Table Of Contents
User Manual PT-SP-HD14DA Table of Content 1. Product Introduction ........................1 1.1 Features ..........................1 1.2 Packing List ........................2 2. Specification ..........................3 3. Panel Description ........................5 3.1 Front Panel ......................... 5 3.2 Rear Panel .......................... 6 4. System Connection ........................7 4.1 Usage Precautions ...................... -
Page 6: Product Introduction
User Manual PT-SP-HD14DA 1. Product Introduction Thanks for choosing the one input to four output HDMI2.0 Splitter. The splitter supports HDMI video resolution up to 4K@60Hz 4:4:4, 1080P 3D and multichannel audio formats. Besides passing EDID information from the display, there are multiple built-in EDID settings can be selected by the 4-pin DIP switch on the front panel. -
Page 7: Packing List
User Manual PT-SP-HD14DA 1.2 Packing List 1x HDMI 2.0 1x4 Splitter 2x Mounting Ears with 4 Screws 4x Plastic Cushions 1x Power Adapter (5V DC 1A) 1x User Manual Note: Please contact your distributor immediately if any damage or defect in the... -
Page 8: Specification
User Manual PT-SP-HD14DA 2. Specification Video Input Input (1) HDMI Input Connector (1) Female type-A HDMI HDMI Input Resolution Up to 4Kx2K@60Hz 4:4:4 HDMI Standard HDCP Version 2.2, 1.4 compliant Video Output Output (4) HDMI Output Connector (4) Female type-A HDMI... - Page 9 User Manual PT-SP-HD14DA Audio <0.05% (-80dB), 20Hz ~ 20KHz bandwidth, 1KHz THD+N sine at 0dBFS level (or max level) >80dB, 20Hz ~ 20KHz bandwidth >70dB, 10KHz sine at 0dBFS level (or max level Crosstalk Isolation before clipping) <0.3dB, 1KHz sine at 0dBFS level (or max level...
-
Page 10: Panel Description

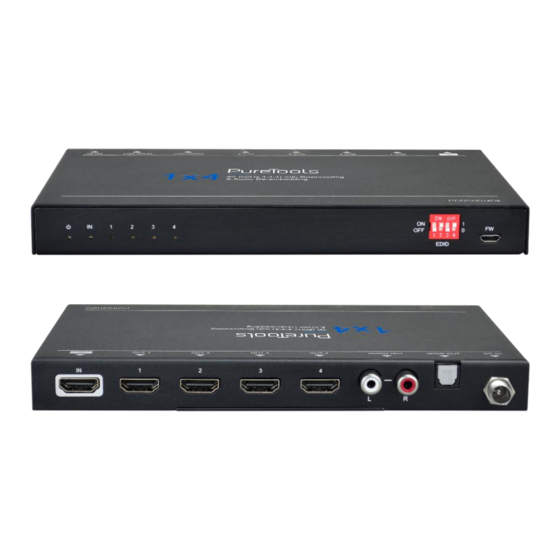

User Manual PT-SP-HD14DA 3. Panel Description 3.1 Front Panel ① Power LED: The LED illuminates red when power is applied. ② INPUT LED: The LED illuminates blue when there is an input signal present. ③ OUT 1~OUT 4 LED: The LED illuminates blue when there is HDMI output on the corresponding channel. -
Page 11: Rear Panel
User Manual PT-SP-HD14DA 3.2 Rear Panel ① IN: Type-A female HDMI input port to connect HDMI source. ② OUT 1 ~ OUT 4: Four Type-A female HDMI output port to connect HDMI displays. ③ AUDIO OUT: RCA connector for analog audio output. -
Page 12: System Connection
User Manual PT-SP-HD14DA 4. System Connection 4.1 Usage Precautions Make sure all components and accessories included before installation. System should be installed in a clean environment with proper temperature and humidity. All of the power switches, plugs, sockets, and power cords should be insulated ... -
Page 13: Dip Switch Operation
User Manual PT-SP-HD14DA 5. DIP Switch Operation 5.1 EDID Management The Extended Display Identification Data (EDID) is used by the source device to match its video resolution with the connected display. By default, the source device obtains its EDID from the first connected display. Meanwhile, since the displays with different capabilities are connected to the splitter, the DIP switch on the front panel can be used to set the EDID to a fixed value to ensure the compatibility in video resolution. -
Page 14: Hdcp Mode
User Manual PT-SP-HD14DA Switch Status Video Resolution Audio Format Obtains EDID from the first detected display starting at HDMI output 1>2>3>4. Obtains EDID from the first detected display starting at HDMI output 4>3>2>1. 1080P LPCM 1080P DTS/Dolby 3840x2160@30Hz LPCM 3840x2160@30Hz... -
Page 15: Video Resolution Down-Scaling
User Manual PT-SP-HD14DA 6. Video Resolution Down-scaling The product supports video resolution down-scaling, the 4K input can be automatically degraded to 1080P output for compatibility with 1080P display, shown in the below chart. Input Output Color Resolution Refresh Downscale 1080P Specs... -
Page 16: Panel Drawing
User Manual PT-SP-HD14DA 8. Panel Drawing 20.0mm 190.0mm Splitter 4K (60Hz 4:4:4) with Downscaling & Audio De-embedding PT-SP-HD14DA... -
Page 17: Troubleshooting & Maintenance
User Manual PT-SP-HD14DA 9. Troubleshooting & Maintenance Problems Potential Causes Solutions The connecting cables Check whether the cables may not be connected are connected correctly and correctly or it may be Colour losing or no in working condition. broken. video signal output in HDMI display. -
Page 18: After-Sales Service
User Manual PT-SP-HD14DA 10. After-Sales Service If there appear some problems when running the product, please check and deal with the problems referring to this user manual. Any transport costs are borne by the users during the warranty. 1) Product Limited Warranty: The product will be free from defects in materials and workmanship for two years (The purchase invoice shall prevail). - Page 19 User Manual PT-SP-HD14DA...
- Page 20 User Manual PT-SP-HD14DA Asking for Assistance Technical Support: Phone: +49 5971 800299 - 0 Fax: +49 5971 800299 – 99 Technical Support Hours: 8:30 AM to 5:00 PM Monday thru Thursday 8:30 AM to 4:00 PM Friday Write to: PureLink GmbH Von-Liebig-Straße 10...
