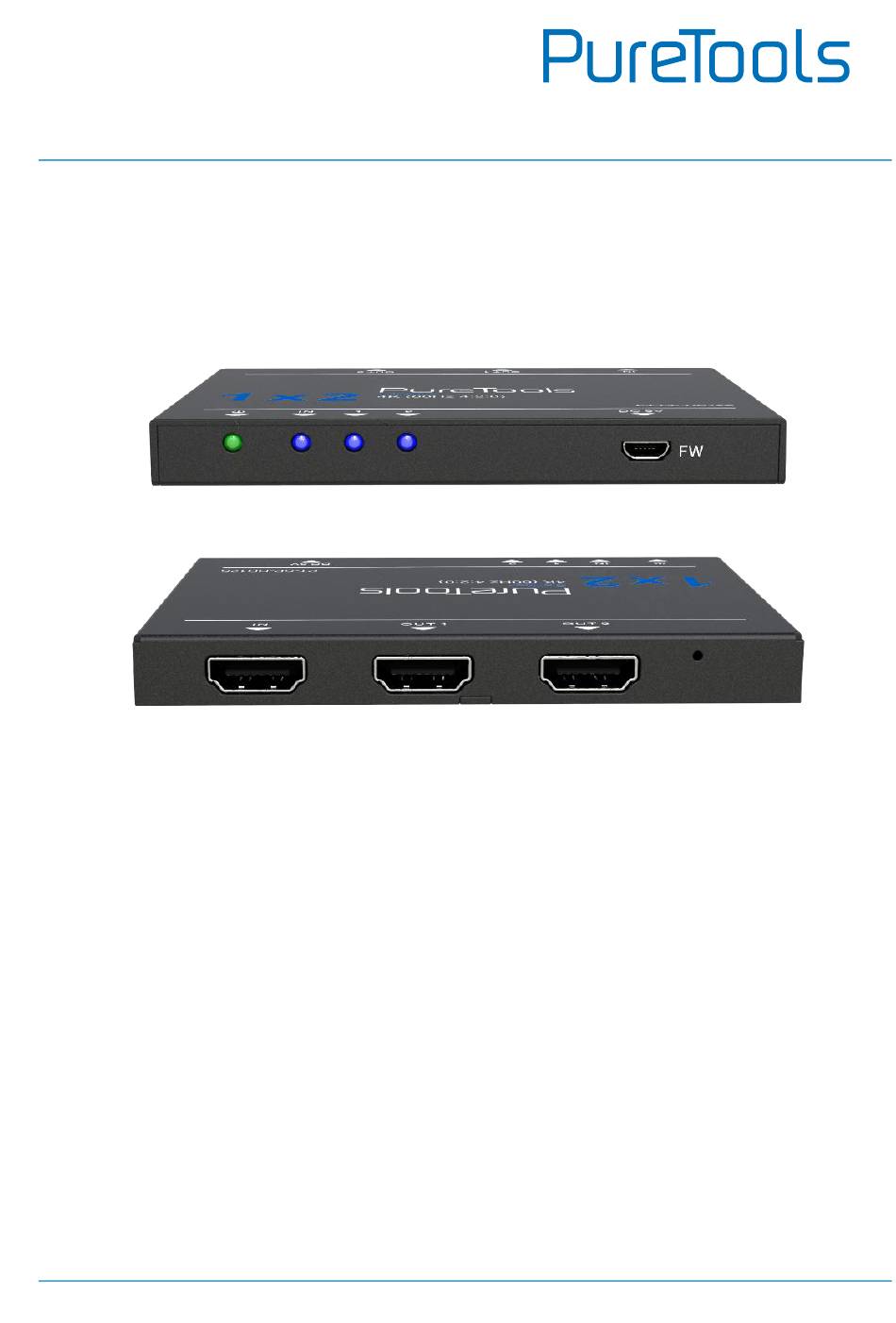

- Page 1 User Manual PT-SP-HD12S User Manual HDMI Splitter 1x2 4K (60Hz 4:2:0) Model PT-SP-HD12S Designed in Germany © 2017 PureLink GmbH All rights reserved. VersionV1.0...
-
Page 2: Fcc Statement
User Manual PT-SP-HD12S Preface Read this user manual carefully before using this product. Pictures shown in this manual are for reference only. Different model layouts and specifications are subject to the physical product. This manual is for operation instructions only, not for any maintenance usage. - Page 3 PT-SP-HD12S REACH | 1907/2006/EU ROHS | 2011/65/EU PureLink hereby declares that this product PureTools PT-SP-HD12S complies with Directives 1907/2006/EU und 2011/65/EU. EMC / LVD (Electro Magnetic Compatibility / Low Voltage Directive) PureLink GmbH hereby declares that this product PureTools PT-SP-HD12S complies with Directives 2014/30/EU and 2014/35/EU.
-
Page 4: Safety Precautions
User Manual PT-SP-HD12S SAFETY PRECAUTIONS To insure the best from the product, please read all instructions carefully before using the device. Save this manual for further reference. Unpack the equipment carefully and save the original box and packing material for possible future shipment ... -
Page 5: Package Content
PT-SP-HD12S Introduction to PT-SP-HD12S The PT-SP-HD12S is an ultra slim splitter. It provides a cost-effective mean of lossless duplication and distribution of a single HDMI source to 2 connected displays for simple, flexible and reliable content replication to multiple display devices supporting resolutions up to 4K@60Hz 4:2:0. -
Page 6: Panel Description
User Manual PT-SP-HD12S Panel Description DC 5V OUT 1 OUT 2 Name Description ① Power LED Illuminate green once powered on. Indicate the HDCP compliant status of the input signal OFF: No HDMI traffic (no emage) or abnormal link. ... -
Page 7: Specification
User Manual PT-SP-HD12S Specification Video Input Input (1) HDMI Input Connector (1) female type A HDMI 1.4 Video Output Output (2) HDMI Output Connector (2) female type A HDMI 1.4 Video General Max data rate 10.2Gbit/s Max Resolution 4Kx2K@60Hz 4:2:0 HDCP Compliant with HDCP1.4... -
Page 8: System Diagram
User Manual PT-SP-HD12S System Diagram HDMI IN: HDMI OUT: Projector Screen 4K Blu-ray HDTV... -
Page 9: After Sales Service
User Manual PT-SP-HD12S After-Sales Service If there appear some problems when running the product, please check and deal with the problems referring to this user manual. Any transport costs are borne by the users during the warranty. 1) Product Limited Warranty: This product will be free from defects in materials and workmanship for two years (The purchase invoice shall prevail). - Page 10 User Manual PT-SP-HD12S...
- Page 11 User Manual PT-SP-HD12S...
-
Page 12: Asking For Assistance
User Manual PT-SP-HD12S Asking for Assistance Technical Support: Phone: +49 5971 800299 - 0 Fax: +49 5971 800299 – 99 Technical Support Hours: 8:30 AM to 5:00 PM Monday thru Thursday 8:30 AM to 4:00 PM Friday Write to: PureLink GmbH Von-Liebig-Straße 10...
