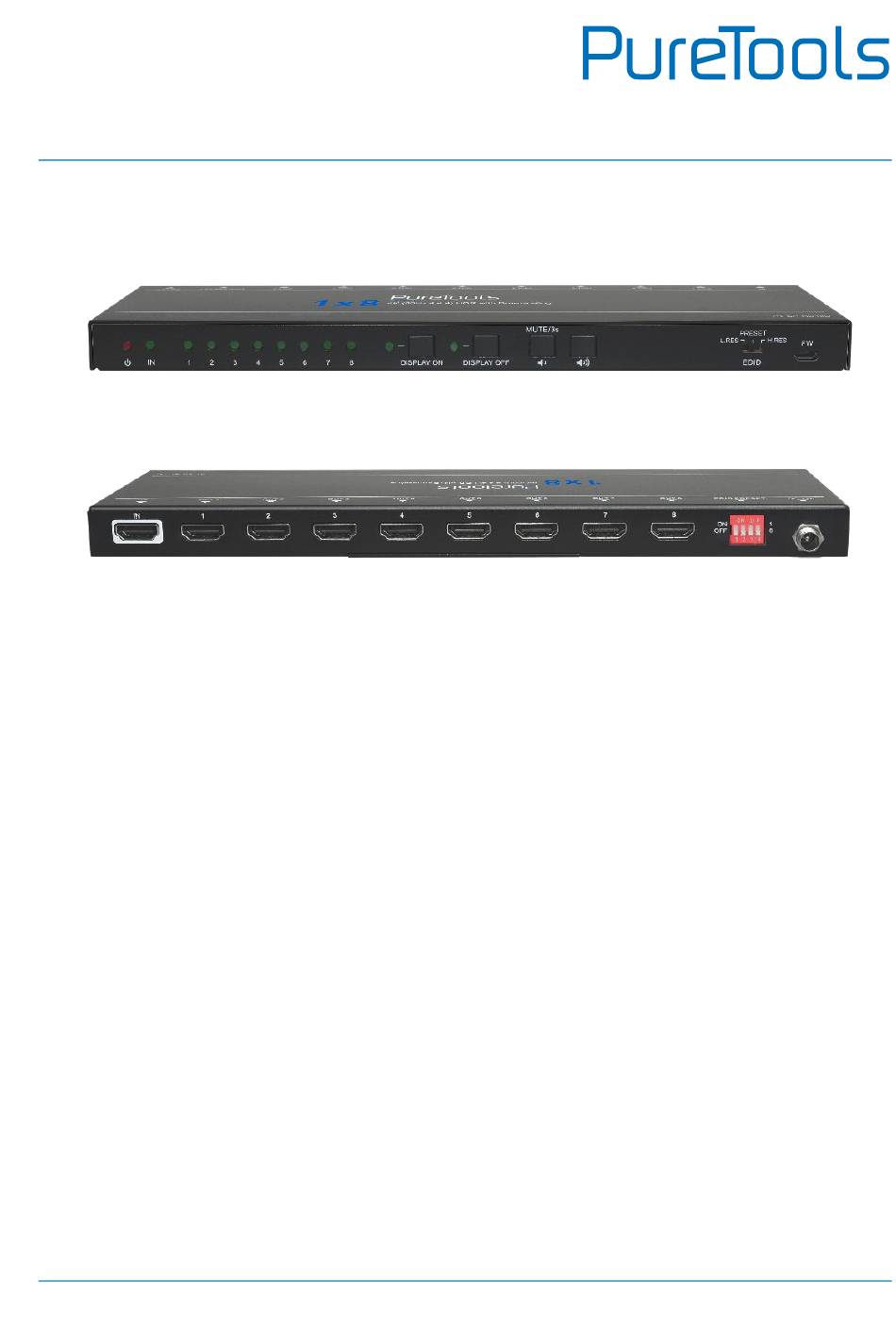

- Page 1 User Manual PT-SP-HD18D User Manual HDMI Splitter 1x8 4K (60Hz 4:4:4) HDR with Downscaling Model PT-SP-HD18D Designed in Germany © 2018 PureLink GmbH All rights reserved. V1.0...
-
Page 2: Fcc Statement
User Manual PT-SP-HD18D Preface Read this user manual carefully before using this product. Pictures shown in this manual are for reference only. Different model layouts and specifications are subject to the physical product. This manual is for operation instructions only, not for any maintenance usage. - Page 3 Directives 1907/2006/EU und 2011/65/EU. EMC / LVD (Electro Magnetic Compatibility / Low Voltage Directive) PureLink GmbH hereby declares that this product PureTools PT-SP-HD18D complies with Directives 2014/30/EU and 2014/35/EU. The full text of the EU Declaration of Conformity is available at the following Internet address:...
- Page 4 User Manual PT-SP-HD18D SAFETY PRECAUTIONS To ensure the best from the product, please read all instructions carefully before using the device. Save this manual for further reference. Unpack the equipment carefully and save the original box and packing material ...
-
Page 5: Product Introduction

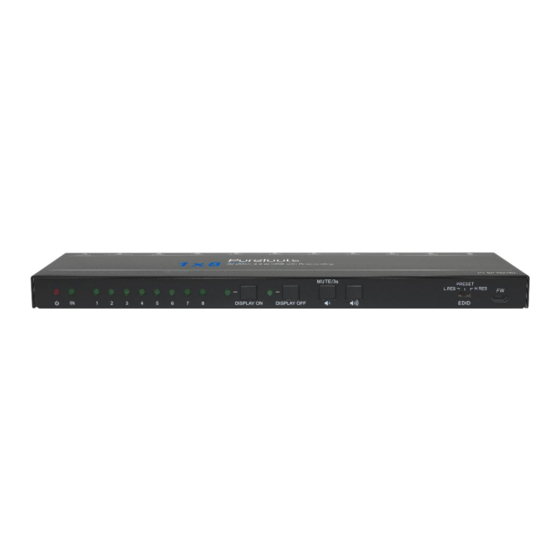

User Manual PT-SP-HD18D Product Introduction Thanks for choosing the HDMI 2.0 1x8 Splitter, which can distribute one HDMI input to eight outputs. The splitter supports HDMI video resolution up to 4K@60Hz 4:4:4, 1080P 3D and multichannel audio formats. Except passing EDID information from the display, there are multiple built-in EDID settings can be selected by the 4-pin DIP switch on the rear panel. -
Page 6: Packing List
User Manual PT-SP-HD18D Packing List 1x HDMI 2.0 1x8 Splitter 2x Mounting Ears with 4 Screws 4x Plastic Cushions 1x Power Adapter (12V DC 1A) 1x User Manual Note: Please contact your distributor immediately if any damage or defect in the components is found. - Page 7 User Manual PT-SP-HD18D ⑤ DISPLAY OFF Button and LED: Press the button to turn off displays. The LED blinks green when press this button to send control signal. ⑥ VOLUME DOWN/MUTE Button: Press the button to decrease the volume of displays.
-
Page 8: Edid Management
User Manual PT-SP-HD18D EDID Management The Extended Display Identification Data (EDID) is used by the source device to match its video resolution with the connected display. By default, the source device obtains its EDID from the first connected display. Meanwhile, since the displays... - Page 9 User Manual PT-SP-HD18D Switch Status Video Resolution Audio Format 0000 Obtains EDID from the display connected to the HDMI output port 1. 0001 Obtains EDID from the display connected to the HDMI output port 2. 0010 Obtains EDID from the display connected to the HDMI output port 3.
- Page 10 User Manual PT-SP-HD18D Copy the user defined EDID (such as EC_15_720P_LPCM.bin) to the “BOOTDISK” U-disk. Reopen the U-disk to check the filename “READY.TXT” whether automatically becomes “SUCCESS.TXT”, if yes, the user defined EDID was imported into the splitter and saved as its corresponding EDID ID successfully.
-
Page 11: Firmware Upgrade
User Manual PT-SP-HD18D Firmware Upgrade Please follow the below steps to upgrade firmware by the Micro-USB port: 1) Connect the splitter to the PC with USB cable. 2) Power on the splitter, and then the PC will automatically detect a U-disk named of “BOOTDISK”. -
Page 12: System Connection
User Manual PT-SP-HD18D System Connection The following diagram illustrates the typical input and output connection of the splitter: HDMI: HDBaseT: 4K@60 4:4:4 HDR Down Scaling 4K/60 Display HDMI 2.0 Tx 4K/60 Blu-ray 4K/60 Display 1080p Display HDMI 2.0 Rx 4K/60 Display... -
Page 13: Technical Specification
User Manual PT-SP-HD18D Technical Specification Video Input Input (1) HDMI Input Connector (1) Female type-A HDMI HDMI Input Resolution Up to 4Kx2K@60Hz 4:4:4 8bit HDMI Standard HDCP Version Supported Video Output Output (8) HDMI Output Connector (8) Female type-A HDMI... -
Page 14: After Sales Service
User Manual PT-SP-HD18D After-Sales Service If there appear some problems when running the product, please check and deal with the problems referring to this user manual. Any transport costs are borne by the users during the warranty. 1) Product Limited Warranty: The product will be free from defects in materials and workmanship for two years (The purchase invoice shall prevail). - Page 15 User Manual PT-SP-HD18D...
- Page 16 User Manual PT-SP-HD18D Asking for Assistance Technical Support: Phone: +49 5971 800299 - 0 Fax: +49 5971 800299 – 99 Technical Support Hours: 8:30 AM to 5:00 PM Monday thru Thursday 8:30 AM to 4:00 PM Friday Write to: PureLink GmbH Von-Liebig-Straße 10...
