Summary of Contents for PureTools PT-SP-HD14BT

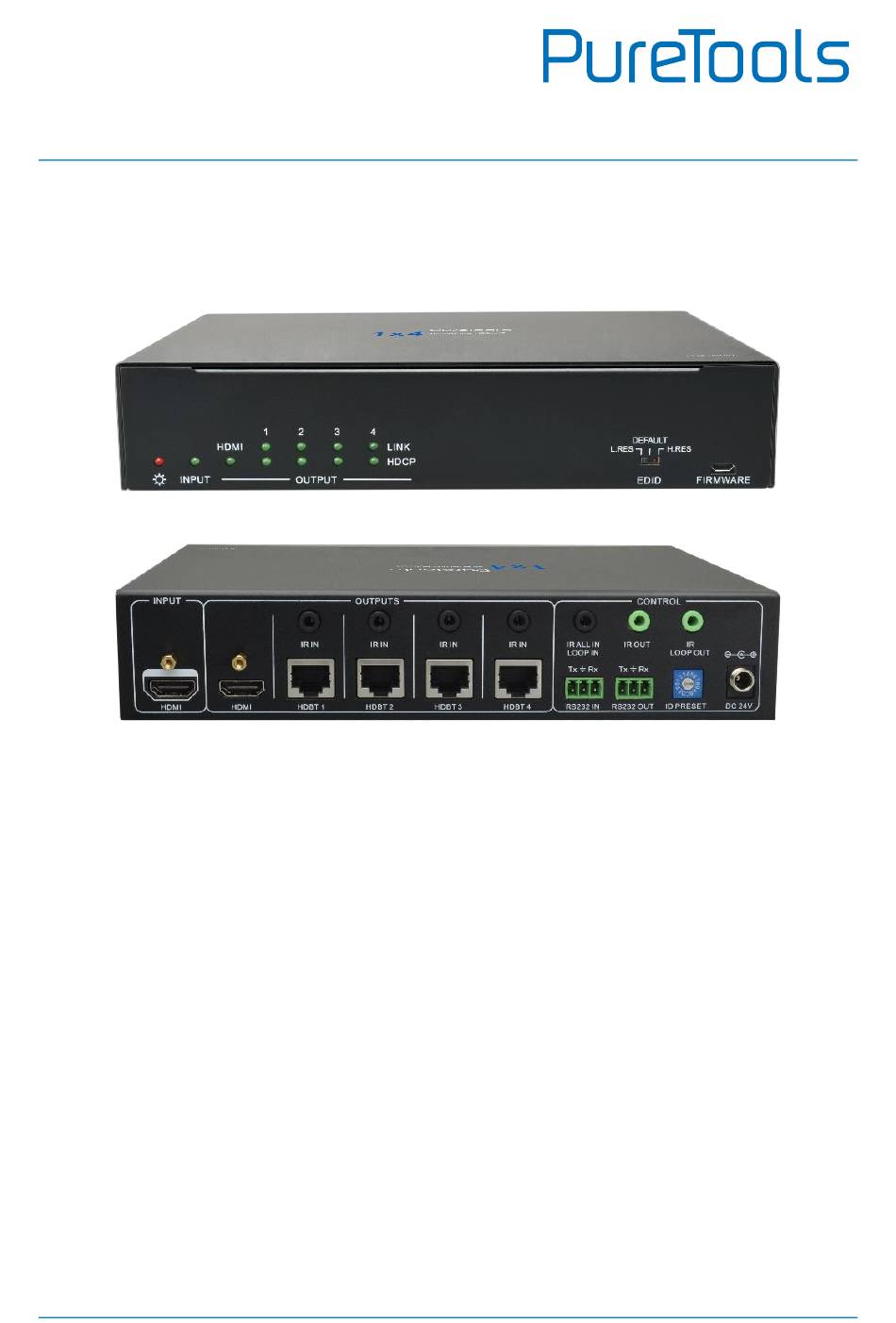

- Page 1 User Manual PT-SP-HD14BT User Manual Splitter 4K HDMI over HDBaseT Model PT-SP-HD14BT Designed in Germany © 2017 PureLink GmbH All rights reserved. VersionV1.0...
- Page 2 User Manual PT-SP-HD14BT Preface Read this user manual carefully before using the product. Pictures shown in this manual are for reference only. Different model layouts and specifications are subject to the physical product. This manual is for operation instructions only, not for any maintenance usage.
- Page 3 PT-SP-HD14BT REACH | 1907/2006/EU ROHS | 2011/65/EU PureLink hereby declares that this product PureTools PT-SP-HD14BT complies with Directives 1907/2006/EU und 2011/65/EU. EMC / LVD (Electro Magnetic Compatibility / Low Voltage Directive) PureLink GmbH hereby declares that this product PureTools PT-SP-HD14BT complies with Directives 2014/30/EU and 2014/35/EU.
- Page 4 User Manual PT-SP-HD14BT SAFETY PRECAUTIONS To insure the best from the product, please read all instructions carefully before using the device. Save this manual for further reference. Unpack the equipment carefully and save the original box and packing material ...
-
Page 5: Table Of Contents
User Manual PT-SP-HD14BT Contents 1. Product Introduction ........................6 1.1 Features ..........................6 1.2 Package List ........................7 2. Panel Description ........................8 2.1 HDBaseT Splitter Front Panel ..................8 2.2 HDBaseT Splitter Rear Panel ..................9 3. System Connection ........................11 3.1 Usage Precautions ...................... -
Page 6: Product Introduction
User Manual PT-SP-HD14BT 1. Product Introduction Thanks for choosing this HDBaseT 1x4 Splitter Kit! This device accepts a single HDMI input and splits it into four HDBaseT outputs. The splitter is designed with an HDMI loop out which is intended to cascade to additional units. It supports video resolutions up to 4K@60Hz and all HDMI audio formats. -
Page 7: Package List
User Manual PT-SP-HD14BT 1.2 Package List 1x HDBaseT 1x4 Splitter 2x Mounting Ears with 4 Screws 4x Circular Plastic Cushions 1x 3-pin to 3-pin RS232 Cable (for RS232 loop out cascading) 1x 3.5mm Audio Cable (for IR loop out cascading) ... -
Page 8: Panel Description
User Manual PT-SP-HD14BT 2. Panel Description 2.1 HDBaseT Splitter Front Panel DEFAULT HDMI LINK L.RES H.RES HDCP INPUT OUTPUT EDID FIRMWARE Name Description ① Power LED The LED illuminates red when power is applied. ② Input LED The LED illuminates green when there is a HDMI source input. -
Page 9: Hdbaset Splitter Rear Panel
User Manual PT-SP-HD14BT 2.2 HDBaseT Splitter Rear Panel INPUT OUTPUTS CONTROL IR IN IR IN IR IN IR IN IR OUT HDMI HDMI HDBT 1 HDBT 2 HDBT 3 HDBT 4 RS232 IN RS232 OUT ID PRESET DC 24V Name... - Page 10 User Manual PT-SP-HD14BT Name Description RS232 IN: 3-pin RS232 connector. Connect to the PC by a 3-pin to DB9 cable. RS232 ④ RS232 OUT: If cascading multiple units, use the 3-pin to Control 3-pin cable to connect the output to the RS232 IN on the next device in the chain.
-
Page 11: System Connection
User Manual PT-SP-HD14BT 3. System Connection 3.1 Usage Precautions Verify all components and accessories included before installation. System should be installed in a clean environment with proper temperature and humidity (see page 22 for limits). All of the power switches, plugs, sockets and power cords should be insulated ... -
Page 12: System Diagram
User Manual PT-SP-HD14BT 3.2 System Diagram The following diagram illustrates typical input and output connections that can be utilized with splitter: HDMI: HDBT: RS232: INPUT OUTPUTS CONTROL IR IN IR IN IR IN IR IN IR OUT HDMI HDMI HDBT 1... -
Page 13: Cascading
User Manual PT-SP-HD14BT 3.3 Cascading The splitter supports cascade connection to distribute video signal to multiple video displays. Use the following connection diagram as a guide for cascading multiple units. Note that each unit must have a unique ID if using RS232 control. -
Page 14: Ir Control
User Manual PT-SP-HD14BT 4. IR Control The IR receivers and emitters can be connected to the system to allow for IR control of remote devices. The bidirectional IR feature provides the two-way control either for the source or display device(s). Use the following sample connection diagrams to connect for IR remote control. -
Page 15: Controlling The Display Device By Ir All In
User Manual PT-SP-HD14BT 4.2 Controlling the Display Device by IR ALL IN The IR ALL IN port of the splitter can receive all IR signals from remotes to send to control displays. Connect an IR receiver to IR ALL IN port of the splitter, and then connect four IR emitters to IR OUT port on HDBaseT receivers. -
Page 16: Controlling The Source Device
User Manual PT-SP-HD14BT 4.3 Controlling the Source Device The IR OUT port of the splitter can send all IR signals to control source device. Connect four IR receivers to IR IN ports on HDBaseT receivers, and then connect an IR emitter to IR OUT port of the splitter. -
Page 17: Rs232 Control
User Manual PT-SP-HD14BT 5. RS232 Control The splitter and compatible receivers features RS232 ports to transmit RS232 signals from computer to control far-end third-party devices by using 3-pin to DB9 cable and a RS232 control software, such as CommWatch. Compatible receivers must be able to communicate at 2400, 4800, 9600, 19200, 38400, 57600, or 115200 baud. - Page 18 User Manual PT-SP-HD14BT The interface of the control software is shown as below: 9600 baud rate, 8 data bits, 1 stop bit, no parity bits Parameter configuration area Monitoring area, indicates if the command sent works. Command sending area Please set the parameters of COM number, bound rate, data bit, stop bit and the parity bit correctly, and then commands are ready to send in Command Sending Area.
-
Page 19: Rs232 Command Format
User Manual PT-SP-HD14BT 5.2 RS232 Command Format Each unit in cascading system must have a unique ID if using RS232 control. Through the DIP switch ID PRESET to set their ID for distinguishing. For example, the unit ID of the first splitter is set as 0, and then the second is set as 1 and so on. - Page 20 User Manual PT-SP-HD14BT Switching on/off HDBaseT Outputs The HDBaseT outputs can be controlled by sending commands. Connect the PC to the RS232 IN port, and then according to the below steps to switch on/off HDBaseT outputs. Take the unit ID of 2 for example.
-
Page 21: Edid Management
User Manual PT-SP-HD14BT 6. EDID Management The Extended Display Identification Data (EDID) is used by the source device to match its video resolution with that of the connected display. By default, the source device obtains its EDID from the first connected display. However, since the displays with different capabilities can be connected to the splitter, the EDID DIP switch can be used to set the EDID to a fixed value. -
Page 22: Technical Specification
User Manual PT-SP-HD14BT 7. Technical Specification Video Input (1) HDMI Input Input Connector (1) Female type A HDMI Input Video Signal HDMI HDMI Input Resolution Up to 4Kx2K@60Hz 4:2:0 Video Output (1) HDMI; (4) HDBT Output Output Connector (1) Female type A HDMI; (4) RJ45... - Page 23 User Manual PT-SP-HD14BT General AC Adapter Input Power 100V~240V AC, 50/60Hz Input Power 24V DC 2.71A Power Consumption 45W (Max) Dimension (W*H*D) 220mm x 44mm x 148mm Net Weight 725g Note: Please adopt quality CAT Ethernet cable compliant with CAT6e or higher...
-
Page 24: Panel Drawing
User Manual PT-SP-HD14BT 8. Panel Drawing 220 mm... -
Page 25: Troubleshooting & Maintenance
User Manual PT-SP-HD14BT 9. Troubleshooting & Maintenance Problems Potential Causes Solutions The connecting cables may Check whether the cables not be connected correctly are connected correctly Colour losing or no or it may be broken. and in working condition. video signal output in... -
Page 26: After-Sales Service
User Manual PT-SP-HD14BT 10. After-Sales Service If there appear some problems when running the product, please check and deal with the problems referring to this user manual. Any transport costs are borne by the users during the warranty. 1) Product Limited Warranty: The product will be free from defects in materials and workmanship for two years (The purchase invoice shall prevail). - Page 27 User Manual PT-SP-HD14BT...
- Page 28 User Manual PT-SP-HD14BT Asking for Assistance Technical Support: Phone: +49 5971 800299 - 0 Fax: +49 5971 800299 – 99 Technical Support Hours: 8:30 AM to 5:00 PM Monday thru Thursday 8:30 AM to 4:00 PM Friday Write to: PureLink GmbH Von-Liebig-Straße 10...
