Summary of Contents for PureTools PT-SP-DP12

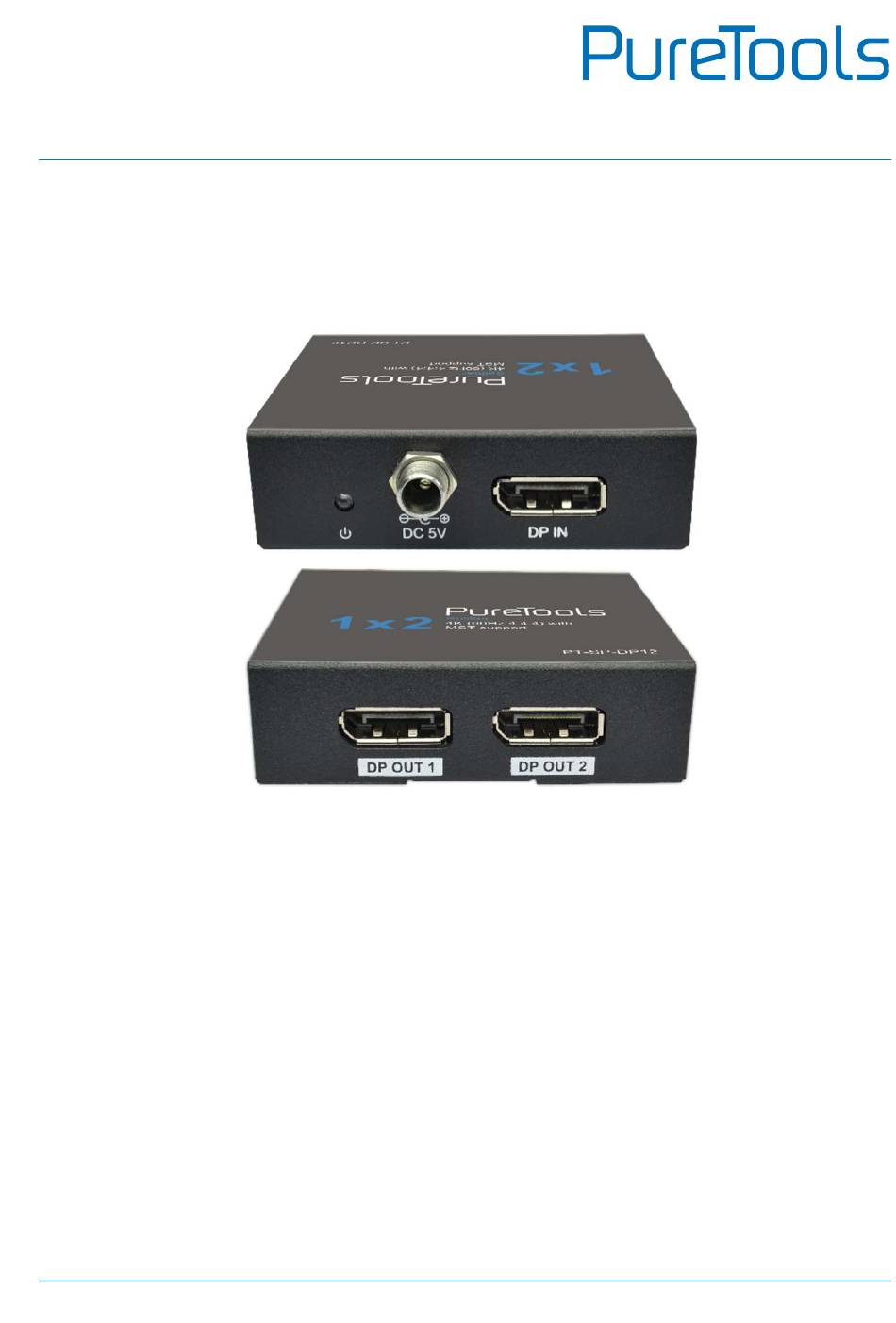

- Page 1 User Manual PT-SP-DP12 User Manual 4K 1x2 DisplayPort Splitter Model PT-SP-DP12 Designed in Germany © 2019 PureLink GmbH All rights reserved. V1.0...
-
Page 2: Fcc Statement
User Manual PT-SP-DP12 Preface Read this user manual carefully before using this product. Pictures shown in this manual are for reference only. Different model layouts and specifications are subject to the physical product. This manual is for operation instructions only, not for any maintenance usage. - Page 3 PT-SP-DP12 REACH | 1907/2006/EU ROHS | 2011/65/EU PureLink hereby declares that this product PureTools PT-SP-DP12 complies with Directives 1907/2006/EU und 2011/65/EU. EMC / LVD (Electro Magnetic Compatibility / Low Voltage Directive) PureLink GmbH hereby declares that this product PureTools PT-SP-DP12 complies with Directives 2014/30/EU and 2014/35/EU.
-
Page 4: Safety Precautions
User Manual PT-SP-DP12 SAFETY PRECAUTIONS To ensure the best from the product, please read all instructions carefully before using the device. Save this manual for further reference. Unpack the equipment carefully and save the original box and packing material for ... -
Page 5: Product Introduction
User Manual PT-SP-DP12 Product Introduction Thanks for choosing the 4K 1x2 DisplayPort Splitter, which can distribute one DP input to two outputs. The splitter supports DP video resolution up to 4K@60Hz 4:4:4 and multi-stream transport (MST) feature. Besides, SST mode is used for both connected displays show the same contents. -
Page 6: Panel Description
User Manual PT-SP-DP12 Panel Description DC 5V ① POWER LED: The LED illuminates red when power is applied. DC 5V: DC barrel port to connect an AC power adapter. ② INPUT: DisplayPort input port to connect DP video source device. -
Page 7: Technical Specification
User Manual PT-SP-DP12 Technical Specification Video Input Input (1) DP IN Input Connector (1) DP port DP Input Resolution Up to 4K@60Hz 4:4:4 DP Standard 1.2a HDCP Version Video Output (2) DP OUT Output Output Connector (2) DP port DP Output Resolution Up to 4K@60Hz 4:4:4 1.2a... -
Page 8: System Connection
User Manual PT-SP-DP12 System Connection The following diagram illustrates the typical input and output connection of the splitter: Under the MST mode Note: Output resolution: 1.two output ports support 4K@30Hz (Max) simultaneously; 2.one output port supports 4K@60 Hz, another output port only supports... - Page 9 User Manual PT-SP-DP12 Under the SST mode Note: Only under the SST mode, SPDIF (192K 7.1ch) audio can be used. Under the SST mode, When GPU as input source device, only one of output port supports audio. When MAC Computer as input source device, both of output ports support audio.
-
Page 10: Panel Drawing
User Manual PT-SP-DP12 Panel Drawing DC 5V Splitter 4K (60Hz 4:4:4) with MST support PT-SP-DP12 71.00 mm... -
Page 11: After Sales Service
User Manual PT-SP-DP12 After-Sales Service If there appear some problems when running the product, please check and deal with the problems referring to this user manual. Any transport costs are borne by the users during the warranty period. 1) Product Limited Warranty: The product will be free from defects in materials and workmanship for two years (The purchase invoice shall prevail). -
Page 12: Asking For Assistance
User Manual PT-SP-DP12 Asking for Assistance Technical Support: Phone: +49 5971 800299 - 0 Fax: +49 5971 800299 – 99 Technical Support Hours: 8:30 AM to 5:00 PM Monday thru Thursday 8:30 AM to 4:00 PM Friday Write to: PureLink GmbH Von-Liebig-Straße 10...
