5.

TECHNICAL DESCRIPTION

(1)
(2)
(3)
(4)
(5)
(14)
(15)

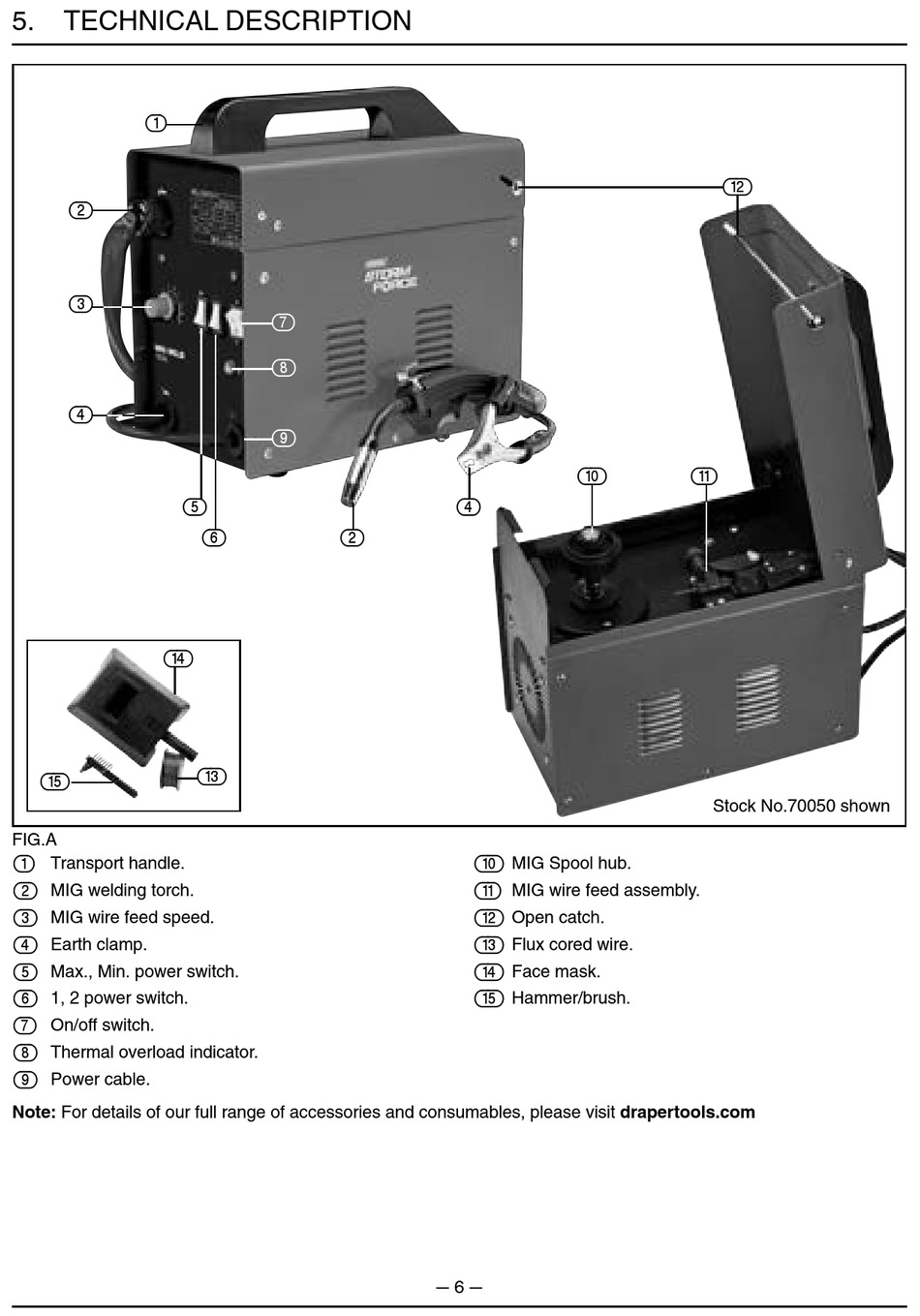

FIG.A
(1) Transport handle.
(2) MIG welding torch.
(3) MIG wire feed speed.
(4) Earth clamp.
(5) Max., Min. power switch.
(6) 1, 2 power switch.
(7) On/off switch.
(8) Thermal overload indicator.
(9) Power cable.
Note: For details of our full range of accessories and consumables, please visit drapertools.com
(7)
(8)
(9)
(6)
(2)
(13)
(10)
(4)
(10) MIG Spool hub.
(11) MIG wire feed assembly.
(12) Open catch.
(13) Flux cored wire.
(14) Face mask.
(15) Hammer/brush.
– 6 –
(12)
(11)
Stock No.70050 shown
