Summary of Contents for Monoprice SB-600

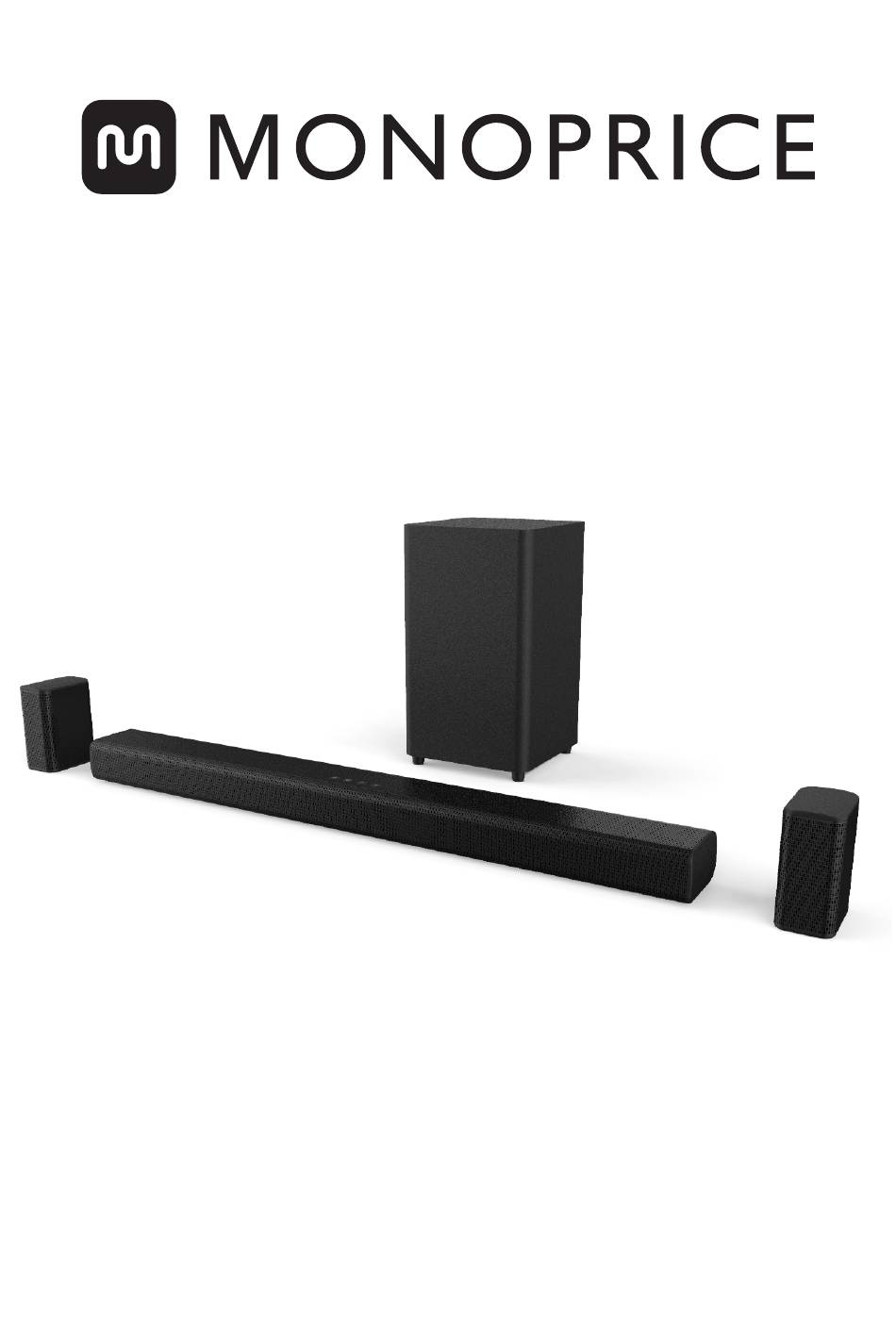

- Page 1 5.1.2 Dolby Atmos® Soundbar SB-600 P/N 42034 Instruction Manual...
-
Page 2: Table Of Contents
Contents Important Safety Instructions ......................3 Safety .........................................3 Warning ........................................4 What’s in the Box ..........................6 Identifying the Parts ........................7 Main Unit ........................................7 Wireless Subwoofer ....................................8 Wireless Surround ....................................8 Remote Control .....................................8 Preparations ............................. 9 Prepare the Remote Control ................................9 Replace the Remote Control Battery .............................9 Placement and Mounting ..................................9 Wall Mounting (for unit) ..................................9... -
Page 3: Important Safety Instructions
1. Important Safety Instructions the third prong is provided for your safety. CAUTION If the provided plug does not fit into your RISK OF ELECTRIC SHOCK outlet, consult an electrician for replacement DO NOT OPEN of the obsolete outlet. Protect the power cord from being walked on CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). -
Page 4: Warning
Caution: AC voltage: This symbol indicates that the rated voltage marked with the symbol is AC voltage. Use of controls or adjustments or performance of procedures other than those DC voltage: This symbol indicates that the described herein, may result in hazardous rated voltage marked with the symbol is DC voltage. - Page 5 FCC INFORMATION ： Déclaration de la FCC : NOTE: This equipment has been tested and found Remarque: cet équipement a été soumis à des essais to comply with the limits for a Class B digital device, et a été déclaré conforme aux limites stipulées pour pursuant to Part 15 of the FCC Rules.
-
Page 6: What's In The Box
2. What’s in the Box Remote Control / Main Unit AC Power Cord x 2 AAA Batteries x 2 3.5mm to 3.5mm Wireless Subwoofer Wireless Surround Audio Cable HDMI Cable Adapter Cable Surround Speaker Cable Wall Bracket Wall mounting Screw Wall Bracket (for main unit) (for Surround) -
Page 7: Identifying The Parts
3. Identifying the Parts 3.1 Main Unit A R C Display Window Show the current status. Remote Control Sensor Receive signal from the remote control. Screws Remove the screws then install the wall mounting screws into the back of the unit. (ON/OFF) button Switch the unit between ON and Standby mode. -
Page 8: Wireless Subwoofer
3.2 Wireless Subwoofer AC~ Socket Connect to power. PAIR button Press activate the pairing function between the main unit and the subwoofer. Subwoofer's PAIR Indicator Light stops blinking once the Subwoofer is paired with the Soundbar. 3.3 Wireless Surround Surround's PAIR Indicator Light stops blinking once the Subwoofer is paired with the Soundbar. -
Page 9: Preparations
4. Preparations • Remove the battery from the remote control when not in use for a long period of time, as corrosion or battery leakage may occur 4.1 Prepare the Remote Control and result in physical injury, and/or property The provided remote control allows the unit to be damage, and/or fire. -
Page 10: Wall Mounting (For Surround)
4.5 Wall Mounting (for surround) Do not overtighten screws. Keep this instruction manual for future • The (R /L) surround speakers can be fixed reference. to the wall using the included wall mount Use an electronic stud finder to check the package. -
Page 11: Hdmi Connection
5.2 HDMI Connection Use an HDMI cable (not included) to connect the soundbar's HDMI IN (1 or 2) socket to Some 4K HDR TVs require the HDMI input or your external devices (e.g. games consoles, picture settings to be set for HDR content DVD players and blu-ray). -
Page 12: Use The Aux Socket
5.5 Use the AUX Socket • Soundbar Connect the mains cable to the AC~ socket of Use a 3.5mm to 3.5mm audio cable (included) the main unit and then into a mains socket. to connect the TV’s or external audio device headphone socket to the AUX socket on the •... -
Page 13: Basic Operation
Press and hold the PAIR button on the • Automatic Power Off Function Subwoofer or Surround for a few seconds. The unit automatically turns to Standby » The Pair indicator on the Subwoofer or mode after about 15 minutes if the TV or the Surround will rapidly blink. -
Page 14: Av Sync (Set The Audio Delay)
The unit may not be able to decode all digital Activate your Bluetooth device and select the audio formats from the input source. In this search mode. "SB-600" will appear on your case, the unit will mute. This is NOT a defect. Bluetooth device list. -
Page 15: Listen To Music From Bluetooth Device
9. USB Operation Select "SB-600" in the pairing list. After audio prompt, the system is successfully connected and and the display panel shows "BT" . Insert the USB device. Play music from the connected Bluetooth device. To disconnect the Bluetooth function, you can : Switch to another function on the unit. -
Page 16: Troubleshooting
10. Troubleshooting TV has display problem while viewing To keep the warranty valid, never try to repair the HDR content from HDMI source. system yourself. If you encounter problems when using this unit, check the following points before • Some 4K HDR TVs require the HDMI input or requesting service. -
Page 17: Specifications
11. Specifications • Soundbar • Wireless Subwoofer Power Supply 100-240V~ 50/60Hz, Power Supply 100-240V~ 50/60Hz Power Consumption 30 W / < 0.5 W (StandBy) Power Consumption 80 W / < 0.5 W (StandBy) 25W x 2 (Left /Right) Output Power 180 W 50W (Center) MAX Output Power...
