CAMSO X4S
FOR ALL-TERRAIN VEHICLES
AND SIDE-BY-SIDE VEHICLES
M N
2020

Advertisement

loading
Need help?

Need help?

Do you have a question about the X4S and is the answer not in the manual?

Questions and answers

Related Manuals for CAMSO X4S

Summary of Contents for CAMSO X4S

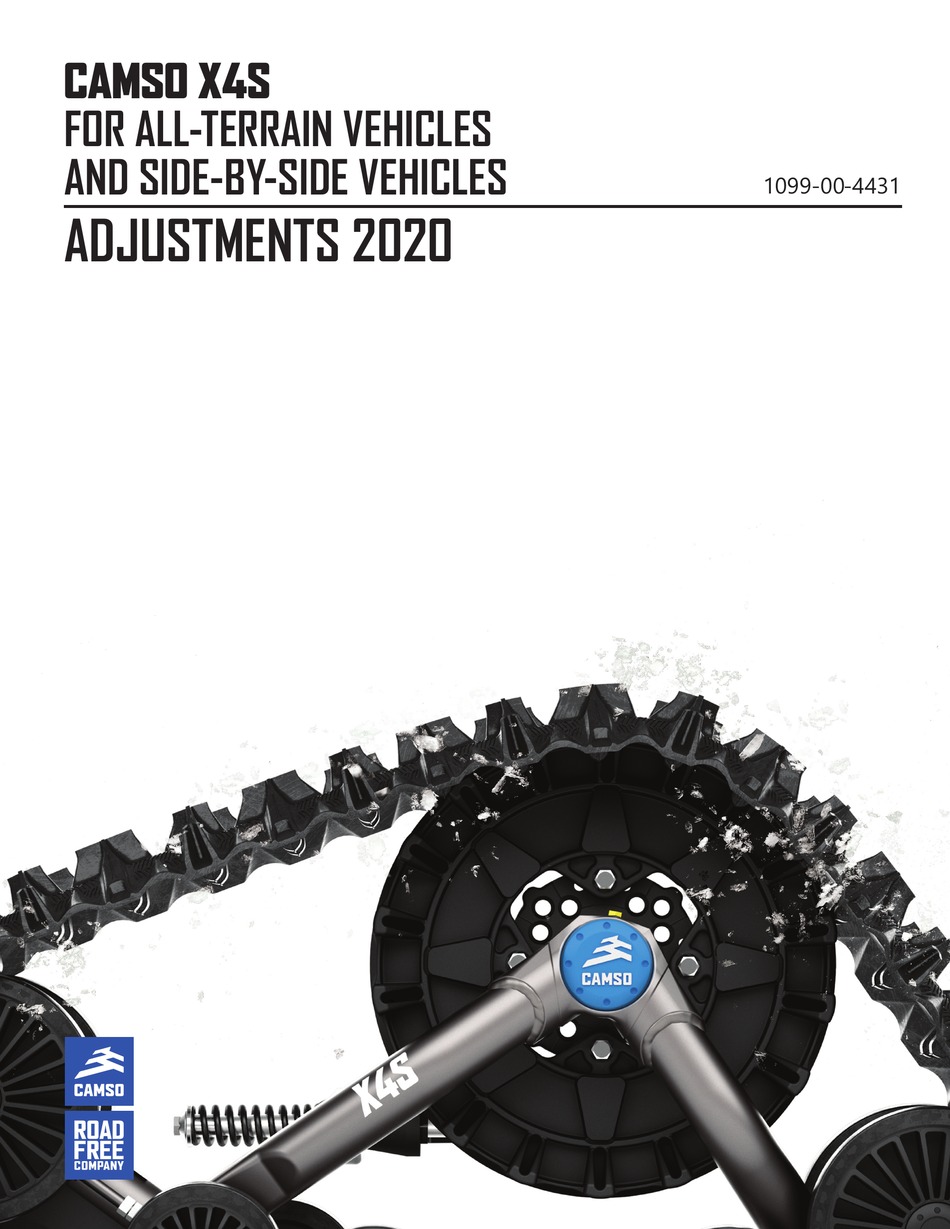

  • Page 1 CAMSO X4S FOR ALL-TERRAIN VEHICLES AND SIDE-BY-SIDE VEHICLES 2020...
  • Page 2 Incorrect adjustments can decrease the performance of the systems and result in premature wear or breakage of certain components. 1099-00-4431 - VERSION A are trademarks of Camso inc. ® All rights reserved. ©2019 Camso inc. Printed in Canada.
  • Page 3 The serial number’s last digit (0, 1, 2, 3) indicates the mounting position on the vehicle. Lay out the track systems accordingly. Refer to Figure 1 and Figure 2. NOTE: If the serial numbers on the track systems do not match, contact your authorized Camso dealer / distributor.
  • Page 4 ADJUSTMENTS ADJUSTMENTS NOTE: To make the following adjustments, position NOTE : Before each measurement, temporarily apply the vehicle on a flat and level surface. light pressure to the front of the track to make sure that it stays flat on the ground. ANGLE OF ATTACK - FRONT SYSTEMS •...
  • Page 5 ADJUSTMENTS NOTE: Once the angle of attack on the front systems is set, verify once again to confirm the adjustment. Figure 8 • Loosen nut (3) compressing stabilizing rod spring. See Figure 9. Figure 7 BASIC TUNING (Front Track Systems) •...
  • Page 6 ADJUSTMENTS • Loosen anti-rotation bracket bolts (3) to allow the anti-rotation retainer (4) to rotate on its axis. See Figure 14. Figure 11 • IMPORTANT: Double-check minimum distance between nut and stabilizing Figure 14 arm guide. Re–adjust as needed. Figure 12. •...
  • Page 7 ADJUSTMENTS ALIGNMENT • Re-tighten anti-rotation bracket bolts (3) to 50 N•m [37 lb-ft] of torque. See Figure 17. Parallelism must be adjusted with the ATV on the ground, driving the vehicle forward about 3 meters [10 ft.] and measuring toe–in distance. Refer to Figure 18.
  • Page 8 ADJUSTMENTS Adjustment Method To adjust the vehicle’s steering system, first loosen coupling rod nuts (1), then screw or unscrew the coupling rod (2) an equal number of revolutions on both sides of the vehicle. Re- tighten nuts when adjustment is complete. See Figure 19 or Figure 20.
  • Page 9 ADJUSTMENTS Measure A: Measure the distance inside the front Measure B: Measure the distance inside the rear Ø202 mm wheels on the front Track Systems. Ø202 mm wheels on the front Track Systems. See See figures 21, 22 and 23. figures 24, 25 and 26.

  • Page 10: Track Tension

    ADJUSTMENTS TRACK TENSION NOTE: The track tension testing tool, shown below in Figure 29, can be purchased through an authorized Camso dealer. Part #2000-00-3125. WARNING The tensioner assembly bolt must never be loosened while adjusting the track tension. This bolt is designed for assembly and alignment of the tensioner with the frame.

  • Page 11: Component Installation

    CAMSO X4S TRACK SYSTEMS INSTALLATION AND ADJUSTMENT CHECKLIST ** Steps in this checklist are laid out in logical order. They should be performed in succession to optimize the track system installation on the vehicle. ** 1 - COMPONENT INSTALLATION A - INSTALLATION OF REAR ANCHOR BRACKETS * Refer to INSTALLATION GUIDELINES section entitled "Rear track systems"...
