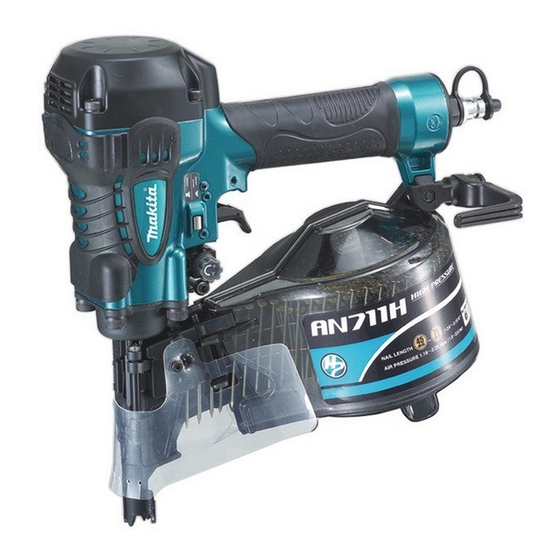

Makita AN711H Instruction Manual

Construction nailer
Hide thumbs Also See for AN711H:
Table of Contents

Advertisement

Quick Links

Download this manual
INSTRUCTION MANUAL
Construction Nailer
AN711H
009568
WARNING:
For your personal safety, READ and UNDERSTAND before using.
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
1

Advertisement

Table of Contents
loading

Related Manuals for Makita AN711H

Summary of Contents for Makita AN711H

  • Page 1 INSTRUCTION MANUAL Construction Nailer AN711H 009568 WARNING: For your personal safety, READ and UNDERSTAND before using. SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.

  • Page 2: Specifications

    2 “x 4” housing. EC Declaration of Conformity ENG102-3 Makita Corporation responsible Noise manufacturer declare that the following Makita The typical A-weighted noise level determined according machine(s): to EN792: Designation of Machine: Construction Nailer Sound pressure level (L ) : 89 dB(A) Model No./ Type: AN711H...

  • Page 3: Important Safety Instructions

    Director Rushing the job or forcing the tool is dangerous. • Makita Corporation Handle the tool carefully. Do not operate when 3-11-8, Sumiyoshi-cho, under the influence of alcohol, drugs or the like. Anjo, Aichi, JAPAN General Tool Handling Guidelines: •...
  • Page 4 • − fitting transportation safety systems e.g. on Makita. vehicles and wagons. Ask Makita's Authorized service centers for • Do not permit those uninstructed to use the tool. periodical inspection of the tool. • Make sure no one is nearby before nailing. Never To maintain product SAFETY and RELIABILITY, •...

  • Page 5: Installation

    SAVE THESE INSTRUCTIONS. CAUTION: Low air output of the compressor, or a long or • smaller diameter air hose in relation to the nailing INSTALLATION frequency may cause a decrease in the driving Selecting compressor capability of the tool. Lubrication (L/min) 004295 To insure maximum performance, install an air set (oiler,...

  • Page 6: Loading The Nailer

    Use the nose adapter 1. Adjuster CAUTION: Always disconnect the hose before installing or • removing the nose adapter. 1. Hole 2. Protrusion 3. Nose adapter 009575 1. Too deep 2. Flush 3. Too shallow 009577 If you like to protect the surface of workpiece, attach the nose adapter of contact element.

  • Page 7: Operation

    of the tool may result. 1. Trigger 2. Workpiece 1. Adjustfit 3. Contact element 2. Change plate 3. Arrow 009570 009572 Pull the trigger first and then place the contact Place the nail coil over the coil support plate. Uncoil element against the workpiece.
  • Page 8 Use hardened nails only for steel plate. When nailing, hold the tool so that it stands upright • • Using other purposed nails may cause serious to the driving surface. injuries. Slanted nailing may cause concrete fragments to When nailing, hold the tool so that it stands upright fly off or nails to strike back, causing serious •...

  • Page 9: Maintenance

    Tear off the output sheet in the direction of the arrow 1. Cap when using the sheet collated nails. MAINTENANCE CAUTION: Always disconnect the air hose from the tool before • attempting to perform inspection or maintenance. Jammed nailer 009582 Storage When not in use, the nailer should be stored in a warm and dry place.
  • Page 10 Only use accessory or attachment for its stated purpose. If you need any assistance for more details regarding these accessories, ask your local Makita Service Center. Nails • Air hoses • Safety goggles •...
  • Page 12 Makita Corporation Anjo, Aichi, Japan 884846C226...
