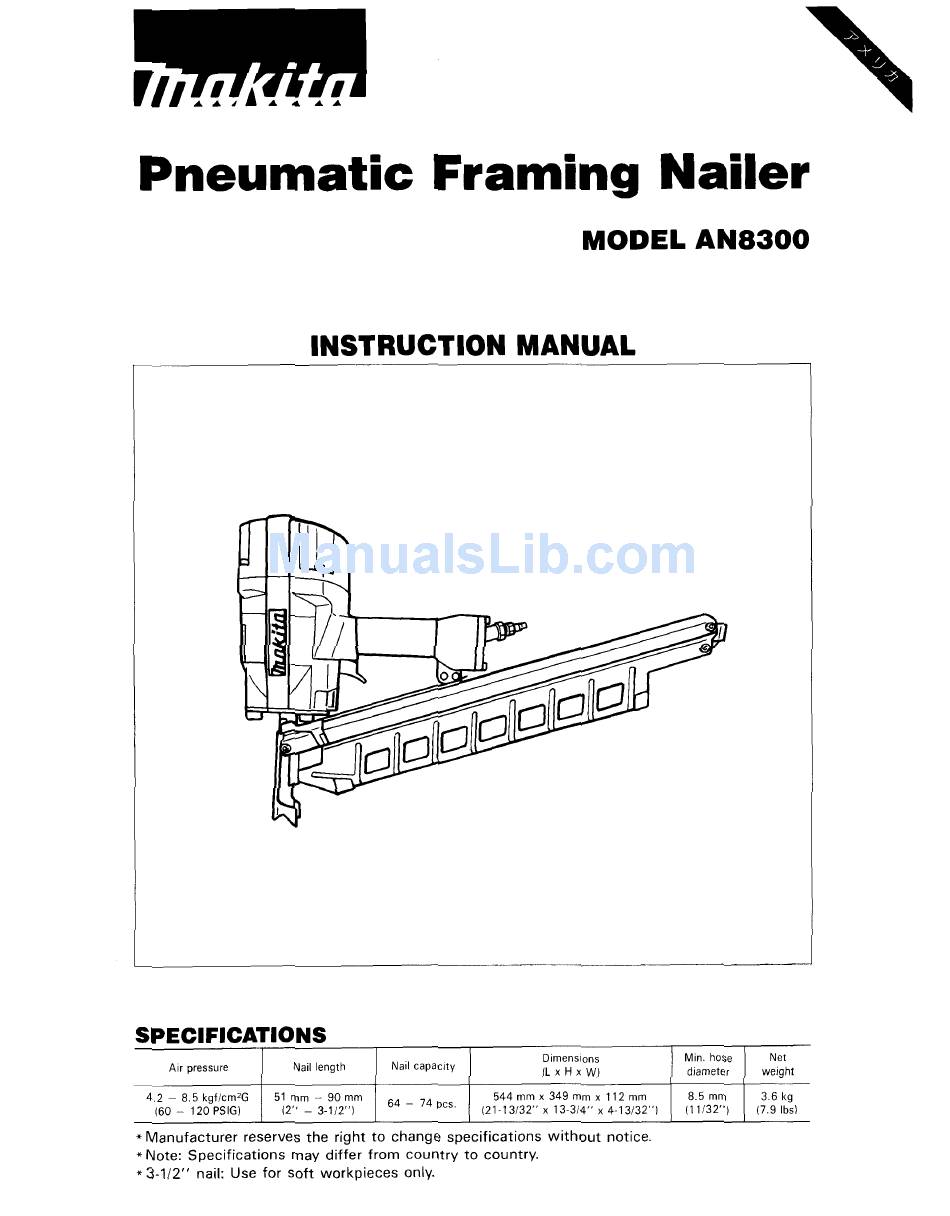

Pneumatic Framing Nailer
Dimensions
Min hose
Air pressure
Nail length
Nail capacity
IL
x
H
x
W l
diameter
MODEL AN8300
Net
weight
INSTRUCTION MANUAL
4.2
~
8.5 kgf1cmZG
(60
-
120
PSIG)
8.5
mm
3.6 kg
51 mm
-
90 mm
64
-
74
pes,
5 4 4 m m x 3 4 9 m m x 1 1 2 m m
(2"
-
3-112")
(21-13132"
x
13-314"
x
4-13/32',)
(11132")
(7.9 lbsl
* Manufacturer reserves the right to change specifications without notice.
*Note: Specifications may differ from country to country.
*3-1/2" nail: Use for soft workpieces only.
Advertisement
Related Manuals for Makita AN8300
Summary of Contents for Makita AN8300
- Page 1 Pneumatic Framing Nailer MODEL AN8300 INSTRUCTION MANUAL Dimensions Min hose Air pressure Nail length Nail capacity diameter weight 90 mm 5 4 4 m m x 3 4 9 m m x 1 1 2 m m 3.6 kg 8.5 kgf1cmZG...
- Page 2 IMPORTANT SAFETY TOOL USE INSTRUCTIONS WARNING: WHEN USING THIS TOOL, BASIC SAFETY PRECAUTIONS SHOULD ALWAYS BE FOLLOWED TO REDUCE THE RISK OF PERSONAL INJURY, INCLUDING THE FOLLOWING: READ ALL INSTRUCTIONS. For personal safety and proper operation and main- tenance of the tool, read this instruction manual carefully before using the tool.
- Page 3 General Tool Handling Guidelines: Always assume that the tool contains fasteners. 2. Do not point the tool toward yourself or anyone whether contains fasteners or not. Never depress the operating control unless the nosepiece of the tool is directed toward the workpiece.
- Page 4 There may be local regulations concerning noise which must be complied with by keeping noise levels within prescribed limits. In certain cases, shutters should be used to contain noise. Shutter Do not tamper with the tool or attempt t o use other than nailing.
- Page 5 Always check the tool for its overall condition and loose screws before operation. Tighten as required. Make sure all safety systems are in working order before operation. The tool must not operate if only Pusher the trigger pulled or if only the contact arm is pressed against the wood.
- Page 6 Use only nails specified in this manual. The use of any other nails may cause malfunction of the tool. not permit those uninstructed t o use the tool. .Make sure no one is nearby before nailing. Never attempt t o nail from both the inside and outside at the same time.
- Page 7 On rooftops and other high locations, nail as you move forward. It is easy t o lose your footing if you nail while inching backward. When nailing against perpendicular surface, nail from the top t o the bottom. You can perform nailing operations with less fatigue by doing so.
- Page 8 .Do not point the ejection port at anyone in the vicinity. Keep hands and feet away from the ejection port area. *When the air hose is connected, do not carry the tool with your finger on the trigger or hand someone in this condition.
- Page 9 Keep the tool in tip-top condition. Lubricate moving parts t o prevent rusting and minimize friction related wear. Wipe off all dust from the parts. Ask Makita's Factory or Authorized service center for periodical inspection of the tool. SAVE THESE INSTRUCTIONS.
- Page 10 TOOL INSTALLATION INSTRUCTIONS AND USE Lubrication To insure maximum performance, install the air set (oiler, regulator, air filter) as close possible t o the tool. Adjust the oiler so that one drop of oil will be provided for every 30 nails. When the air set oiler is not used, oil with a few drops of turbine oil through the air plug both before and after nailing operations.
- Page 11 While pulling the pusher, press the lock lever to unlock Lock lever the pusher. Then return the pusher while pressing the lock lever. Selecting compressor The air compressor shall comply with the requirements of ANSI 519.3 1981. Select a compressor that has ample high pressure and air output in order to assure cost-efficient operation.
- Page 12 Operation Trigger 1)To drive a nail, you may place the contact arm against the workpiece and pull the trigger, or Pull the trigger first and then place the contact arm against the workpiece. No, 1 method is for intermittent nailing, when you wish to drive a nail carefully and very accurately.
- Page 13 Nails Handle nail strips and their carefully. the nail strips have been handled roughly, they may be out of shape or their connector breaks, causing poor nail feed. Avoid storing nails in a very humid or hot place or place exposed to direct sunlight.
-
Page 14: Maintenance
MAINTENANCE CAUTION: Always be sure that the air hose is disconnected from the tool before attempting to perform inspection or maintenance Maintenance of nailer Always check the tool for its overall condition and loose screws before operation. Tighten as required. Make sure all safety systems are in working order Pusher before operation. - Page 15 Keep the air hose away from heat (over 60°C, over 140" chemicals (thinner, strong acids or alkalis) and possible damage. To maintain product SAFETY and RELIABILITY, maintenance and repairs should be per- formed by Makita Authorized or Factory Service Centers, always using Makita replacement Darts.
- Page 16 MAKITA LIMITED ONE YEAR WARRANTY Warranty Policy Every Makita tool is thoroughly inspected and tested before leaving the factory. It is warranted to be free of defects from workmanship and materials for the period of ONE YEAR from the date of original purchase.
