Summary of Contents for Pass XP-12

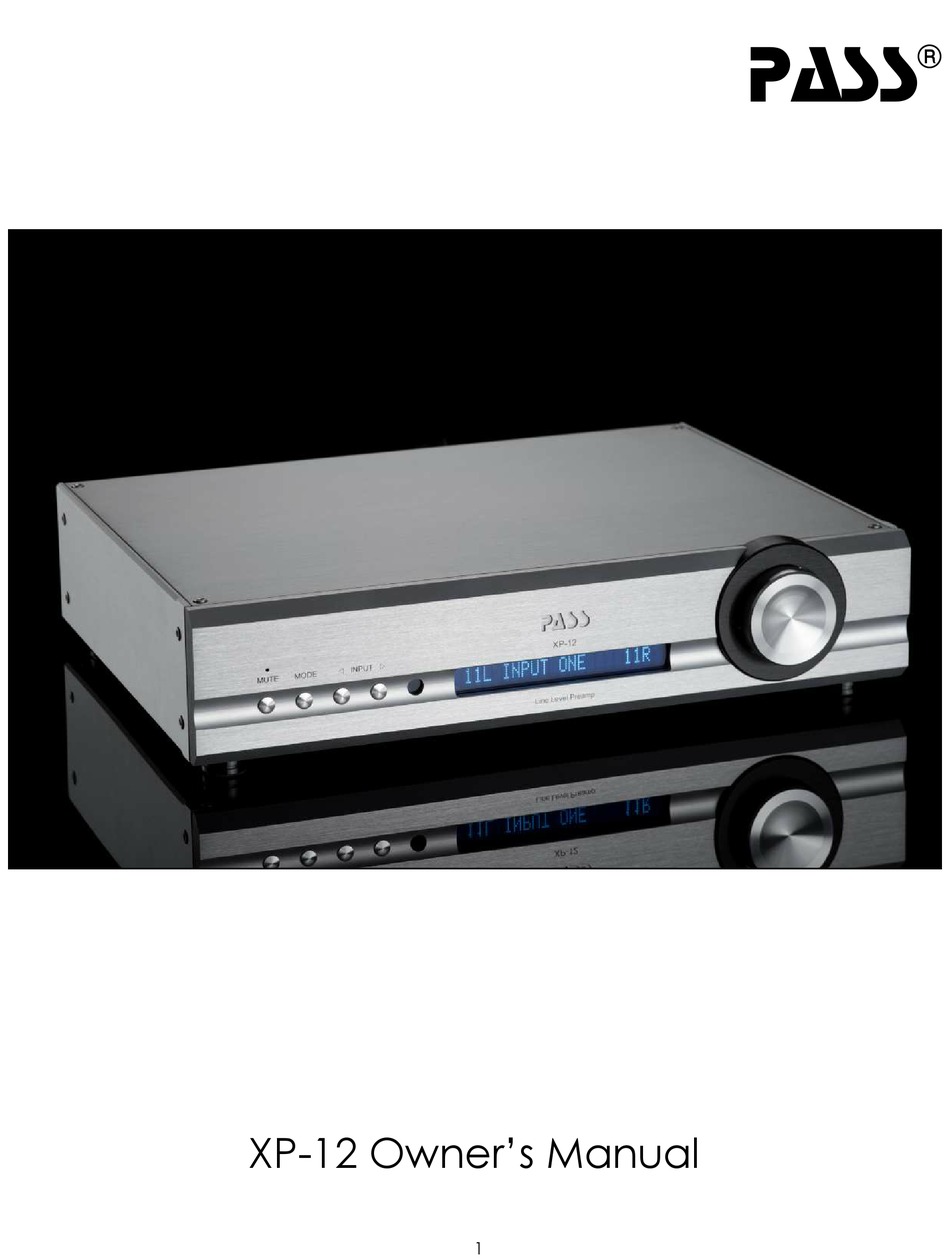

- Page 1 ® pass XP-12 Owner’s Manual...
- Page 2 The product MUST be connected to a MAINS socket outlet with a protective earthing connection. Power Cords: Pass Labs provides a power supply cord that meets all legislated requirements for the market in which the product was originally sold. If you choose to substitute an af- ter-market product we urge you to choose one that is fully safety rated by the necessary local authority.
- Page 3 That time has come with a new series of preamplifi ers. The new XP-12 starts with a new power supply. It uses an effi cient toroidal design with both an electrostatic and Mu metal shield along with vacuum impregnating and epoxy fi...
- Page 4 Setup: Please read and understand the operational instructions and safety issues associated with this product. We go through great effort to make a soundly engineered, and superbly performing product of lasting durability. We understand that things infrequently go wrong, if you have any questions or problems please contact either your dealer or the factory, we are here to support the product and you, the user.
- Page 5 When the right-front and left-front outputs of the processor are routed through input 5 of the XP-12 (with the gain of the XP-12 set for Unity), the volume will be under full control of the processor and the XP-12’s action will be totally transparent. When the user chooses this setting the software sets the XP-12’s gain to the unity gain setting,...
- Page 6 Pass Through. With the rarest of exceptions this is a very safe transition, very infrequently will the normal chosen level be higher than 0 dB. The electronic volume control allows greater than 70 dB range and is driven by a micro-controller that reads the optical encoder serving as a front panel volume control.
- Page 7 89. This is to prevent nasty surprises when “pass thru” is selected accidentally. The ramp up sequence can be stopped at any time by hitting any button on the remote. The button must be pressed again to exit “Pass Thru” and unlock the other command selections.
- Page 8 Maintenance: Leave it on or turn it off: The XP-12 is designed to be left on all the time. The exception to this might be a case where the preamp will not be used for an extended time - in that case it can be turn off.
- Page 9 Product with altered or missing serial numbers will be suspect as counterfeit or stolen product. Pass Laboratories will not repair or in any way indemnify any counterfeit or cloned product. Pass Laboratories does not offer products in voltages intended for international markets either to authorized Pass Labs dealers or to third parties located in the United States or Canada.
- Page 10 ® pass Pass Laboratories Inc., 13395 New Airport Rd., Suite G, Auburn, CA 95602 530.878.5350 passlabs.com...
