Summary of Contents for Pass X5

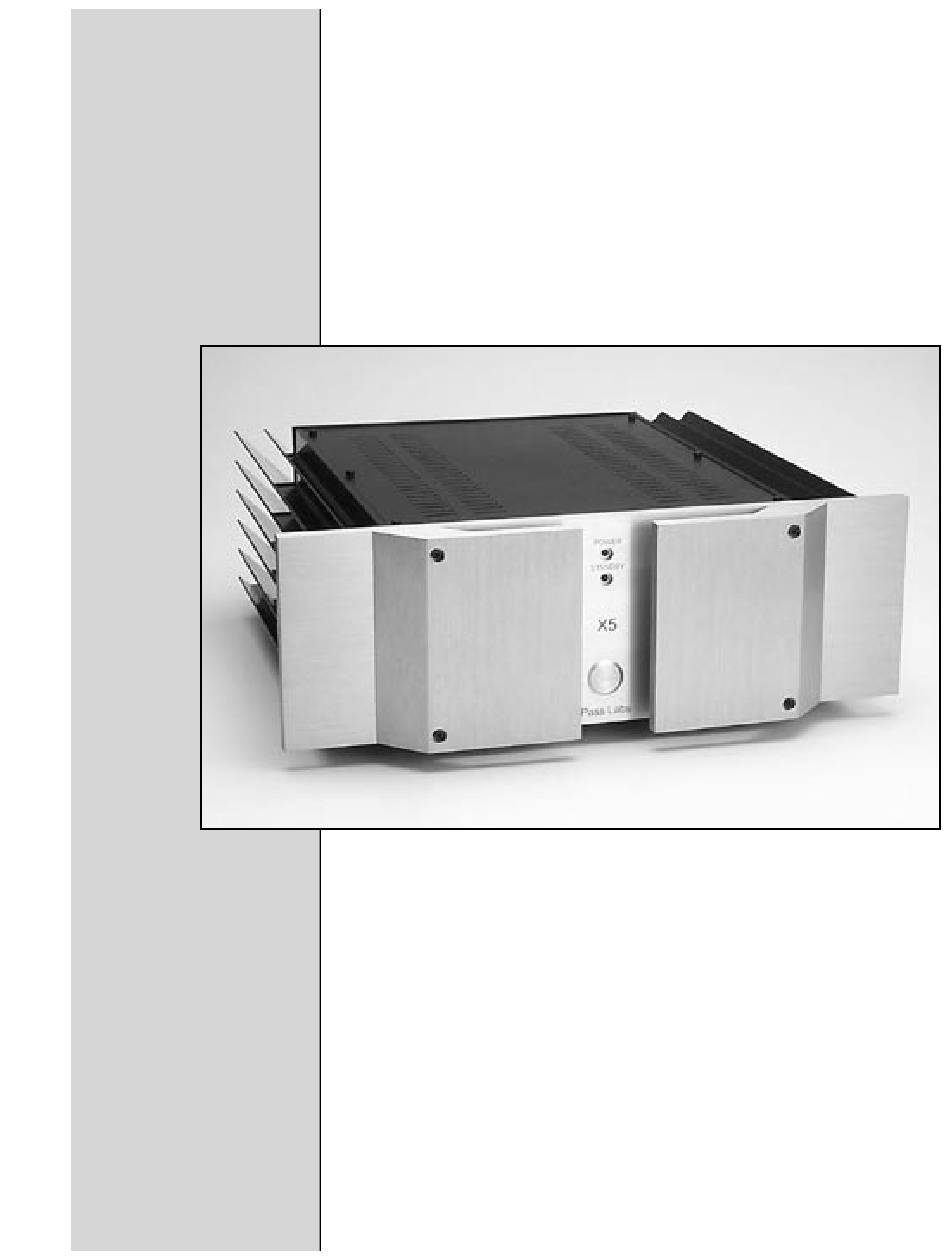

- Page 1 X5 Owner’s Manual May 18, 2006 X5 Owner’s Manual...
- Page 2 Supersymmetry circuit. The Supersymmetry circuit topology was granted a U.S. patent in 1994, and is the result of 19 years of effort by Nelson Pass. The amplifier uses highly matched components in a classically simple balanced Class A circuit. The amplifier contains only two simple stages: the first is a balanced single-ended Class A voltage gain stage.
- Page 3 If you are driving a low impedance load, you will draw more than this, but this will not be typical. The X5 is provided with the more conventional AC line cord, which is rated at 15 amps. The circuit ground is attached to the chassis in the conventional manner.
- Page 4 12 volts DC to the single pair of 5 way connectors on the rear of the amplifier. The positive of the 12 volts DC goes to the red connector. This connection has an actual operating range X5 Owner’s Manual...
- Page 5 So much for essential information. Speaker Interface The X5 is optimized for loads nominally rated at 4 ohms and above. You can run the amplifiers into a lower nominal impedance without difficulty, and we are not aware of a speaker on the market that presents unusual difficulty with these amplifiers.
- Page 6 They will not withstand 100 foot-lbs of torque. Hand tightening without excessive force is plenty. The X5 has a power transformer, rated at 1000 watts, continuous Fun Hardware Facts duty. Under actual conditions in the amplifier the transformer will deliver about 1800 watts for short duration.
- Page 7 Tel: 530.367.3690 Fax: 530.369.2193 www.passlabs.com © 2006, Pass Laboratories Inc. “Pass”, “pass”, “Pass Labs”, “Pass Laboratories”, Supersymmetery”, “Aleph”, and “Zen” and are all registered trademarks of Pass Laboratories, Inc., and all rights thereto are protected by law. X5 Owner’s Manual...
-
Page 8: Warranty Information
Product with altered or missing serial numbers will be suspected as counterfeit product. Pass Laboratories will not repair or in any way indemnify any counterfeit or cloned product. Pass Laboratories does not offer products in voltages intended for inter- national markets either to authorized Pass Labs dealers or to third parties located in the United States or Canada. - Page 9 Power Cords: Pass Laboratories provides a power supply cord that meets all legislated requirements for the market in which the product was originally sold. If you choose to substitute an after-market product we urge you to choose one that is fully safety rated by the necessary local authority.
