PASS
TM

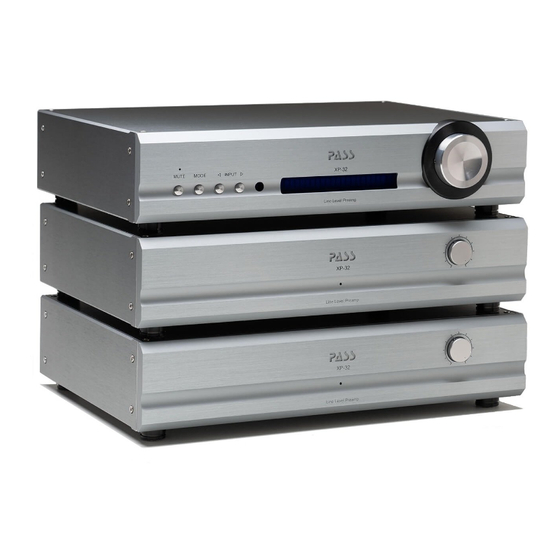

XP-32 Owner's Manual
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the XP-32 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Pass XP-32

Summary of Contents for Pass XP-32

  • Page 1 PASS XP-32 Owner’s Manual...
  • Page 2 Grounding: Adequate precautions should be taken so that the grounding provisions built into an electrical product are never defeated. Power Cords: Pass Laboratories provides a power supply cord that meets all legislated requirements for the market in which the product was originally sold. If you choose to substitute an after-market product we urge you to choose one that is fully safety rated by the necessary local authority.
  • Page 3 Introduction: Thank you for purchasing the Pass Labs XP-32 line stage, we trust it will entice you to re-discover your favorite recordings and explore new musical delights. At Pass Laboratories we do not change products or offer a new model unless we believe the changes offer significant improvements over the previous version.
  • Page 4 If you have any questions we are anxious to assist in addressing them. Do not hesitate to contact either your dealer or the Pass Labs factory directly. We are here to support the product and you the end-user.
  • Page 5 The single-ended ground ( RCA Shell) is in parallel with the Balanced ground (Pin 1 of the XLR) on the inputs. The input from the RCA feeds a summing junction that maximized the patented supersymmetry (X circuit) and preserves the balanced character of the XP-32 from input to output when fed from a single-ended source.
  • Page 6 (0dB by manually selecting an indicated level of 179 on the XP-32 display The electronic volume control of the XP-32 allows for 100 dB range in 0.5dB steps and is driven by a micro controller, reading an optical encoder serving as the front panel volume control.
  • Page 7 PASS THRU: Pressing this button once selects the Pass-Thru input and displays “PASS THRU” and swiftly ramps the volume from step 0 to step 179. As a precaution pressing any command during this ramp up sequences, aborts the ramp up and sets the level to 000 in both channels immediately.
  • Page 8 EXT AMP ON; Selection of “Ext Amp On” applies 12Vdc to a two conductor 3.5mm TS (tip-sleeve) connector on the rear of the XP-32 control chassis. This is intended to supply a trigger voltage that will turn on associated equipment such as power amps.
  • Page 9 Pass Laboratories will not repair or in any way indemnify any counterfeit or cloned product. Pass Laboratories does not offer products in voltages intended for international markets either to authorized Pass Labs dealers or to third parties located in the United States or Canada.
  • Page 10 PASS “Pass”, “ ”, “Pass Labs”, “Pass Laboratories”, Supersymmetery”, “Aleph”, and “Zen” and are all registered trademarks of Pass Laboratories, Inc., and all rights thereto are protected by law. PASS ® Pass Laboratories Inc., 13395 New Airport Rd., Suite G, Auburn, CA 95602...
