PASS
®
XA25
25W Stereo Class A Amplifier

Advertisement

loading
Need help?

Need help?

Do you have a question about the XA25 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Pass XA25

Summary of Contents for Pass XA25

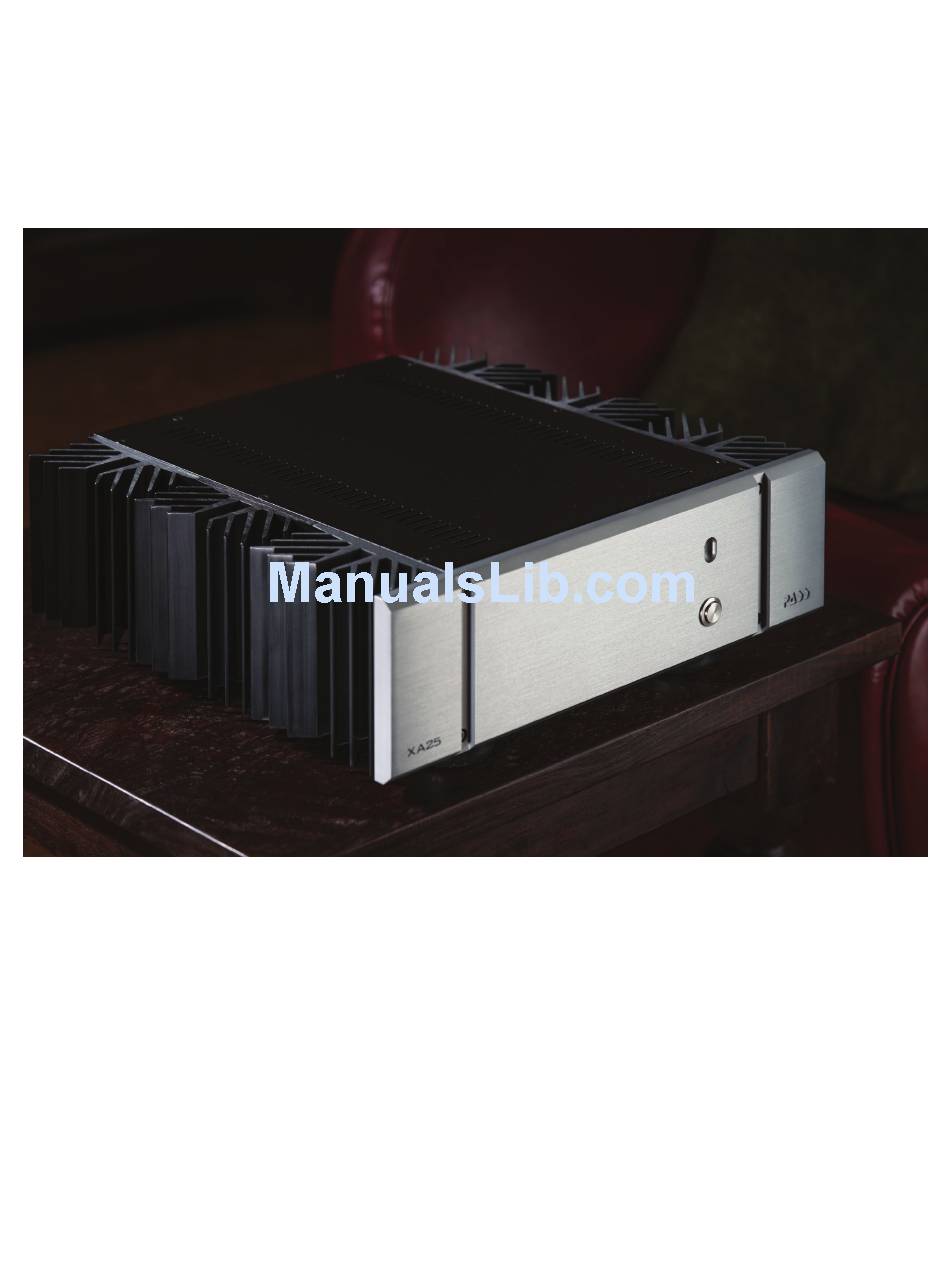

  • Page 1 PASS ® XA25 25W Stereo Class A Amplifier...
  • Page 2 MAINS socket outlet with a protective earthing connection. Power Cords: Pass Labs provides a power supply cord that meets all legislated requirements for the market in which the product was originally sold. If you choose to substitute an af- ter-market product we urge you to choose one that is fully safety rated by the necessary local authority.
  • Page 3 California. The measure well and sound great. They are heavy, reliable and expensive. The new XA25 offers this at slightly lower power, without frills, at a lower price. It embodies new components and innovative circuits coupled with the best elements of the previous genera- tion.

  • Page 4: Input Connection

    AC power is provided by a conventional detachable IEC 320 grounded AC mains power cord. This power cord serves as the safety disconnect. The power cord should be removed from the wall in the event of electrical storms or when the XA25 is not going to be used for long periods.

  • Page 5: Operation

    The XA25 takes approximately an hour to fully warm up and sounds better as it does. Push- ing the power button on the front panel of the XA25 a second time turns it off and extin- guishes the blue LED.
  • Page 6 XA25 Nominal Specifications Gain: 20 dB gain Output power: 25 Watts rms @ 8 ohms 50 Watts rms @ 4 ohms Distortion: 0.1% @ 25 Watts, 8 ohms, 1 KHz Class A envelope: 50 Watt peak for 2, 4 or 8 ohm load...
  • Page 7 (530) 878-5350 SCALE: 1:4 SHEET 1 OF 1 “Pass”, “PASS”, “Pass Labs”, “Pass Laboratories”, Supersymmetery”, “Aleph”, and “Zen” and are all registered trademarks of Pass Laboratories, Inc., and all rights thereto are protected by law. PASS ® Pass Laboratories Inc.
  • Page 8 Pass Laboratories will not repair or in any way indemnify any counterfeit or cloned product. Pass Laboratories does not offer products in voltages intended for international markets either to authorized Pass Labs dealers or to third parties located in the United States or Canada.
