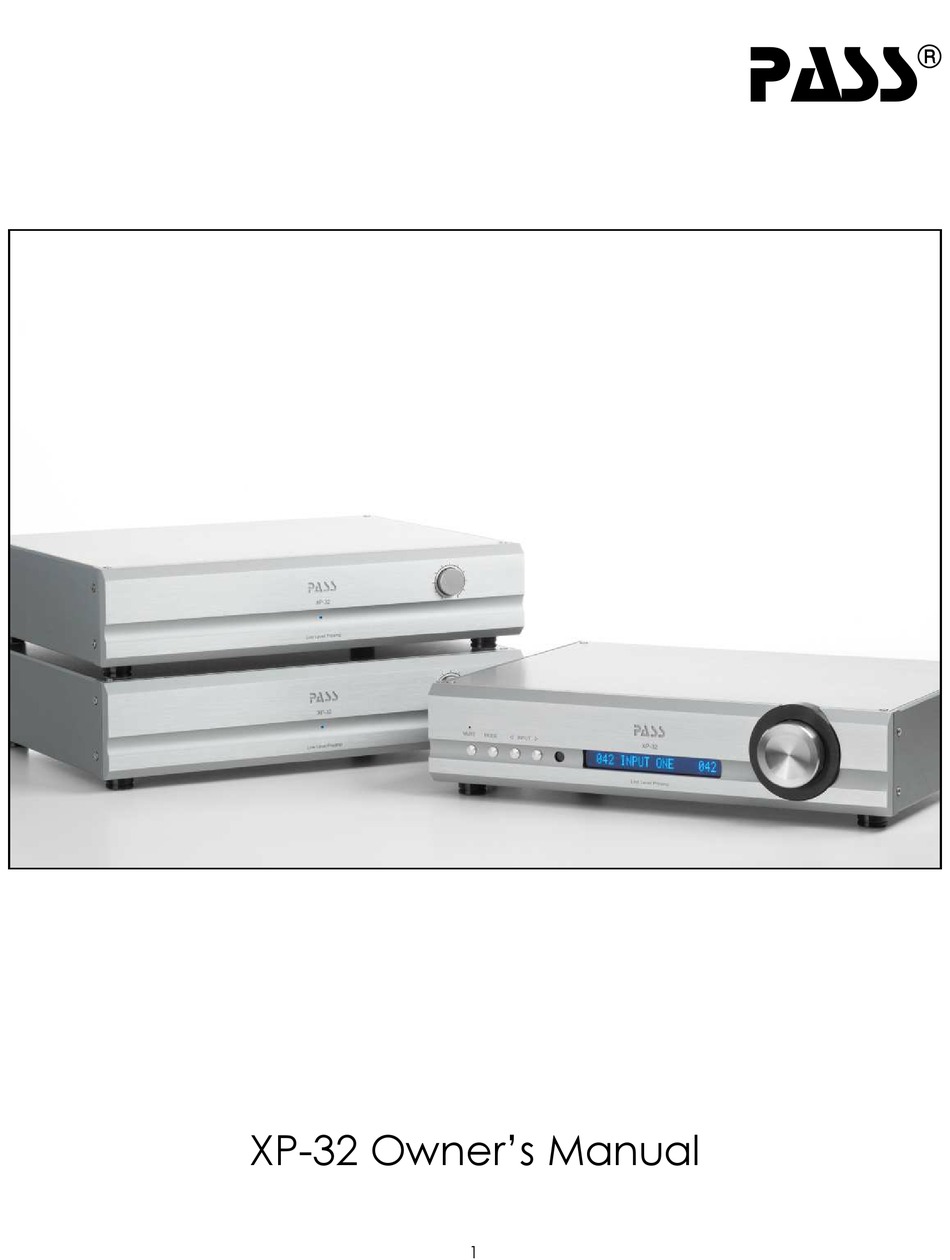

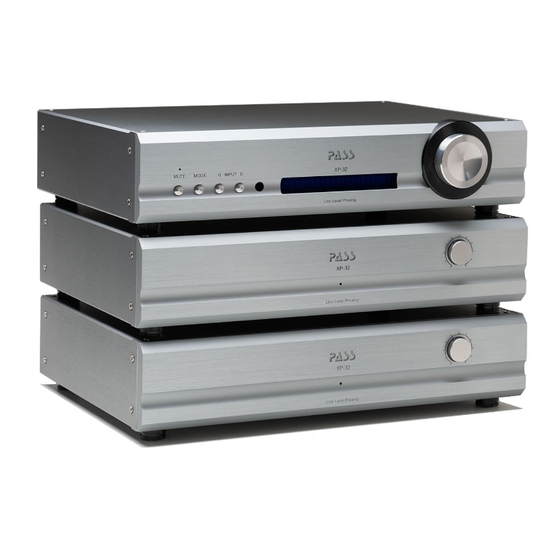

- Page 1 ® pass XP-32 Owner’s Manual...
- Page 2 The product MUST be connected to a MAINS socket outlet with a protective earthing connection. Power Cords: Pass Labs provides a power supply cord that meets all legislated requirements for the market in which the product was originally sold. If you choose to substitute an af- ter-market product we urge you to choose one that is fully safety rated by the necessary local authority.
- Page 3 Introduction: Thank you for purchasing the Pass Labs XP-32 line stage, we trust it will entice you to re-discover your favorite recordings and explore new musical delights. At Pass Laboratories we do not change products or offer a new model unless we believe the changes offer signifi...
- Page 4 If you have any questions we are anxious to assist in addressing them. Do not hesitate to contact either your dealer or the Pass Labs factory directly. We are here to support the product and you the end- user.
- Page 5 Do not defeat this ground connection. Operation: The XP-32’s front panel controls and display are straight forward and intuitive. We encourage you to become familiar with their operation prior to use. On each gain channel there are 5 numbered inputs, one dedicated home theater input and a tape loop (total of 7 usable inputs) Each of the 7 inputs accept either single-ended (RCA) or balanced XLR cables.
- Page 6 179 on the XP-32 display The electronic volume control of the XP-32 allows for 100 dB range in 0.5dB steps and is driven by a micro controller, reading an optical encoder serving as the front panel volume control.
- Page 7 Ext amp on: Selection of “Ext Amp On” applies 12Vdc to a two conductor 3.5mm TS (tip-sleeve) connector on the rear of the XP-32 control chassis. This is intended to supply a trigger voltage that will turn on associated equipment such as power amps.
- Page 8 Use of other than approved fuses, may invalidate your product warranty and result in product damage. How to replace the fuse: XP-32 Specs: Power consumption: 70 watts Gain: 9.6dB Balanced...
- Page 9 Product with altered or missing serial numbers will be suspect as counterfeit or stolen product. Pass Laboratories will not repair or in any way indemnify any counterfeit or cloned product. Pass Laboratories does not offer products in voltages intended for international markets either to authorized Pass Labs dealers or to third parties located in the United States or Canada.
