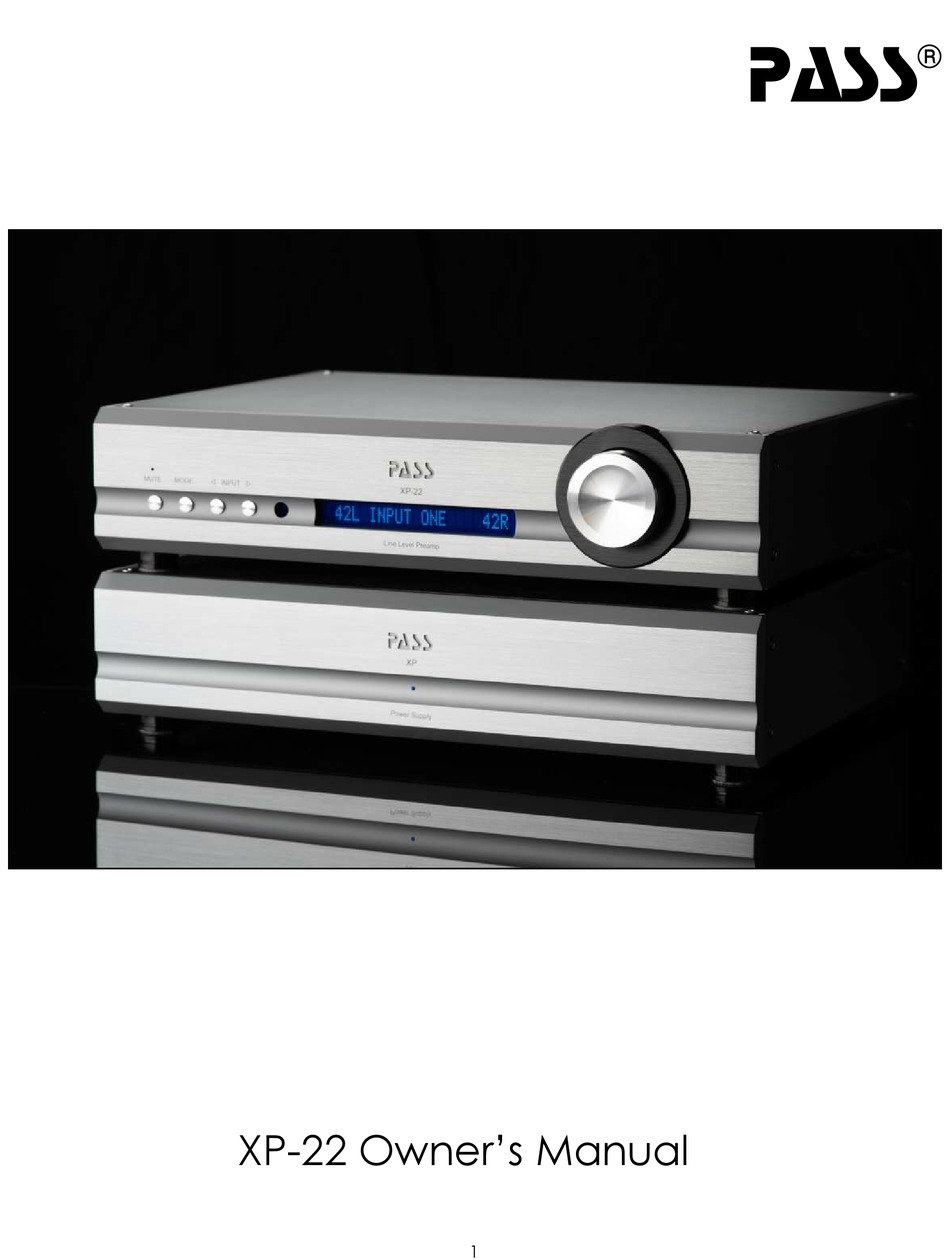

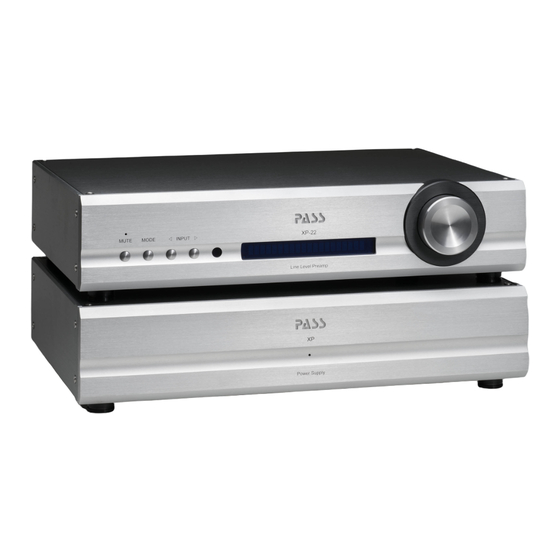

- Page 1 ® pass XP-22 Owner’s Manual...
- Page 2 The product MUST be connected to a MAINS socket outlet with a protective earthing connection. Power Cords: Pass Labs provides a power supply cord that meets all legislated requirements for the market in which the product was originally sold. If you choose to substitute an af- ter-market product we urge you to choose one that is fully safety rated by the necessary local authority.
- Page 3 That time has come with a new series of preamplifi ers. The new XP-22 starts with a new power supply. It uses two effi cient toroidal transformers with both an electrostatic and Mu metal shield along with vacuum impregnating and epoxy fi...
- Page 4 The JAE umbilical cable should never be connected or removed without turning the XP-22 off from the rear power switch or unplugging the AC power cord. The control can be placed on top of the power supply but for the best performance they should be separated a little.
- Page 5 When the right-front and left-front outputs of the processor are routed through input 5 of the XP-22 (with the gain of the XP-22 set for Unity), the volume will be under full control of the processor and the XP-22’s action will be totally transparent. When the...
- Page 6 XP-22’s gain to the unity gain setting, regardless of how it was previously confi gured. When at Unity both left and right level controls on the XP-22 will have a displayed value of 89 (0 dB), and any previous balance settings will be set-aside into a temporary registry.
- Page 7 Ext amp on: Selection of “Ext Amp On” applies 12Vdc to a two conductor 3.5mm TS (tip-sleeve) connector on the rear of the XP-22 control chassis. This is intended to supply a trigger voltage that will turn on associated equipment such as power amps.
- Page 8 Use of other than approved fuses, may invalidate your product warranty and result in product damage. How to replace the fuse: XP-22 Specs: Power consumption: 40 watts Gain: 9.6dB Balanced...
- Page 9 Product with altered or missing serial numbers will be suspect as counterfeit or stolen product. Pass Laboratories will not repair or in any way indemnify any counterfeit or cloned product. Pass Laboratories does not offer products in voltages intended for international markets either to authorized Pass Labs dealers or to third parties located in the United States or Canada.
- Page 10 ® pass Pass Laboratories Inc., 13395 New Airport Rd., Suite G, Auburn, CA 95602 530.878.5350 passlabs.com...
