Remus 64782 088013 Installation Instruction

Remus 64782 088013 Installation Instruction

Bmw r1200gs black hawk

Advertisement

Quick Links

Verpackungsinhalt
/
1 REMUS Sportschalldämpfer, 1 Montagesatz

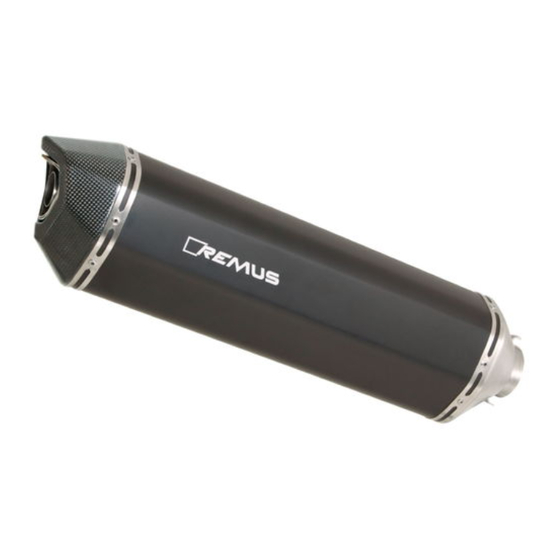

1 REMUS sport exhaust, 1 assembly kit
Demontieren der Serien – Auspuffanlage /
Entfernen Sie das originale Hitzeschutzblech. (Abb. 1)
Die Befestigungsschrauben werden wieder für die Montage
der Remus Carbon Hitzeschutzabdeckung verwendet.
Remove the original heat protection shield (pic. 1).
The screws will be needed again for mounting the remus
heat protecting carbon shield.
1
Irrtümer und Änderungen vorbehalten! /
Montageanleitung
Installation instruction
Packing content
Errors and omissions excepted!
REMUS Innovation GmbH
Dr.-Niederdorfer-Straße 25, A-8572 Bärnbach
Tel.: 0043 (0)3142 / 6900-0
office@remus.at, www.remus.eu
BMW R1200GS Black Hawk
Disassembly of the original exhaust system
Lösen Sie die Schrauben des Halters und der Schelle und
nehmen Sie den originalen Schalldämpfer ab. (Abb.2)
Loosen the screws of the bracket and the clamp and
remove the original muffler. (pic.2)
2
64782 088013 / 64782 088016
Seite / page: 1/3
www.remususa.com
www.remus.cn

Advertisement

loading
Need help?

Need help?

Do you have a question about the 64782 088013 and is the answer not in the manual?

Questions and answers

Summary of Contents for Remus 64782 088013

  • Page 1 Sie den originalen Schalldämpfer ab. (Abb.2) Remove the original heat protection shield (pic. 1). Loosen the screws of the bracket and the clamp and The screws will be needed again for mounting the remus remove the original muffler. (pic.2) heat protecting carbon shield.
  • Page 2 Schrauben fest (Abb. 5 / 6). Mount the REMUS heat protection shield with the serial screws. For positioning turn the clamp, which is mounted on the muffler, in the desired position. The distance between heat protection shield and the flap cover should be constant.
  • Page 3 Um das gepflegte Aussehen verchromten sowie schwarz lackierten Bauteile auf Dauer zu gewährleisten, ist eine einfache Reinigung notwendig. Vor allem Salzablagerungen müssen umgehend mit Wasser entfernt werden. Slightly tighten the clamp- and bolted connections. Align the REMUS sport exhaust and tighten the connections. Start the engine and test the whole system for leaks.
