Remus 64782 324517 Installation Instruction

Remus 64782 324517 Installation Instruction

Husqvarna 701 enduro / supermoto

Advertisement

Verpackungsinhalt
/

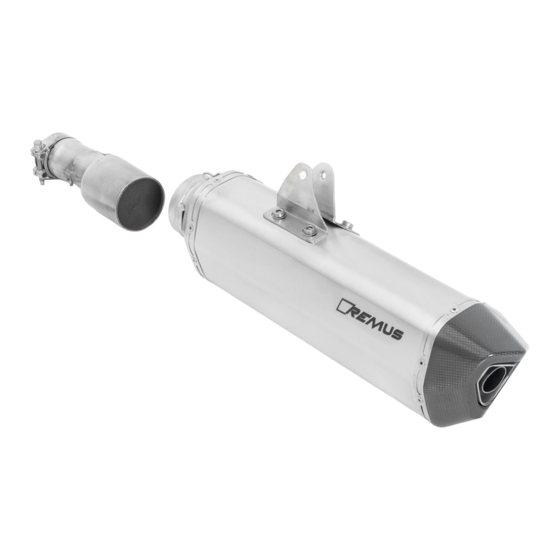

1 REMUS Sportschalldämpfer, 1 Montagesatz
1 REMUS sport exhausts, 1 assembly kit
Demontieren der Serien – Auspuffanlage /
Entfernen Sie die Sitzbank und demontieren Sie die Seitenverkleidung (Abb.1).
Remove the seat and the sidecover (pic.1).
1
Lösen Sie die Schelle und die Halterschraube. Anschließend entfernen Sie den Serien Schalldämpfer (Abb.2).
Loosen the clamp and the bracket screw. Afterwards remove the serial muffler. (pic.2)
2
Irrtümer und Änderungen vorbehalten! /
Montageanleitung
Installation instruction
Packing content
Errors and omissions excepted!
REMUS Innovation GmbH
Dr.-Niederdorfer-Straße 25, A-8572 Bärnbach
Tel.: 0043 (0)3142 / 6900-0
office@remus.at, www.remus.eu
Husqvarna 701 Enduro / Supermoto

Disassembly of the original exhaust system

64782 324517 / 64682 324517
Seite / page: 1/3
www.remususa.com
www.remus.cn

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 64782 324517 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Remus 64782 324517

  • Page 1 64782 324517 / 64682 324517 Verpackungsinhalt Packing content 1 REMUS Sportschalldämpfer, 1 Montagesatz 1 REMUS sport exhausts, 1 assembly kit Demontieren der Serien – Auspuffanlage / Disassembly of the original exhaust system Entfernen Sie die Sitzbank und demontieren Sie die Seitenverkleidung (Abb.1).
  • Page 2 Sie den Remus Sportschalldämfer auf das Verbindungsrohr und befestigen diesen mittels der Federn und dem Halter.(Abb.5/6). Mount the connection pipe on the serial header and fix it with the clamp. Afterwards connect the Remus muffler with the connection pipe and fix it with the springs and the bracket (pic.5/6).
  • Page 3 Um das gepflegte Aussehen verchromten sowie schwarz lackierten Bauteile auf Dauer zu gewährleisten, ist eine einfache Reinigung notwendig. Vor allem Salzablagerungen müssen umgehend mit Wasser entfernt werden. Slightly tighten the clamp- and bolted connections. Align the REMUS sport exhaust and tighten the connections. Start the engine and test the whole system for leaks.

This manual is also suitable for:

64682 324517
