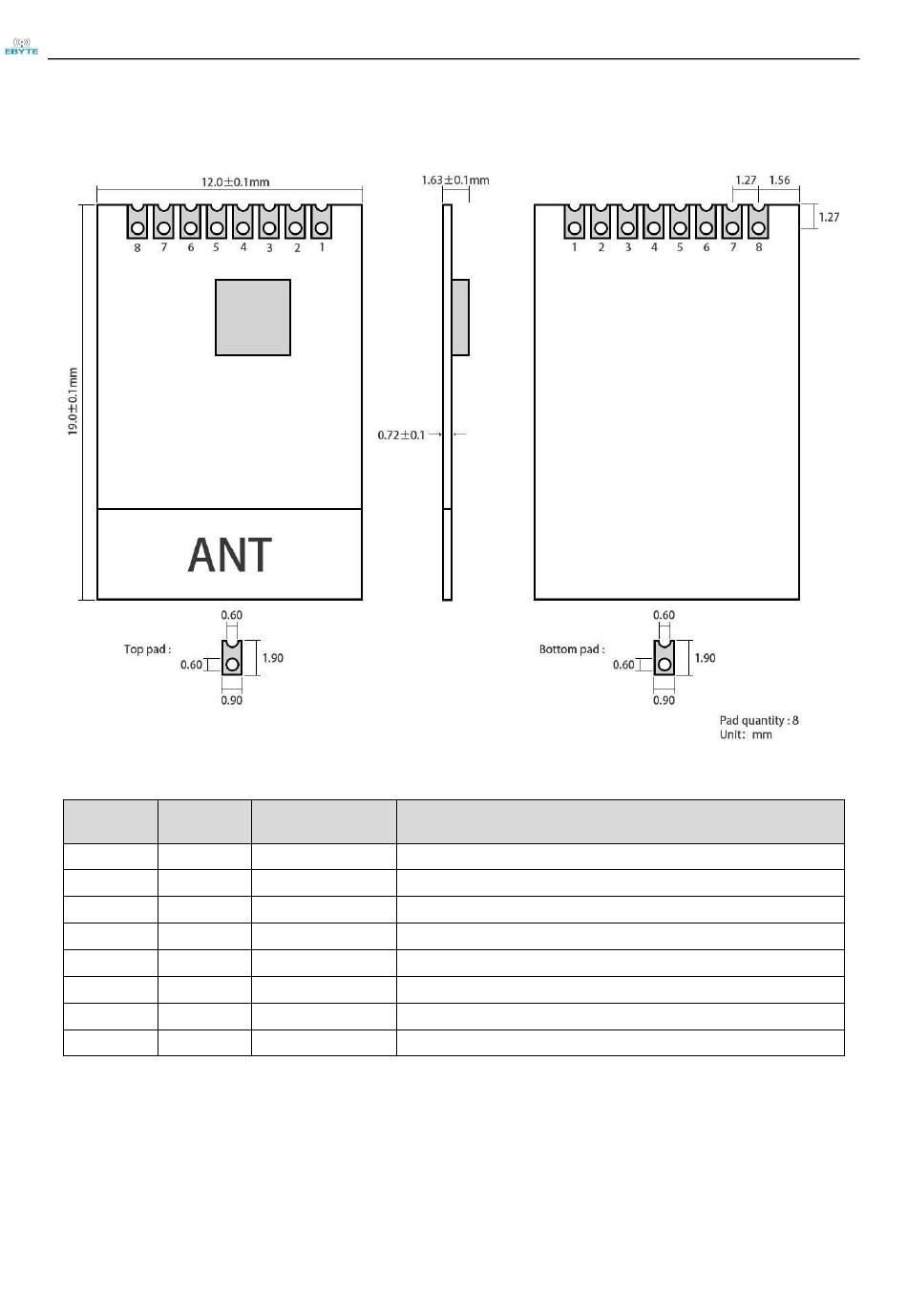

3. Size and pin definition

Pin No. Pin item
VCC
1
CE
2
CSN
3
SCK
4
MOSI
5
MISO
6
IRQ
7
GND
8
Pin direction Pin application
Power supply must be 2.0 ~ 3.6V
Input Chip Enable
Input SPI Chip select
Input SPI clock
Input SPI master output slave input
Output SPI master input slave output
Output Interrupt request.
Ground
