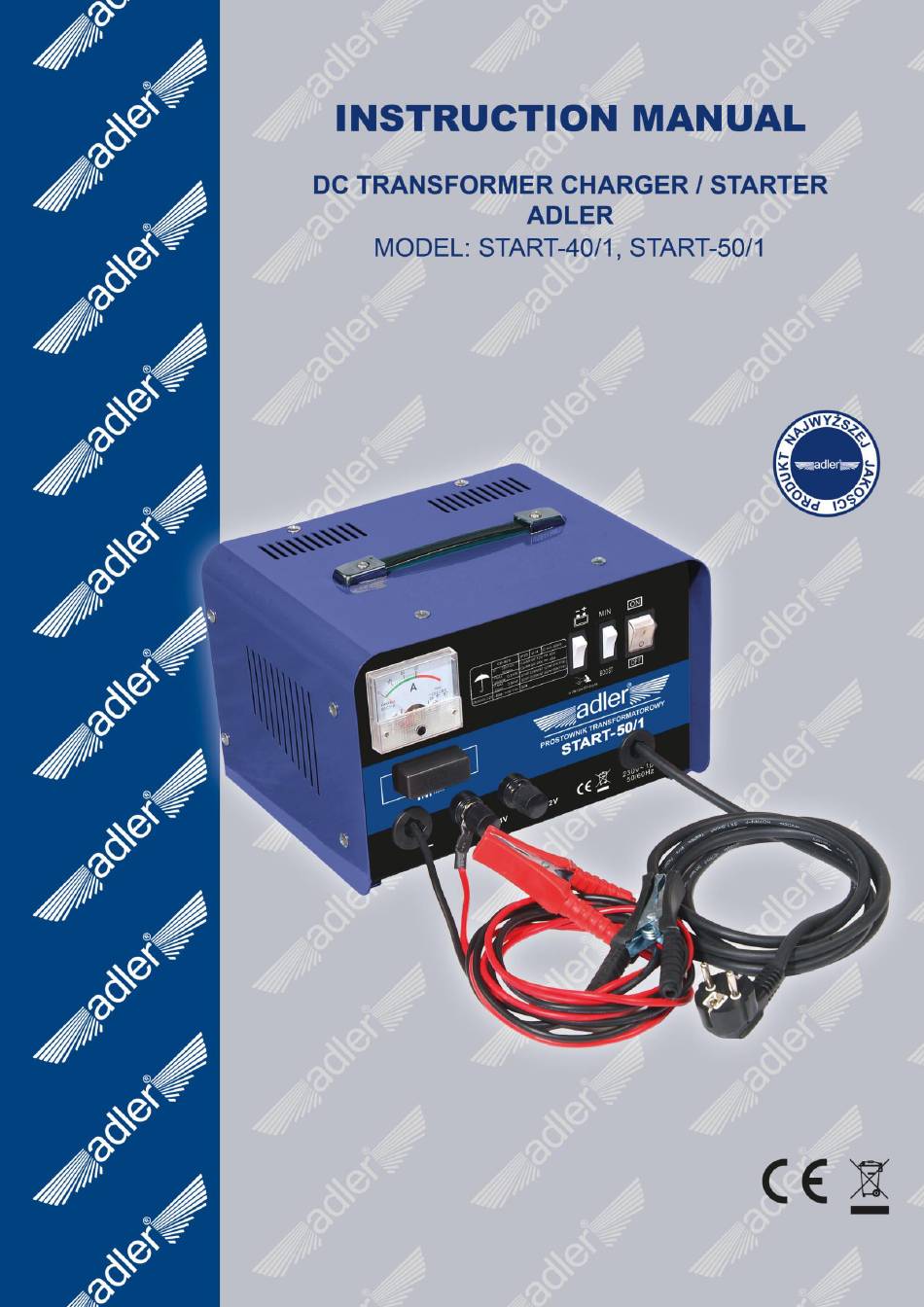

Adler START-40/1 Instruction Manual

Dc transformer charger/starter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the START-40/1 and is the answer not in the manual?

Questions and answers

Related Manuals for Adler START-40/1

Summary of Contents for Adler START-40/1

  • Page 2 PARAMETRS: Model START-40/1 START-50/1 Voltage 230V/50Hz 230V/50Hz Power (min/max) 0,8/2,5kW 0,8/3,6kW Charging Voltage 12/24V 12/24V Max. Charging Current Fast Charge Max. Starting Current 160A (1V/e) 180A (1V/e) (min/max) Ah 15h (min/max) Ah 15h Battery Capacity 30÷500 40÷700 max – 120 Ah 15h...
  • Page 3 WARNINGS: Electric Shock Poisonous Fumes Danger of Explosion Non-Ionizing Radiation Face Shield and Eye Protection Personal Protection Equipment General hazard Separation of electrical and electronic appliances for refuse collection. The user is not allowed to dispose of these appliances as solid, mixed urban refuse, and must do it through authorised refuse collection centres PLEASE, CAREFULLY READ THIS MANUAL BEFORE OPERATION...

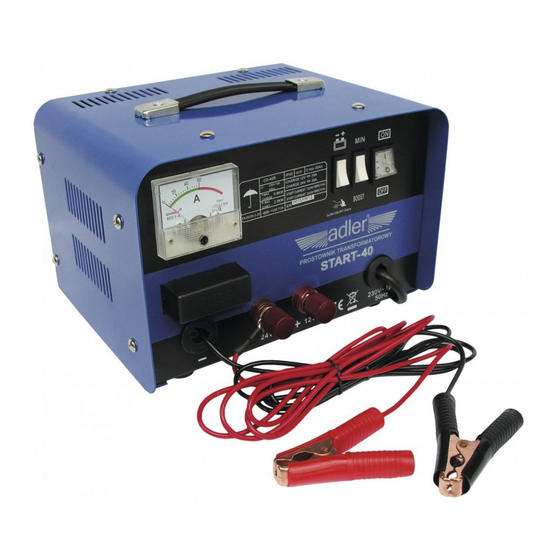

  • Page 4 1. FRONT PANEL 1. Main switch 2. Charging current switch 3. Charge/start switch 4. Ammeter 5. Fuse 6. Cable with clamp (-) 7. Charging terminal (+) 24V 8. Charging terminal (+) 12V 9. Power supply 2. GENERAL APPLICATION This battery charger is dedicated for regular and boost charging and starting engine-driven vehicles (petrol and diesel), equipped with free electrolyte lead acid batteries (WET).
  • Page 5 4. GETTING READY - Before charging, make sure the capacity of the battery (Ah) corresponds to the range given on the rating plate. - Remove tha caps of the battery (if present) to let the fumes out. - Check that the level of electrolyte covers the plates of the battery. You can add distilled water following marks on the battery.
  • Page 6 6.2 BOOST CHARGING - Select charging voltage and assemble the cable to 12V or 24V socket. - Select charging mode switch "C” in „BOOST” position (lower). - Select charging mode switch "B" in BOOST (boost charging in ca. 10-15 min). - Adjust main switch ‘’D”...
  • Page 7 END OF STARTING - Disconnect the power to the battery charger by turning the switch to OFF and remove the power cable from the mains. - Disconnect the black crocodile clip from the negative battery terminal (- symbol) and the red crocodile clip from the positive battery terminal (+ symbol).

This manual is also suitable for:

Start-50/1
