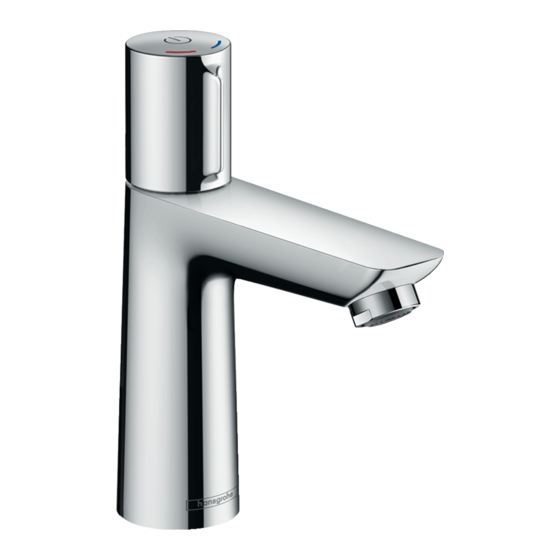

Hans Grohe Talis Select E 110 71750007 Instructions For Use/Assembly Instructions
  1. Manuals
  2. Brands
  3. Hans Grohe Manuals
  4. Kitchen & Bath Fixtures
  5. Talis Select E 110 71750007
  6. Instructions for use/assembly instructions

Hans Grohe Talis Select E 110 71750007 Instructions For Use/Assembly Instructions

Hide thumbs

Advertisement

Quick Links

Download this manual
ZH 用户手册 / 组装说明
EN Instructions for use / assembly instructions
2
3
Talis Select E 110
Talis Select S 80
Talis Select S 100
71750007
72040007
72042007

Advertisement

loading
Need help?

Need help?

Do you have a question about the Talis Select E 110 71750007 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Hans Grohe Talis Select E 110 71750007

Summary of Contents for Hans Grohe Talis Select E 110 71750007

  • Page 1 ZH 用户手册 / 组装说明 EN Instructions for use / assembly instructions Talis Select E 110 71750007 Talis Select S 80 72040007 Talis Select S 100 72042007...
  • Page 2 中文 符号说明 安全技巧 请勿使用含有乙酸的硅胶！ 装配时为避免挤压和切割受伤，必须戴上手 套。 调节 (参见第页 8) 本产品只允许作为洗浴、卫生和洁身之用。 冷热水管间过大的压力差必须予以平衡。 热水温度调节。如果使用即热式喷头，则不建议 安装热水阀门。 安装提示 保养 (参见第页 7) • 安装前必须检查产品是否受到运输损害。 安装 后将不认可运输损害或表面损伤。 单向阀必须在符合国家或当地的法律的情况下按 • 管道和阀门必须根据通用标准进行安装、冲洗 照DIN EN 1717定期检查 (至少一年一次) 。 和检查。 清洗 (参见第页 10) • 请遵守当地国家现行的安装规定。 • 只能按规定使用溢流阀。禁止将半露柱及其他 大小 (参见第页 12) 部件固定到溢流阀上。 • 如果使用即热式热水器时出现问题，或需要更 流量示意图 (参见第页 13) 大的水流量时，可以将位于止回阀中的  ® 带有 EcoSmart EcoSmart ® (流量限制器) 拆除。  ® 无 EcoSmart 技术参数...

  • Page 3: Safety Notes

    English Symbol description Safety Notes Do not use silicone containing acetic acid! Gloves should be worn during installation to prevent crushing and cutting injuries. Adjustment (see page 8) The product may only be used for bathing, hygienic To adjust the hot water limiter. Using a hot water limiter and body cleaning purposes. in combination with a continuous flow water heater is The hot and cold supplies must be of equal not recommended. pressures. Maintenance (see page 7) Installation Instructions • Prior to installation, inspect the product for transport The check valves must be checked regularly according damages. After it has been installed, no transport or to DIN EN 1717 in accordance with national or surface damage will be honoured. regional regulations (at least once a year). • The pipes and the fixture must be installed, flushed Cleaning (see page 10) and tested as per the applicable standards. • The plumbing codes applicable in the respective Dimensions (see page 12) countries must be observed. Flow diagram (see page 13) • The drain valve must only be used as intended. It is  with EcoSmart ®...
  • Page 4 98996000 (7 Nm)
  • Page 5 58085000 SW 19 mm SW 10 mm (4 Nm) (max. SW 24 mm 7 Nm) (4 Nm) 58085000 (max. 7 Nm)
  • Page 6 (50 Ncm) SW 22 mm SW 22 mm (2 Nm) > 2 min...
  • Page 7 SW 10 mm SW 19 mm SW 10 mm SW 19 mm (4 Nm)
  • Page 8 60 °C 10 °C 0,3 MPa 35°C 39°C 43°C 47°C 57°C 60°C...
  • Page 9 最大 / max. 至少 /min. (0,5 Nm)
  • Page 10 • • • • Hansgrohe • Hansgrohe • www.hansgrohe-int.com/guarantee • • QuickClean • QuickClean • • QUICK CLEAN...

  • Page 11: Warranty

    English Cleaning Recommendation for Hans- • After cleaning rinse thoroughly with clean water to remove any cleaner residue. grohe Products • The use of steam cleaners is not permitted. The high Today, modern sanitary and kitchen tapware, showers, temperatures can damage the products. accessories, washstands, tubs and radiators consist of Important very different materials to comply with the needs of the...
  • Page 12 Talis Select E 110 Talis Select S 80 Talis Select S 100 71750007 72040007 72042007 Ø Ø Ø 4 6 Ø Ø Ø G 3 / 8 G 3 / 8 G 3 / 8 G 3 / 8 G 3 / 8 G 3 / 8 G 1 / 2 G 1 / 2...
  • Page 13 Talis Select E 110 0,60 0,55 71750007 0,50 Talis Select S 80 0,45 EcoSmart ® 72040007 0,40 Talis Select S 100 0,35 72042007 0,30 0,25 0,20 0,15 EcoSmart ® 0,10 0,05 0,00 9 12 15 18 21 24 27 30 Q = l/min Q = l/sec 开 / open...
  • Page 14 Talis Select S 80 72040007 92525000 Talis Select S 100 72042007 92526000 92528000 (M30x1,5) SW 28 mm 92527000 (27x1,5) 92529000 98398000 (23x2) 98866000 98422000 EcoSmart ® (7x1,5) 96657000 95141000 (450 mm) 95664000 (600mm) 13185000 (M24x1 - 5 l/min) 97736000 98722000 96016000 96456000 95291000...
  • Page 15 Talis Select E 110 71750007 92525000 92526000 92528000 (M30x1,5) SW 28 mm 92527000 (27x1,5) 92529000 98194000 (28x2) EcoSmart ® 98866000 98398000 98422000 (23x2) (7x1,5) 96657000 13185000 (M24x1 - 5 l/min) 97736000 93405000 98722000 (450 mm) 96016000 95291000 93395000 94139007 96456000...
  • Page 16 Hansgrohe · Auestraße 5 - 9 · D-77761 Schiltach · Telefon +49 (0) 78 36/51-1282 · Telefax +49 (0) 7836/511440 E-Mail: info@hansgrohe.com · Internet: www.hansgrohe.com...
