1. Cautions on Assembly

There will be some steps where force is necessary. Please take the
proper measures and precautions to not hurt yourself or damage the
parts and follow the instructions as described.
You will need a phillips screwdriver (+ head) for assembly.
Please use the provided pictures as a reference during assembly.
Please be aware that the colours and/or appearance of some parts in
the provided pictures and those provided may be slightly different.
The required program for the micro:bit has already been included. If
another program is found to have been written in the micro:bit
please follow the link below to install the appropriate program for
use.
PLEN-Basic https://makecode.microbit.org/_4e7MEqgEHaw5
PLEN:bit Extensions https://makecode.microbit.org/_0960M8DsVKgc
When assembling the servo motors, the initial rotational position of
the gear on the motors is important. The assembly instructions
includes initial positioning for the motors. Please ensure all
motors are properly set.
When setting the servo motors, make sure you wait at least 2 seconds
after turning the power switch on until the servo motors
automatically set to their initial position. If the servo motors do
not move after 2 full secods, please if check they are connected
properly.

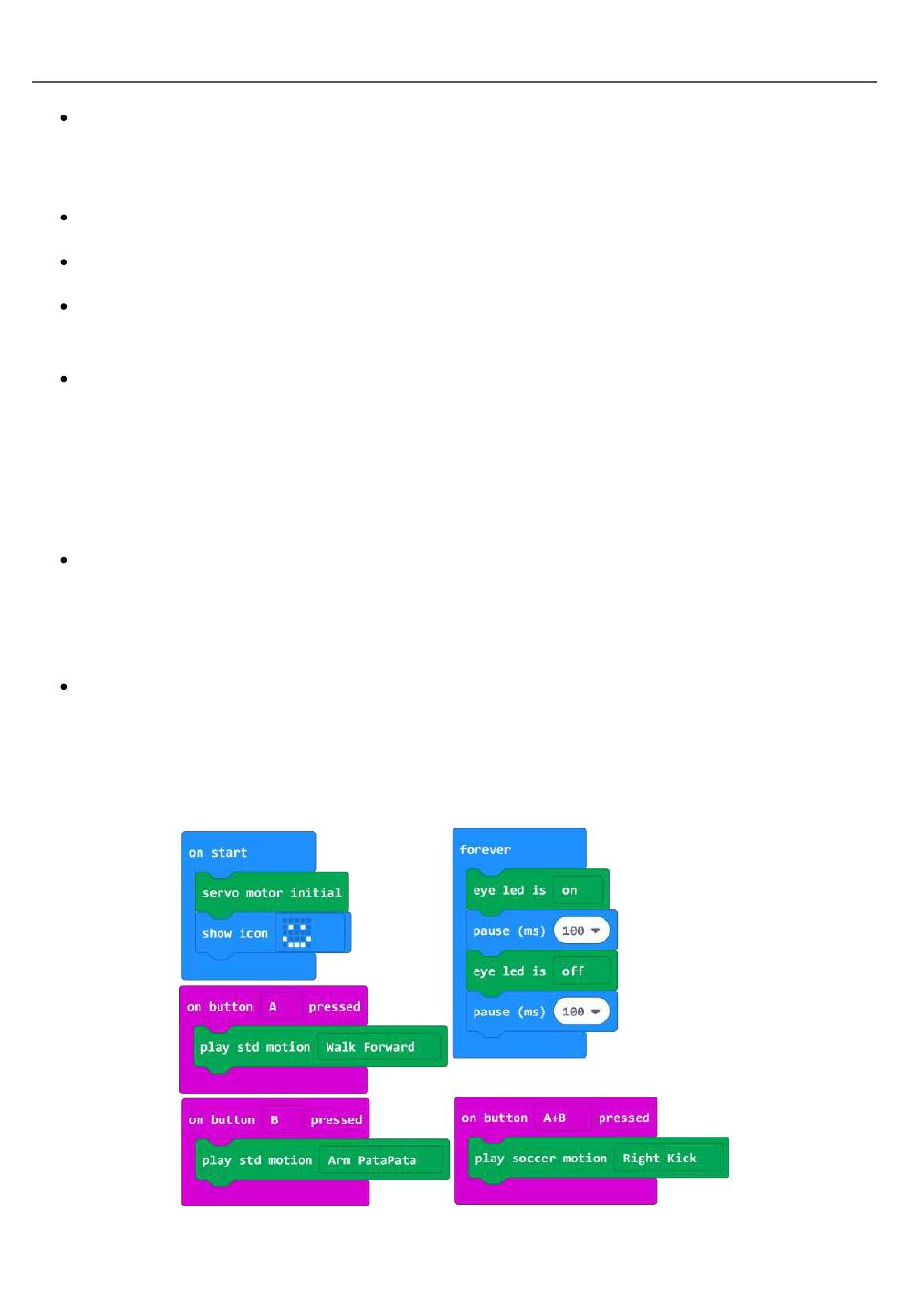

PLEN-Basic
