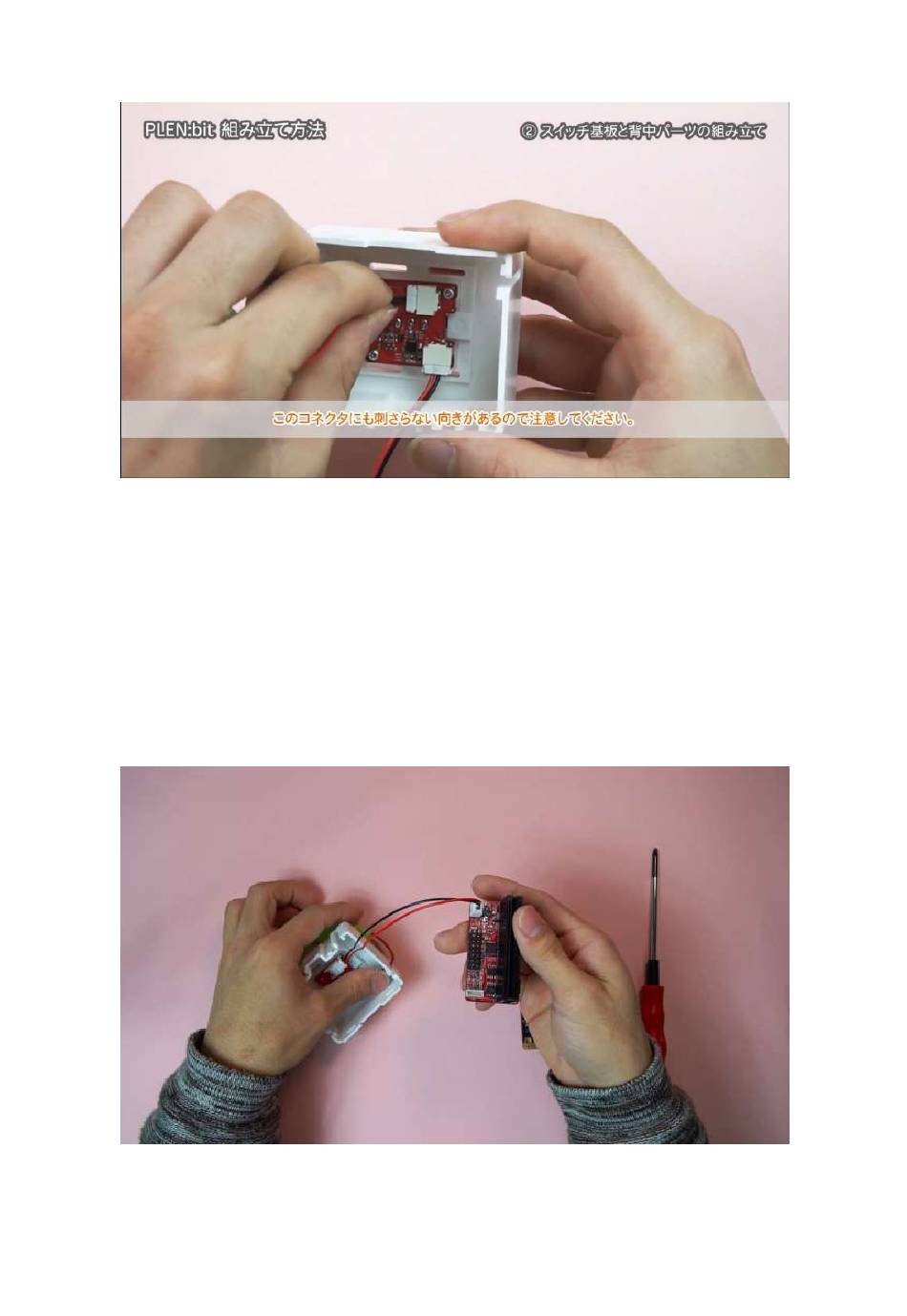

3. Connect the battery to the switch board following the below
reference picture.
4. Connect the control board and switch using the power cable. The
connectors are different so please ensure the correct connector
slides smoothly into the pins.
※ It is necessary to remove the power cable at the time of "Control
board wiring" mentioned later. In this case, since it is hard to
remove the cable from the connector, for children and people with
weak force, use the supplied connector tool. This is a tool to make
it easy to remove by holding this tool between the power cable and
the connector.
