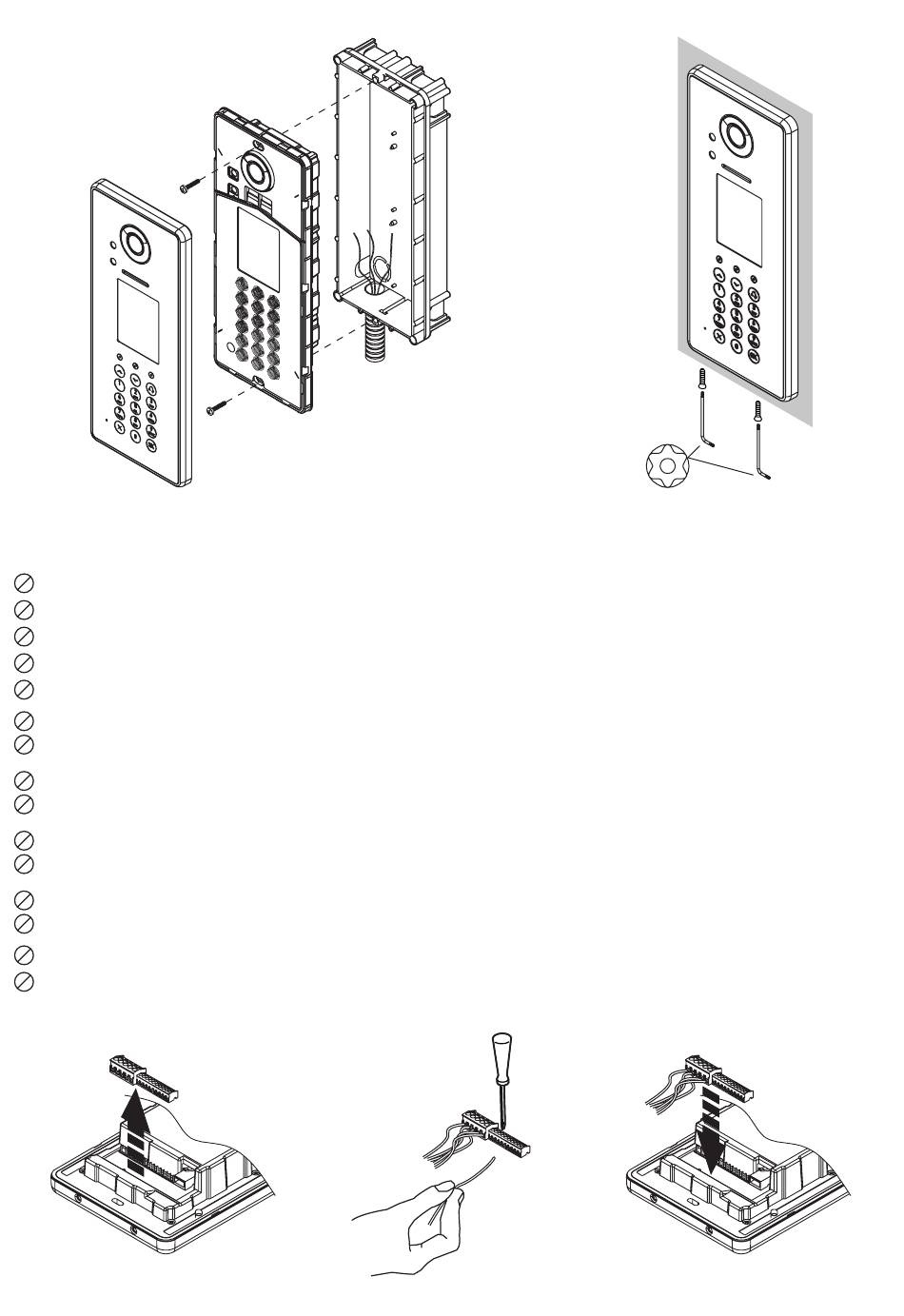

2.1 DESCRIPTION OF TERMINALS
C
Common lock relay contact
NO
Normally open lock relay contact
NC
Normally closed lock relay contact
}
SE-
Discharge lock terminals
SE+
]
PA
Hall button terminals for operating lock relay
]
SP
Open door sensor terminals
]
SE2
Garage gate contact terminals (NO)
]
AD
Hearing aid audio device terminals
}
V+
Auxiliary power terminals
V-
LAN
Ethernet connector for LAN RJ45
DS1060-117A
}
Simultaneous activation
7
