ENGLISH

1 DESCRIPTION

The device Ref. 1060/13 is an Elekta call module for Ipercom serverless system.
The main features are:
• Signal management using 3.5" graphic colour display and evolved graphic user interface (GUI).
• Simultaneous lock with pulse capacitance discharge (SE+; SE-) and no-voltage contact relay (C-NC-
NO) operation.
• Garage gate lock low current operation (SE2).
• Hall button input.
• Door sensor input.
• Audio repeat device control for use with hearing aid.
• LAN connection with RJ45 connector and POE power.
• Set-up by means of 2 terminals for local power supply.
• 125 kHz integrated transponder key reader (Ref. 1125/50).
• Infrared proximity sensor for user detection.
• CCD colour camera with wide-angle lens.
• Alphanumeric keypad with 18 buttons, three of which multifunctional.
• Black glass design.

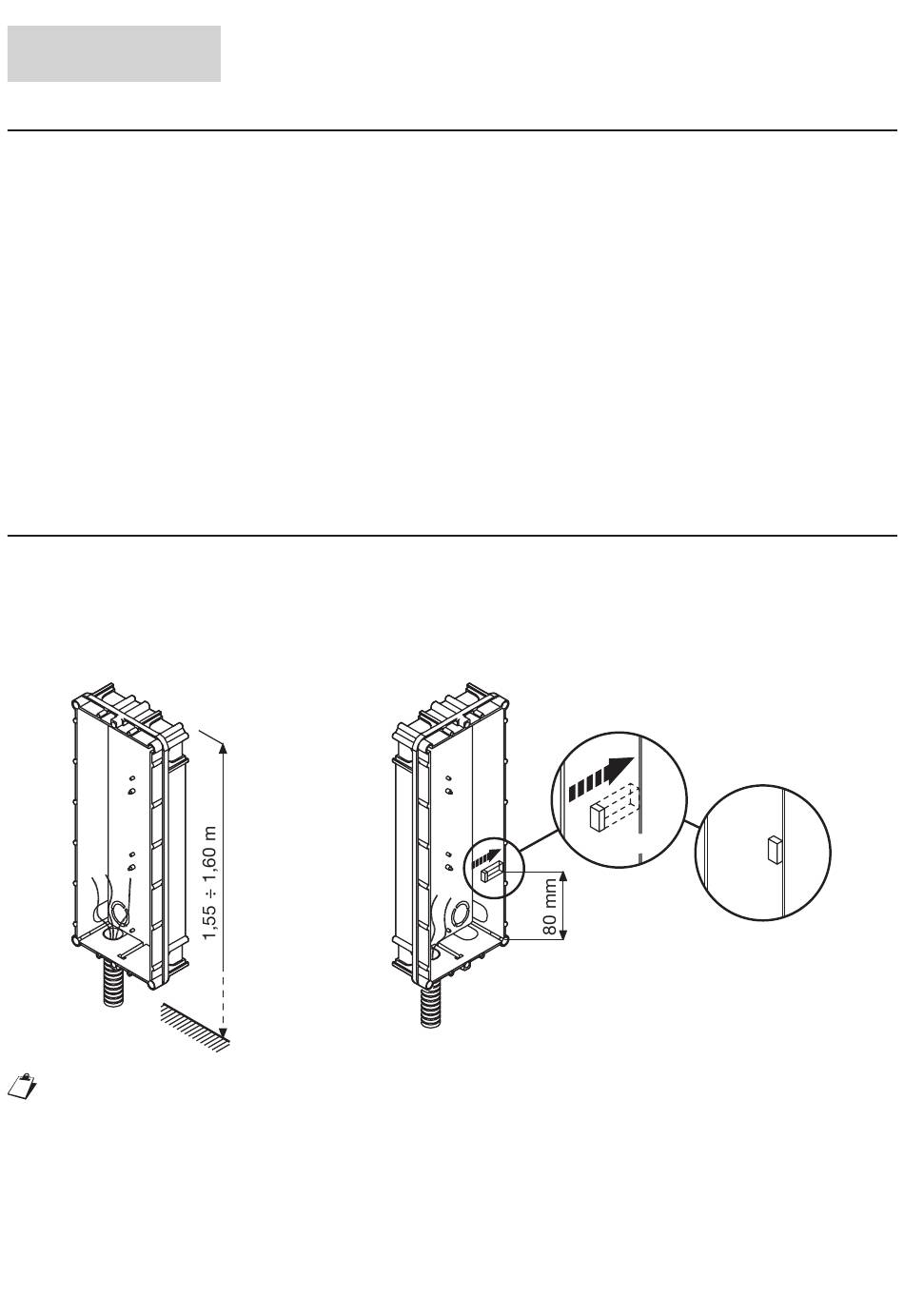

2 INSTALLATION

• Arrange wire conduits in order that they end in the lower holes of the fl ush mounting box.
• Fix the fl ush mounting box Ref. 1145/53 at the height shown.
• Fix the magnet (tamper) at the indicated height with the two-sided adhesive tape included
• Make electric connections.
• Fix the call module to the fl ush mounting box.
• Fix the front panel to the call module.
The highlighted part of the magnet must face the wall of the box (in contact with the two-sided
adhesive tape).
6
TAMPER
DS1060-117A
