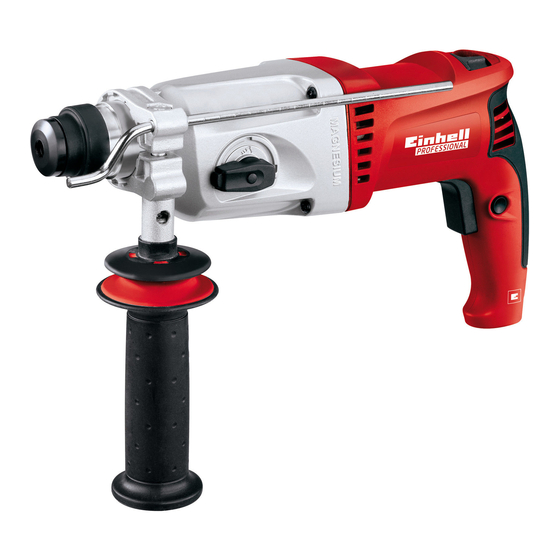

  • Page 1 TP-RH 24 E Original operating instructions Hammer drill Art.-Nr.: 42.587.12 I.-Nr.: 11013 Anl_TP_RH_24_E_SPK7_EX_KSA.indb 1 Anl_TP_RH_24_E_SPK7_EX_KSA.indb 1 03.07.13 10:36 03.07.13 10:36...
  • Page 2 - 2 - Anl_TP_RH_24_E_SPK7_EX_KSA.indb 2 Anl_TP_RH_24_E_SPK7_EX_KSA.indb 2 03.07.13 10:36 03.07.13 10:36...
  • Page 3 - 3 - Anl_TP_RH_24_E_SPK7_EX_KSA.indb 3 Anl_TP_RH_24_E_SPK7_EX_KSA.indb 3 03.07.13 10:36 03.07.13 10:36...
  • Page 4 - 4 - Anl_TP_RH_24_E_SPK7_EX_KSA.indb 4 Anl_TP_RH_24_E_SPK7_EX_KSA.indb 4 03.07.13 10:37 03.07.13 10:37...

  • Page 5: Table Of Contents

    Table of contents 1. Safety regulations 2. Layout and items supplied 3. Proper use 4. Technical data 5. Before starting the equipment 6. Operation 7. Replacing the power cable 8. Cleaning, maintenance and ordering of spare parts 9. Disposal and recycling 10.
  • Page 6 Caution - Read the operating instructions to reduce the risk of inquiry Wear ear-muff s. The impact of noise can cause damage to hearing. Wear a breathing mask. Dust which is injurious to health can be generated when working on wood and other materials.

  • Page 7: Safety Regulations

    Important! Important! The equipment and packaging material are When using the equipment, a few safety pre- not toys. Do not let children play with plastic cautions must be observed to avoid injuries and bags, foils or small parts. There is a danger of damage.

  • Page 8: Before Starting The Equipment

    The hammer drill is not designed for outdoors use Residual risks as specifi ed I Article 3 of Directive Even if you use this electric power tool in 2000/14/EC_2005/88/EC. accordance with instructions, certain resi- dual risks cannot be rules out. The following Wear ear-muff...

  • Page 9: Operation

    5.2 Depth stop (Fig. 3 – Item 7) To switch off : The depth stop (7) is held in place by the additio- Press the ON/OFF switch (4a) briefl y. nal handle (6) by clamping. • Slacken the additional handle (6) by turning Warning: At low temperatures below 0°...

  • Page 10: Replacing The Power Cable

    8. Cleaning, maintenance and 6.4 Changing the chisel position (Fig. 9) • Insert the tool into the mount as described in ordering of spare parts section 5.3 „Inserting the tool“. • Turn the operating mode selector switch (3a) Always pull out the mains power plug before star- into the position „Change chisel position“...

  • Page 11: Disposal And Recycling

    9. Disposal and recycling The equipment is supplied in packaging to pre- vent it from being damaged in transit. The raw materials in this packaging can be reused or recycled. The equipment and its accessories are made of various types of material, such as metal and plastic.
  • Page 12 The reprinting or reproduction by any other means, in whole or in part, of documentation and papers accompanying products is permitted only with the express consent of the iSC GmbH. Subject to technical changes - 12 - Anl_TP_RH_24_E_SPK7_EX_KSA.indb 12 Anl_TP_RH_24_E_SPK7_EX_KSA.indb 12 03.07.13 10:37 03.07.13 10:37...
