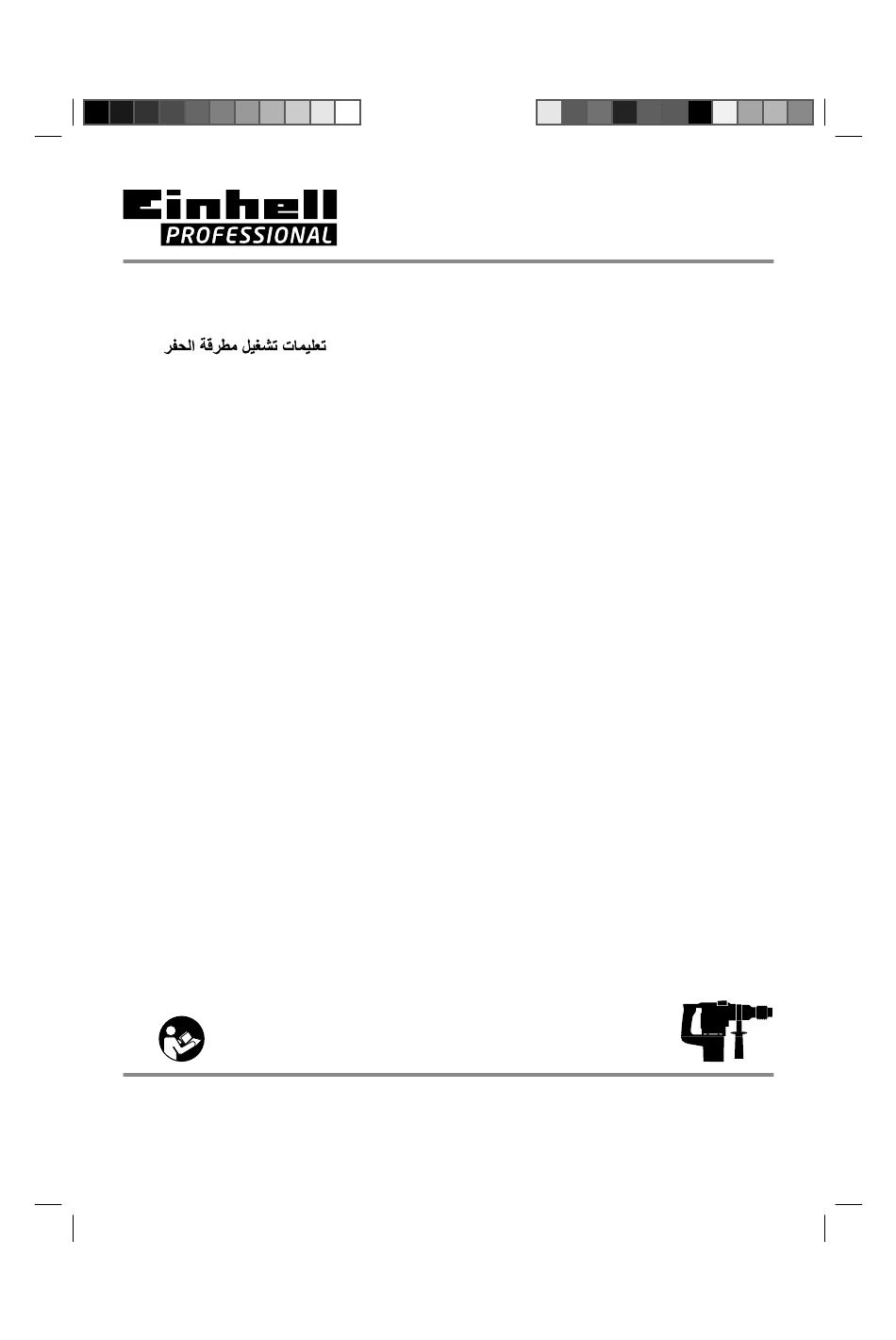

- Page 1 TP-RH 40 E Original operating instructions Hammer drill Art.-Nr.: 42.587.22 I.-Nr.: 11013 Anl_TP_RH_40_E_SPK7_EX_KSA.indb 1 Anl_TP_RH_40_E_SPK7_EX_KSA.indb 1 03.07.13 10:49 03.07.13 10:49...
- Page 2 - 2 - Anl_TP_RH_40_E_SPK7_EX_KSA.indb 2 Anl_TP_RH_40_E_SPK7_EX_KSA.indb 2 03.07.13 10:49 03.07.13 10:49...
- Page 3 - 3 - Anl_TP_RH_40_E_SPK7_EX_KSA.indb 3 Anl_TP_RH_40_E_SPK7_EX_KSA.indb 3 03.07.13 10:49 03.07.13 10:49...
- Page 4 - 4 - Anl_TP_RH_40_E_SPK7_EX_KSA.indb 4 Anl_TP_RH_40_E_SPK7_EX_KSA.indb 4 03.07.13 10:49 03.07.13 10:49...
-
Page 5: Table Of Contents
Table of contents 1. Safety regulations 2. Layout and items supplied 3. Proper use 4. Technical data 5. Before starting the equipment 6. Operation 7. Replacing the power cable 8. Cleaning, maintenance and ordering of spare parts 9. Disposal and recycling 10. - Page 6 Caution - Read the operating instructions to reduce the risk of inquiry Wear ear-muff s. The impact of noise can cause damage to hearing. Wear a breathing mask. Dust which is injurious to health can be generated when working on wood and other materials.
-
Page 7: Safety Regulations
Important! Important! The equipment and packaging material are When using the equipment, a few safety pre- not toys. Do not let children play with plastic cautions must be observed to avoid injuries and bags, foils or small parts. There is a danger of damage. -
Page 8: Before Starting The Equipment
The hammer drill is not designed for outdoors use Residual risks as specifi ed I Article 3 of Directive Even if you use this electric power tool in 2000/14/EC_2005/88/EC. accordance with instructions, certain resi- dual risks cannot be rules out. The following Wear ear-muff... -
Page 9: Operation
5.2 Depth stop (Fig. 3 – Item 7) Warning: At low temperatures below 0° C or The depth stop (7) is held in place with the lo- when the equipment has not been used for a long cking screw (11) on the additional handle (6) by time, there may be only little hammering eff... -
Page 10: Replacing The Power Cable
6.4 Power adjustment (Fig. 10) this means that the electric motor is probably A suitable speed, blow rate and impact energy damaged. are selected by turning the power controller (8). The constant electronics keeps the speed, blow rate and impact energy constant regardless of 7. -
Page 11: Disposal And Recycling
8.4 Ordering replacement parts: Please quote the following data when ordering replacement parts: • Type of machine • Article number of the machine • Identification number of the machine • Replacement part number of the part required For our latest prices and information please go to www.isc-gmbh.info 9. - Page 12 The reprinting or reproduction by any other means, in whole or in part, of documentation and papers accompanying products is permitted only with the express consent of the iSC GmbH. Subject to technical changes - 12 - Anl_TP_RH_40_E_SPK7_EX_KSA.indb 12 Anl_TP_RH_40_E_SPK7_EX_KSA.indb 12 03.07.13 10:49 03.07.13 10:49...
