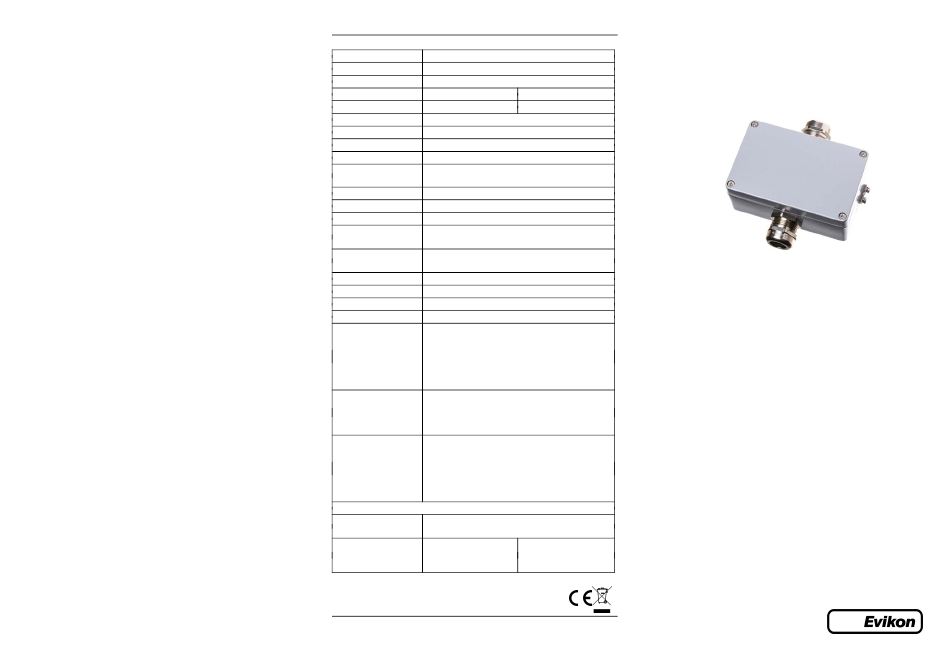

Evikon PluraSens E2658-VOC User Manual

Volatile Organic Compounds

Highly volatile organic liquids. The definitions of VOC may vary depending on
application field and country. E2658-VOC is intended to detect vapours of solvents
(acetone, benzene, ethanol, ethyl acetate, toluene, xylenes etc.
See Annex 2 for more information on the properties of various gases.

Installation guidelines

(See Installation and connections section for general information.)
Solvent vapours are heavier than air and tend to sink. Consider, if the vapours are
heated or not, if the detector is used for fire safety (LEL range) or air quality control
(0...100 to 0...1000 ppm range) etc.

Calibration

E2658-VOC detectors-transmitters have been calibrated by Manufacturer with
standard gas mixtures before delivery. Provided that the sensor is used under
moderate conditions, field recalibration is recommended once a year. Please
contact your dealer for more information.
E2658-VOC_UM_EN

Specifications

Sampling method diffusion
Sensor type metal oxide semiconductor
Default calibration toluene
Typical detection range 0...100% LEL
Resolution / digital unit 0.1% LEL
Response time T90 < 120 s
Sensor lifetime > 5 years
Calibration interval 12 months
Signal update every 1 second
11...30 VDC, 24 VAC
Power supply options
or 90...265 VAC (with mains power unit)
Power consumption < 2 VA
Analog outputs 2 × 4-20 mA / 0-10 V, user settable
Outputs assignment OUT1 2 gas; OUT2 2 gas
R < (Us - 2 V) / 22 mA for 4-20 mA
L
Load resistance
R > 250 kOhm for 0-10 V mode
L
RS485, Modbus RTU protocol
Digital interface
no galvanic isolation

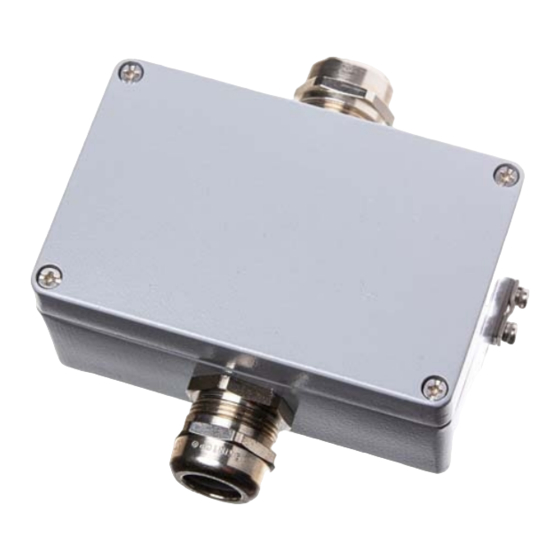

Enclosure Grey die-cast aluminium, wall mount, IP66
Cable gland M25 for SWA cable or steel conduit Ø10...17 mm
Dimensions H80 × W125 × D57 / H80 × W175 × D80 mm
Protection flameproof, ATEX: II 2 GD, Ex ed IIC T4 Gb
Enclosure:
ATEX / IECEx DEMKO 13 ATEX 1327771U
II 2 G Ex c IIC Gb II 2 D Ex tb IIIC Db IP66
ATEX Approvals
Glands:
ATEX / IECEx II2G Ex e II IP68
IBExU08ATEX 1063 X Ex II 1D Ex tD A20 IP 6x Ex
Flameproofepd to IEC EN 60079-1
Increased safety to IEC EN 60079-7
CE marking
EMC Emissions to EN 61000-6-3, EN 61326-1
EMC Immunity to EN 61000-6-1, EN 61000-6-2
-30...+70 °C
< 95% RH non-condensing, 0,9...1,1 atm
Explosion-safe zones and ATEX Zones 2 and 22
Operating conditions
Normal ambient oxygen level
Avoid exposure to corrosive gases or silicone
containing products
Relay option
2 × SPST relays (closing contact),
Output relays
250 VAC / 30 VDC, 5 A max
Alarm setpoints RE1 (LOW): 20/16 % LEL;
(set/release) RE2 (HIGH): 50/40% LEL
Evikon MCI OÜ Teaduspargi 7/9, Tartu
Tel. +372 733 6310 50411 Estonia
Rev 14.07.2020
up to 0...1000 ppm
1 ppm
Flame Proof
Solvent Vapours Detector-Transmitter
E2658-VOC
User Manual
RE1 (LOW): 100/80 ppm;
RE2 (HIGH): 300/240 ppm
(for 0...500 ppm range)
info@evikon.eu
www.evikon.eu
PluraSens ®
