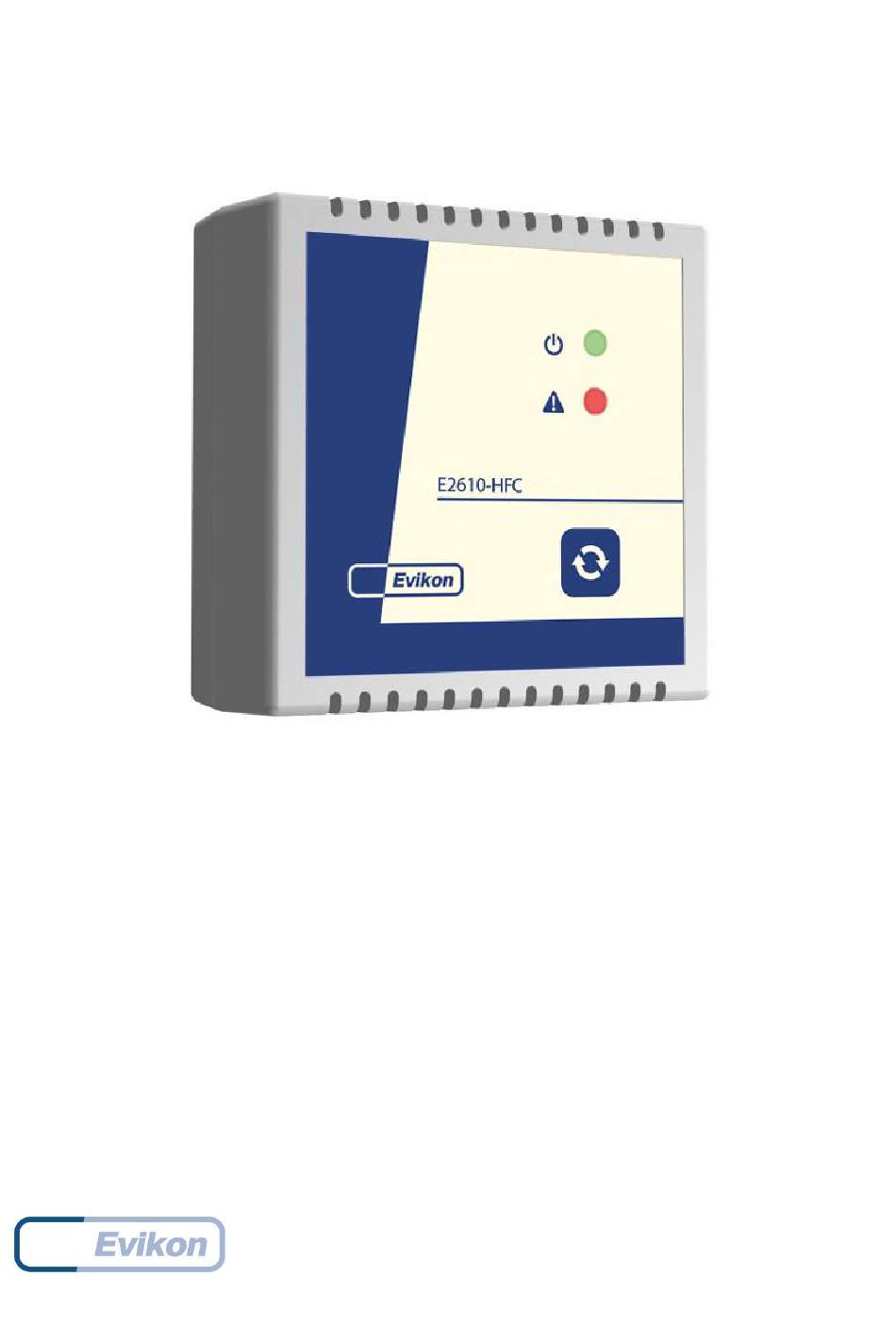

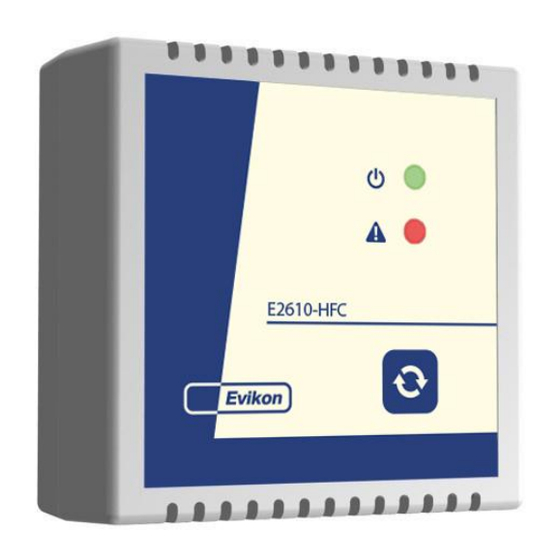

- Page 1 Refrigerant Detector E2610-HFC User Manual...
-
Page 2: Table Of Contents
E2610-HFC Rev 24.03.2021 Table of contents Hydrofluorocarbons Specifications Product description Safety requirements Operating conditions Installation guidelines Connections Operation Maintenance Calibration Delivery set Order code for E2610-HFC options Warranty Manufacturer contacts... -
Page 3: Hydrofluorocarbons
E2610-HFC Rev 24.03.2021 Hydrofluorocarbons HFCs are relatively non-flammable, chemically stable, and nonreactive. Classification of halocarbon refrigerants Group Refrigerants Chlorofluorocarbons (CFC) R11, R12 Hydrochlorofluorocarbons R22, R141b, R142b (HCFC) Hydrofluorocarbons (HFC) R32, R125, R134a, R143a Hydrofluoroolefins (HFO) R 1234ez, R1234yf, R1336mzz Chlorine containing refrigerants (CFC and HCFC) are considered to be damaging to the ozone layer and contributing to the greenhouse effect. - Page 4 E2610-HFC Rev 24.03.2021 asphyxiation in confined spaces. At higher temperatures (>250°C) decomposition products may include hydrofluoric acid (HF) and carbonyl halides. An escape of refrigerant through a leak may damage the refrigerating facilities.
-
Page 5: Specifications
E2610-HFC Rev 24.03.2021 Specifications Sensor type Metal oxide semiconductor Sampling method Diffusion Typical detection range 0-500 ppm Alarm setpoints 70-100-300 ppm (release-LOW-HIGH) Resolution / digital unit 1 ppm Accuracy ±(3% of range + 5 ppm CO) Response time <120 s Sensor lifetime >... -
Page 6: Product Description
E2610-HFC Rev 24.03.2021 Product description E2610 series gas detectors are compact and easy-to-use instruments. The devices utilize novel fully calibrated and temperature compensated gas sensors with excellent repeatability, stability, and long lifetime. Two relays with switch-over contact may be used for remote signaling or ventilation control. -
Page 7: Installation Guidelines
E2610-HFC Rev 24.03.2021 Installation guidelines There are no precise rules or standards to follow when installing gas detectors. The following points must be taken into account: ● Application (air quality control or leakage detection) Properties of the space under investigation (room geometry, direction, and ●... -
Page 8: Connections
E2610-HFC Rev 24.03.2021 Connections 1. Detach the base of the enclosure by gently pulling along four guiding pins. 2. Attach the base to the wall with two screws. (see drawings below). 3. Use rounded cutouts on the side of the base to let in the cables from the power supply... - Page 9 E2610-HFC Rev 24.03.2021 For easier connection, terminal blocks of E2610 series devices are removable. To dismount the terminal block, pull it off from the PCB. Connect the power terminals N and L to the 24 V source if you are using detector version -24 or to 230 V AC mains if you are using detector version -230 (see diagram below).
-
Page 10: Operation
Calibration E2610-HFC detectors have been calibrated by the Manufacturer with standard gas mixtures before delivery. Provided that the sensor is used under moderate conditions, field recalibration is recommended every 12 months Please contact your dealer for more... -
Page 11: Delivery Set
Delivery set ● Refrigerant Detector E2610-HFC Mounting accessories: ● 2 screws and 2 plastic dowel plugs ○ Order code for E2610-HFC options E2610 options Order code Integrated 90...265 V mains power supply module E2610-HFC-230 Integrated 24 VAC power supply module E2610-HFC-24VAC... -
Page 12: Warranty
Manufacturer or damaged by customer error or negligence or if there has been an unauthorized modification. Manufacturer contacts Evikon MCI OÜ Teaduspargi 7/9, Tartu 50411 Estonia info@evikon.eu...
