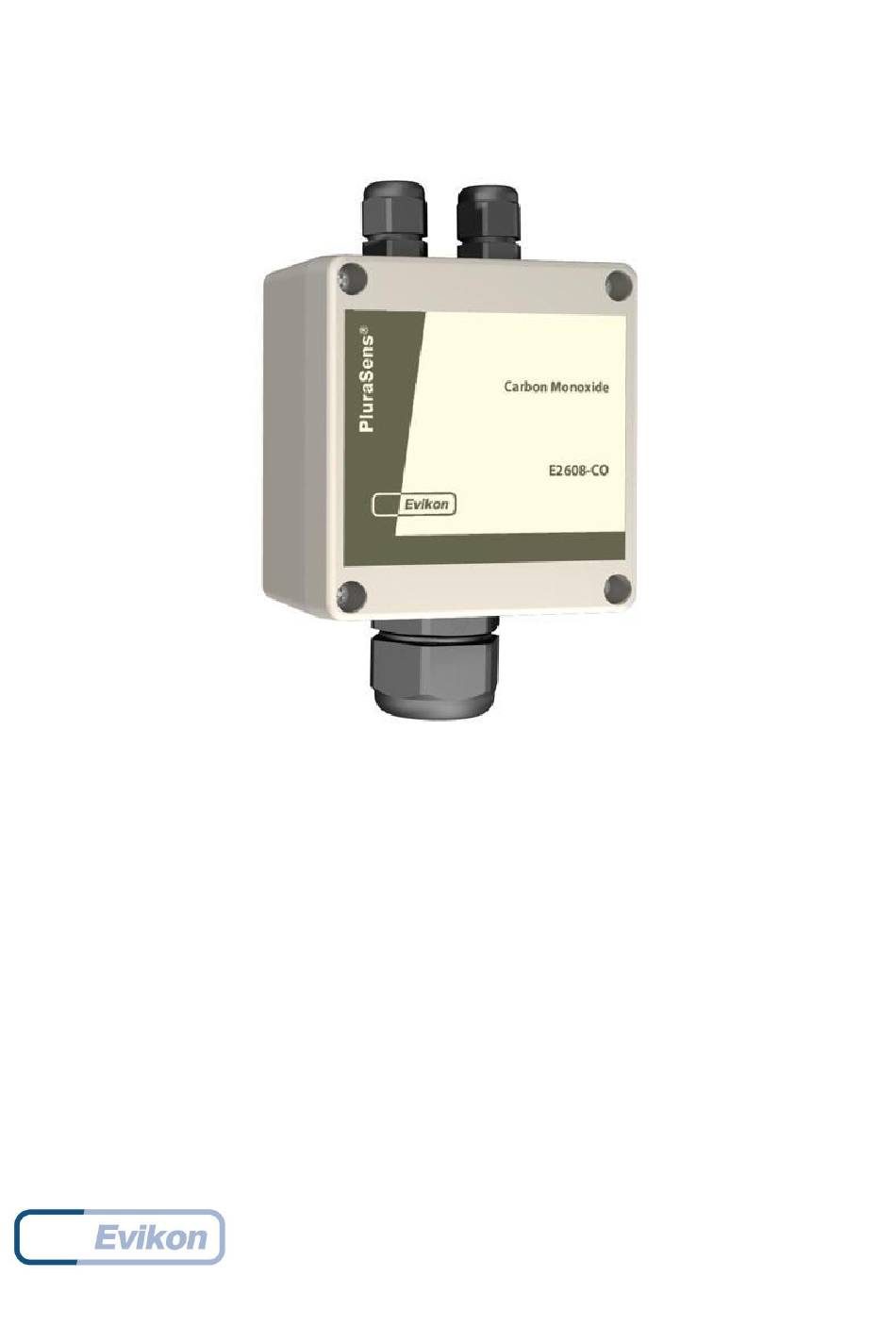

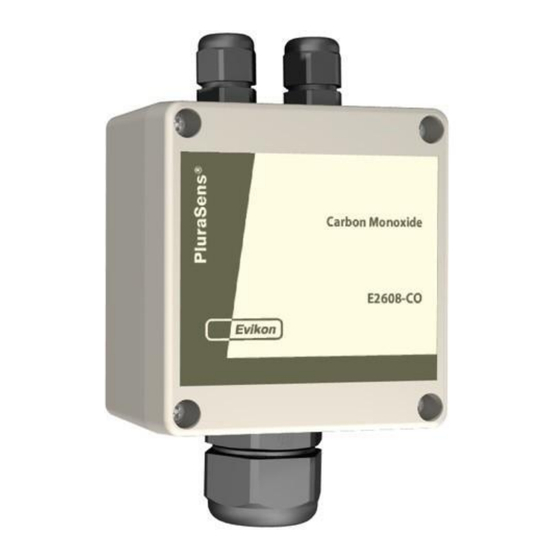

- Page 1 ® PluraSens Carbon Monoxide Detector-Transmitter E2608-CO User Manual...
-
Page 2: Table Of Contents
E2608-CO Rev 08.05.2023 Table of contents Carbon Monoxide Specifications Product description Safety requirements Operating conditions Installation guidelines Wall mount version Duct mount version Mounting dimensions Sensor probe handling Gas sensor replacement procedures Electrical connections Correct and incorrect cabling for 24 VAC Operation Maintenance Calibration... -
Page 3: Carbon Monoxide
E2608-CO Rev 08.05.2023 Carbon Monoxide Carbon Monoxide is a colorless, odorless, and tasteless gas that is highly toxic. Synonyms: Carbonous oxide, Carbon (II) oxide, Flue gas, Monoxide. Chemical formula Molar weight Relative gas density (to air) 0.97 Conversion 1 ppm = 1.15 mg/m Boiling point −191.5 °C Low explosive limit (LEL), % vol. -
Page 4: Specifications
E2608-CO Rev 08.05.2023 Specifications Sensor type Electrochemical cell Sampling method Diffusion Detection range 0...300 ppm 0...1000 ppm Maximum overload 2000 ppm Resolution / digital unit 1 ppm Response time T90 < 30 s Repeatability < ± 5% Signal update Every 1 second Sensor lifetime >... - Page 5 E2608-CO Rev 08.05.2023 -20...+50 °C, 0...90% RH non-condensing, 0,9...1,1 atm explosion safe indoor areas, non-aggressive atmosphere Operating conditions NOTE The sensor may exhibit sensitivity to acetylene, ethylene, hydrogen, and nitric oxide Other options Protection IP65, default cable length 3.0 m; Remote probe max height 80 mm, max diameter 65 mm...
-
Page 6: Product Description
E2608-CO Rev 08.05.2023 Product description E2608 series detectors-transmitters belong to the PluraSens® family of multifunctional measurement instruments. The instruments utilize gas sensors of various types with excellent repeatability, stability, and long lifetime. E2608 series provides two independent analog outputs OUT1 and OUT2, user-selectable to 4-20 mA or 0-10 V. -
Page 7: Installation Guidelines
E2608-CO Rev 08.05.2023 Installation guidelines Before proceeding with the installation it is mandatory to read the Safety requirements section and make sure to comply with all listed instructions. Installation standards EN 60079-29-2 and EN 45544-4 are also recommended for further instructions and related information about the installation. -
Page 8: Mounting Dimensions
E2608-CO Rev 08.05.2023 Mounting dimensions Wall mount version with mounting lugs Duct mount version... -
Page 9: Sensor Probe Handling
E2608-CO Rev 08.05.2023 Sensor probe handling The wall mount version of the detector-transmitter is available with a remote probe (see drawing below for dimensions). The remote probe is connected to the main unit with a shielded cable. The default remote probe cable length is 3 m. Wall mount remote probe with fixing clamp (default version), Remote probe with rubber flange and three self-tapping screws (on request) The sensor probes of all types are equipped with a hydrophobic microporous PTFE filter to... -
Page 10: Electrical Connections
E2608-CO Rev 08.05.2023 Electrical connections Unscrew four lid screws and detach the lid from the device. Use the M16 cable gland to let in cables of the power supply and of the external devices. Attach the power cable to the device without turning it on. - Page 11 E2608-CO Rev 08.05.2023 X5 terminals (optional) 90…265 VAC Phase 90…265 VAC Neutral RE1 NO Relay 1, normally open terminal RE1 COM Relay 1, common terminal RE2 NO Relay 2, normally open terminal RE2 COM Relay 2, common terminal The screwless quick connect spring terminals on the E2608 series devices are suitable for a wide range of wires with a cross-section of 0.2...1.5 mm .
-
Page 12: Correct And Incorrect Cabling For 24 Vac
E2608-CO Rev 08.05.2023 Correct and incorrect cabling for 24 VAC... -
Page 13: Operation
E2608-CO Rev 08.05.2023 Operation Turn on the power. The instrument warm-up time takes about 1 minute after switching on and the final sensor stabilization time to maximum accuracy takes about 30 minutes. The operating status is indicated by the LED on the PCB of the device. The control LED (red) response to different processes is presented in the following table: Mode LED mode... -
Page 14: Delivery Set
E2608-CO Rev 08.05.2023 Delivery set ● Detector-transmitter E2608 (wall mount or duct mount version) Mounting accessories: ● 4 cross-shaped mounting lug with screws and 4 screws with plastic ○ dowels for wall mount version ○ Square Rubber flange for Duct mount option ○... -
Page 15: Configuring
E2608-CO Rev 08.05.2023 Configuring A standard configuration kit includes a USB-RS485 converter, fixed flow regulator, gas tubing with applicators, and a software pack. Please contact your Seller for more information. Gas detector-transmitters E2608 share all functionalities of the PluraSens ® multifunctional detector-transmitter platform. -
Page 16: Modbus Rtu Communication
E2608-CO Rev 08.05.2023 Modbus RTU Communication RS485 communication interface Databits: 8 Supported Modbus functions: Parity: none / odd / even 03 – Read multiple registers Stop bits: 1 or 2 06 – Write a single register Protocol: Modbus RTU Communication parameters Parameter Permitted values Default... - Page 17 E2608-CO Rev 08.05.2023 1200, 2400, 4800, 9600, 19200, 0x0005 5 / 40006 RW Baud rate * 9600 38400, 57600 0x0006 6 / 40007 RW Response delay, ms 1...255 1 – No parity bit, 1 stop bit (default after factory reset) 2 –...
- Page 18 E2608-CO Rev 08.05.2023 2 – gas concentration 9 – control by Modbus control, state set in MHR / 40214 0 – none Parameter tied to relay 2 – gas concentration 0x00D4 212 / 40213 RW 9- – control by Modbus control, state set in MHR / 40215 Forced state for relay 0x00D5 213 / 40214 RW...
- Page 19 E2608-CO Rev 08.05.2023 221 / LOW setpoint for relay 0x00DD 0...65535 (gas units) 40222 Specifications 222 / HIGH setpoint for relay 0x00DE 0...65535 (gas units) 40223 Specifications 223 / LOW setpoint for relay 0x00DF 0...65535 (gas units) 40224 Specifications 224 / HIGH setpoint for relay 0x00E0 0...65535 (gas units)
- Page 20 E2608-CO Rev 08.05.2023 50% off) LED signal off/on if relay2 turned on 257 / 0x0101 Raw gas sensor data 0...4095, ADC units 40258 259 / Gas concentration, 0x0103 0...65535, gas units 40260 gas units 261 / 0% value User 0x0105 -32000...+32000, gas units 40262 for analog output 1...
-
Page 21: Warranty
Manufacturer or damaged by customer error or negligence or if there has been an unauthorized modification. Manufacturer contacts Evikon MCI OÜ Teaduspargi 9, Tartu 50411 Estonia info@evikon.eu...
