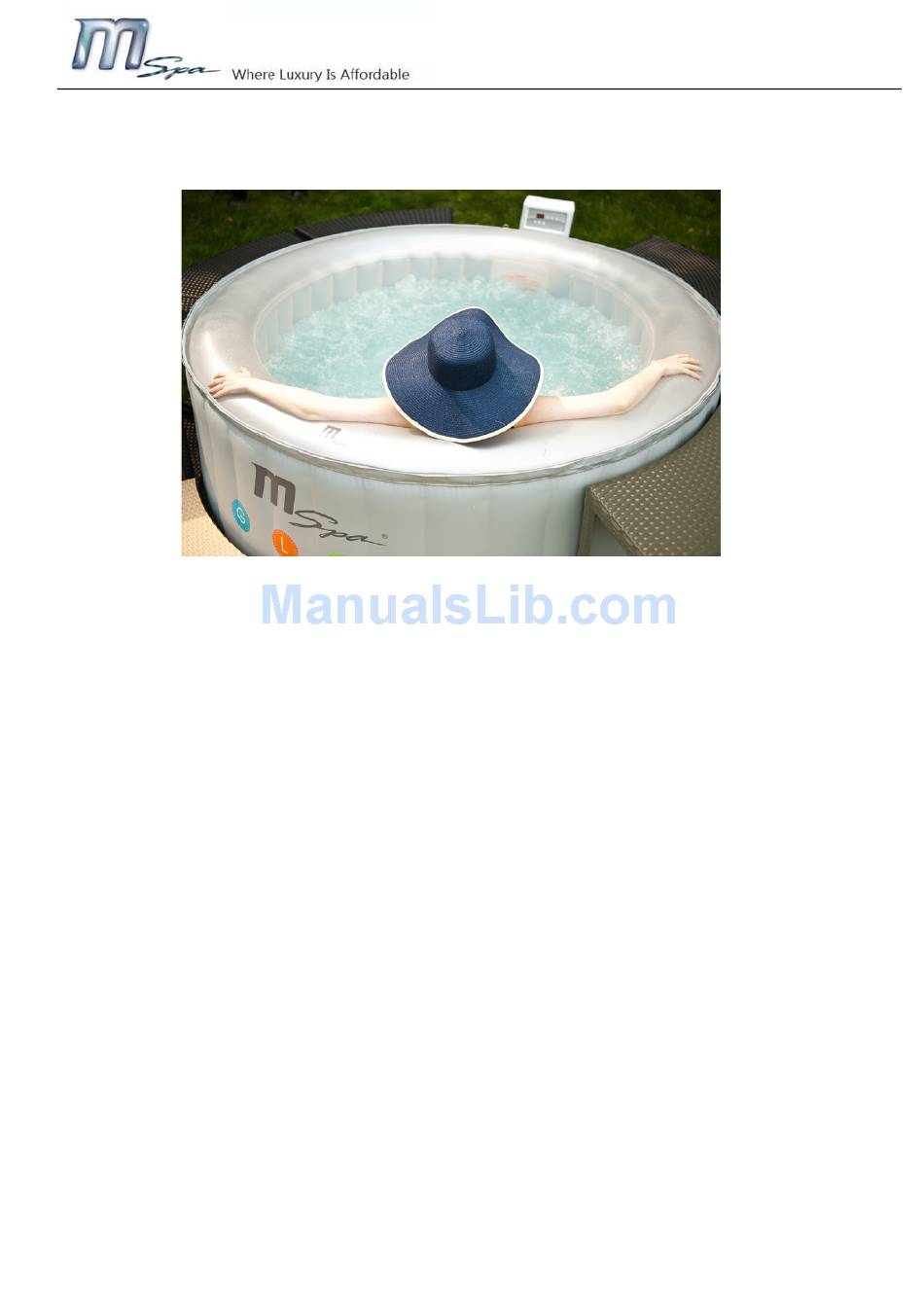

- Page 1 2016 MSpa Service Manual After-sale Service Manual Version: Lite Bubble Spa Oriental Recreational Products (Shanghai) Co.,Ltd MSpa website: www.the-mspa.com - 1 -...
-
Page 2: Table Of Contents
2.11 Water treatment ............................8 2.12 Where to find the serial number? ......................9 Chapter 3. MSpa Assembly, Wire Diagram & Major Electric Parts ................10 MSpa Assembly ............................. 10 MSpa Major Electric Parts ........................11 Wiring Diagram ............................11 Chapter 4. -
Page 3: Chapter 1 After-Sale Service Center Operation And Warranty Policy
1.1.3 Provide a proper sized warehouse to store MSpa spare parts and returned defective parts from customers. 1.1.4 Have a workshop to test and repair defective spas that defect problem cannot be solved by telephone service. -
Page 4: Orpc Warranty Policy
For customers who place full container orders, ORPC provides free service parts along with the 1st container as initial stock. For repeat order, no free service parts are to be provided, unless MSpa distributor/service center's spare-parts MSpa website: www.the-mspa.com - 4 -... -
Page 5: Chapter 2. Important Information And Tips For Using Spa Products
Apart from key electric components, one piece of control box is to be provided as a "rolling service control box". For urgent case, MSpa distributor can send this control box to end-user to replace the defective control box. After repair the returned control box, distributor can keep it in stock for future service. -
Page 6: Filter Cartridge
Heat Preservation Mat is helpful to avoid heat loss from bottom and it provides better heat insulation results with the inflatable bladder in use. It is recommended to have the MSpa heat preservation mats in between the spa and ground. -
Page 7: Try To Repair The Tiny Holes Or Split On Spa Liner Instead Of Replacing A New Spa Liner
Inflatable bladder provides better heat preservation and rain outflow. B0301965 Winter electric heat preservation mat offers great effect to retain constant temperature for Mspa use in the chilly time, fitting to all Mspa models. It is round shape, made of laminated PVC material. 220-240V, 400W, Dia.1.2m (47”) -
Page 8: Temperature Issue
Water treatment Read through the “Water Quality & Filter” sections in the user manual. Always shower before entering the MSpa! To ensure a healthy spa, test your spa water chemistry and balance the pH, chlorine and alkalinity levels by using the test strip every time before using it. -
Page 9: Where To Find The Serial Number
For Mspa produced on/after year 2014, please find the Mspa serial number on the back of control panel, as the left picture shows, the serial number is marked by red rectangle. -
Page 10: Chapter 3. Mspa Assembly, Wire Diagram & Major Electric Parts
2016 MSpa Service Manual Chapter 3. MSpa Assembly, Wire Diagram & Major Electric Parts MSpa Assembly MSpa website: www.the-mspa.com - 10 -... -
Page 11: Mspa Major Electric Parts
2016 MSpa Service Manual MSpa Major Electric Parts Control panel Power board Transformer Filter pump Bubble pump PTC heater Wiring Diagram MSpa website: www.the-mspa.com - 11 -... -
Page 12: Chapter 4 How To Replace Mspa Parts
2016 MSpa Service Manual Chapter 4 How to Replace Mspa Parts Connection 4.1 Power Board Assembly and Wire Terminal 4.2 How to Replace the Filter Pump 2. Turn the control box inside the spa pool upside down, 1. Remove the control panel dismantle the fixed ring of water outlet 3. -
Page 13: How To Replace The Heater Element
2016 MSpa Service Manual 5. Cut off the bindings, unplug the cable connection 6. Take out the original filter pump and assemble a new fitting of filter pump filter pump in reverse order. 4.3 How to Replace the PTC Heater 1. -
Page 14: How To Replace The Power Board
2016 MSpa Service Manual 10. Unplug heater elements cables from the power 9. Take out the power board from the case board 11. Unscrew four screws that fasten heater elements 12. Take out the original heater elements from the onto the control box. Dismantle the detection line of... -
Page 15: How To Replace The Bubble Generator
2016 MSpa Service Manual 7. Take out the power board case 8. Take out the power board from the case 9. Disconnect all electrical cables and detection leads from the original power board and connect all cables to the new power board correctly and assemble the power board into the control box in reverse order. -
Page 16: How To Replace The Check Valve
2016 MSpa Service Manual 5. Take out control box from spa pool 6. Remove the foam 7. Loosen four screws on the top lid 8. Disassemble the mid part of the control box 10. Unscrew four screws that fasten bubble generator 9. -
Page 17: How To Replace The Transformer
2016 MSpa Service Manual 4. Take out the original check valve and put the seal ring 3. Unscrew three screws that fix the check valve in good condition. 5. Assemble a new check valve by screws in reverse order. 4.7 How to Replace the Transformer 1. - Page 18 2016 MSpa Service Manual 9. Take out the power board from the case 10. Unplug Bubble pump cables on the power board 11. Unscrew the screws that fix the transformer onto the 12. Cut off the bindings, disconnect the plug wire of filter control box.
-
Page 19: Chapter 5. Trouble Shooting Guide
2016 MSpa Service Manual Chapter 5. Trouble Shooting Guide The following Check Flow is as attached. Lite Bubble Spa Check Flow – E0 Lite Bubble Spa Check Flow – E1 Lite Bubble Spa Check Flow – E2 Lite Bubble Spa Check Flow – E3 Tips ：... -
Page 20: Air Leakage And Inflation Failure Checking Flow Chart
If a site does in fact have hardy types of grass it is recommended to remove these grasses before initial set up. Do not set up Mspa in a place where it can be flooded with water. - Page 21 2016 MSpa Service Manual Answer: For best results the surface should be perfectly level. Pay close attention to the spa’s stability and levelness in the early stages of filling your spa up with water. If after about an inch of water is accumulated, and the water is not spreading out evenly, or the spa appears to be bulging to one side, stop filling the spa, drain the water, and select a new site.
- Page 22 The customer can check the local pool chemical supplies store for further information. Part Five: Environment For Using 5.1. Can I use MSpa in the rain? Question: MSpa website: www.the-mspa.com - 22 -...
- Page 23 2016 MSpa Service Manual Answer MSpa can leave outside in light rain as it is of IPX5, protection against harmful ingress of water. But we do not suggest people use it with bubbling open because the water may cause air pump damped and rusted which could result the air pump works improperly and will void your warranty.
- Page 24 Answer: If looked after, your MSpa should last for years. The blower of bubble has a lifetime. MSpa blower is Quieter & more durable than like product for > 200 Hours – equal to 600 time of use. For your health concern, MSpa has the auto break design, sets the bubble function for every 20 minutes and auto stop for 10 minutes break.
- Page 25 10.7. How much does it cost to run? Question: Answer: With a full function and half an hour use, the MSpa will cost approximately ￡5 or €3.2 per day. Each function on the pump/uses the following: Massage: 0.5-0.72kW/hr Filter: 0.035-0.06kW/hr Heater: 6.75-1.5kW/hr...
-
Page 26: Chapter 7. Attachment
2016 MSpa Service Manual Chapter 7. Attachment 7.1 Attachment 1 Lite Bubble Spa Check Flow – E0 Lite Bubble Spa Check Flow – E1 Lite Bubble Spa Check Flow – E2 Lite Bubble Spa Check Flow – E3 7.2 Attachment 2 After sales service spare parts for MSpa Lite MSpa website: www.the-mspa.com...
