Quick Start Guide
Thank you for purchasing an ALIX 2 computer.
Your package should contain:
ALIX 2 board
Optional Extras
Case
Compact Flash card
miniPCI card(s)
Pigtail(s) and antenna(s)
Power supply
Please read the following instructions to begin using your ALIX 2.
© Yawarra Tiny Computers
ALIX 2
April 2014
Advertisement
Table of Contents
Related Manuals for Yawarra ALIX 2
Summary of Contents for Yawarra ALIX 2

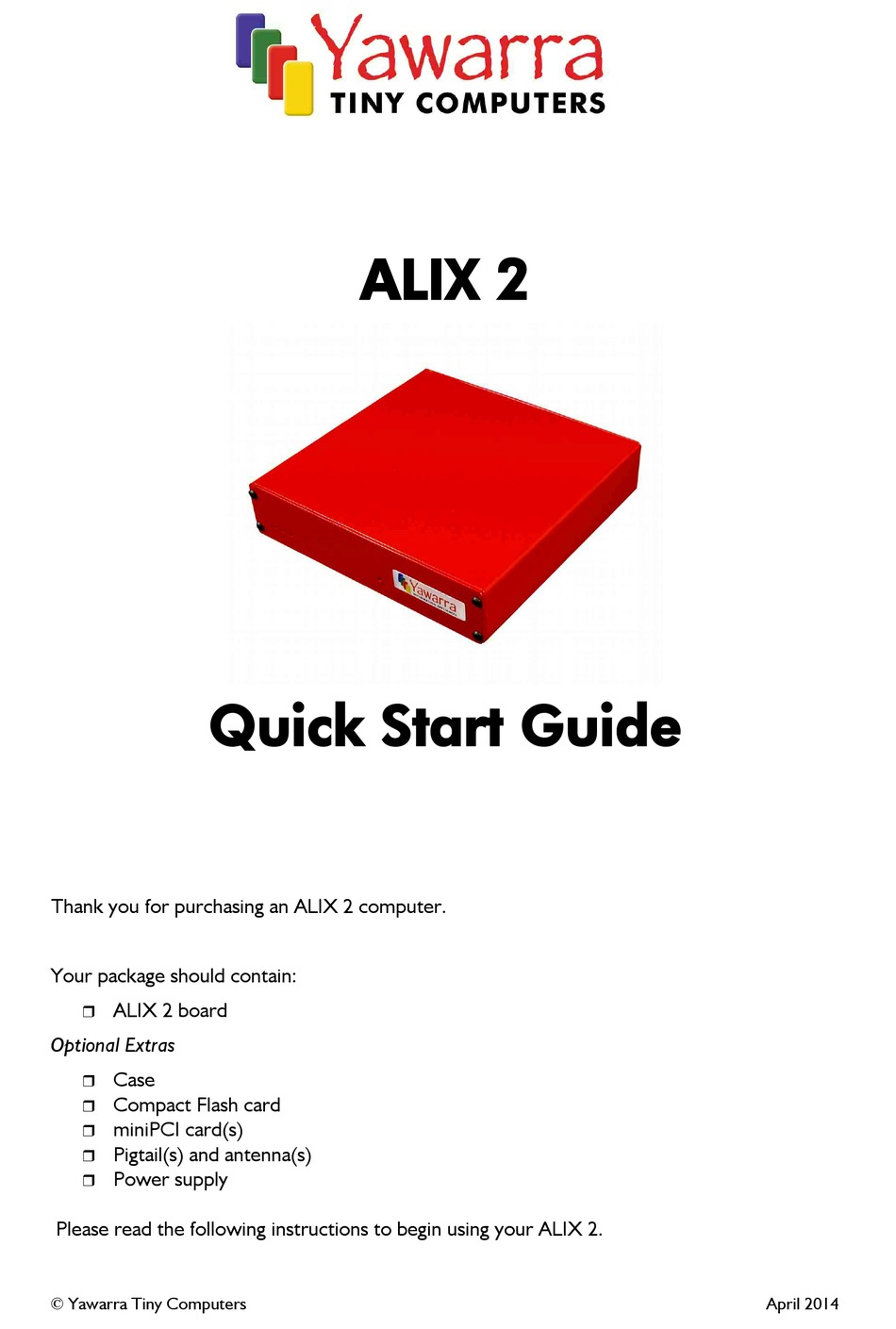

- Page 1 Your package should contain: ALIX 2 board Optional Extras Case Compact Flash card miniPCI card(s) Pigtail(s) and antenna(s) Power supply Please read the following instructions to begin using your ALIX 2. © Yawarra Tiny Computers April 2014...
- Page 2 3. Holding the board by the serial port, carefully slide the board out from the case. Note: You do not need to remove the end plate from the board to set up your ALIX 2 box. To remove the end plate from the board, remove the serial port screws.
- Page 3 Removal To remove the CF card from the ALIX 2 board, grasp the CF card firmly between thumb and index finger and pull straight out, taking care not to lift or twist the card as this may damage the connector pins.
- Page 4 Step 8 Apply power Plug the power supply into the DC jack on the ALIX 2. The ALIX 2 boards run on 7-18V DC, and use about 5W at 12V (excluding miniPCI cards). You'll need a power supply with a 2.1mm internal, 5.5mm external, centre positive plug.
