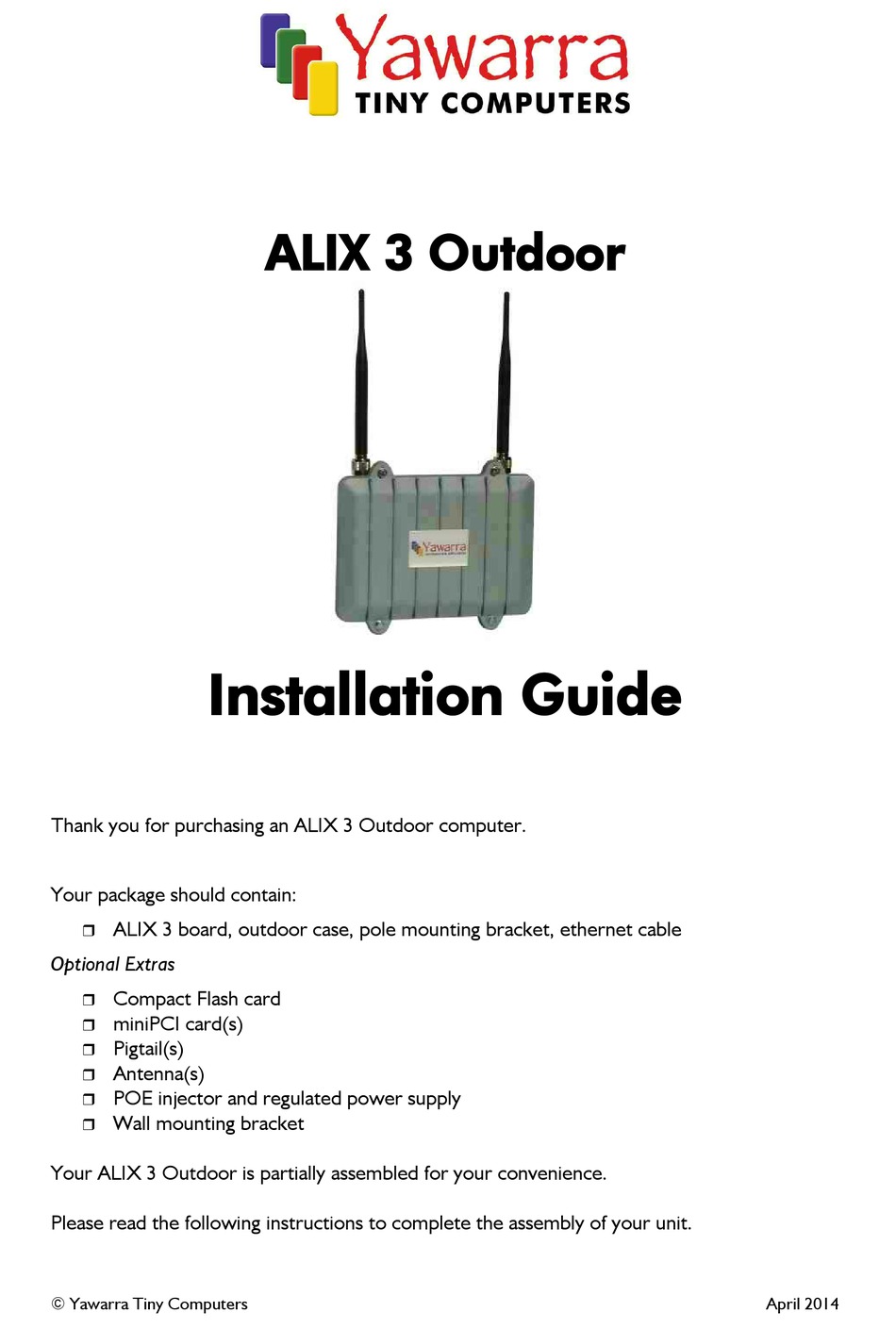

Installation Guide
Thank you for purchasing an ALIX 3 Outdoor computer.
Your package should contain:
ALIX 3 board, outdoor case, pole mounting bracket, ethernet cable
Optional Extras
Compact Flash card
miniPCI card(s)
Pigtail(s)
Antenna(s)
POE injector and regulated power supply
Wall mounting bracket
Your ALIX 3 Outdoor is partially assembled for your convenience.
Please read the following instructions to complete the assembly of your unit.
© Yawarra Tiny Computers
ALIX 3 Outdoor
April 2014
Advertisement
Table of Contents
Related Manuals for Yawarra ALIX 3 Outdoor
Summary of Contents for Yawarra ALIX 3 Outdoor
- Page 1 POE injector and regulated power supply Wall mounting bracket Your ALIX 3 Outdoor is partially assembled for your convenience. Please read the following instructions to complete the assembly of your unit. © Yawarra Tiny Computers April 2014...
- Page 2 Configure and install a Compact Flash card To use your ALIX 3 Outdoor, you will need to install a suitable operating system onto a CF card and insert it into the CF socket on the board. This can be done by mounting a CF card in another machine (e.g.
- Page 3 Install the miniPCI card(s) The ALIX 3 Outdoor has two miniPCI slots – one on each side of the board. In order to access the miniPCI slot on the underside of the board, you will need to remove the board from the case.
- Page 4 Set up the POE injector and apply power Plug the power supply and the ethernet cables into the POE injector. The cable connected to the ALIX 3 Outdoor must be connected to the port marked POE on the POE injector. Contact us Please feel free to contact us if you have any queries regarding your ALIX 3 Outdoor.
