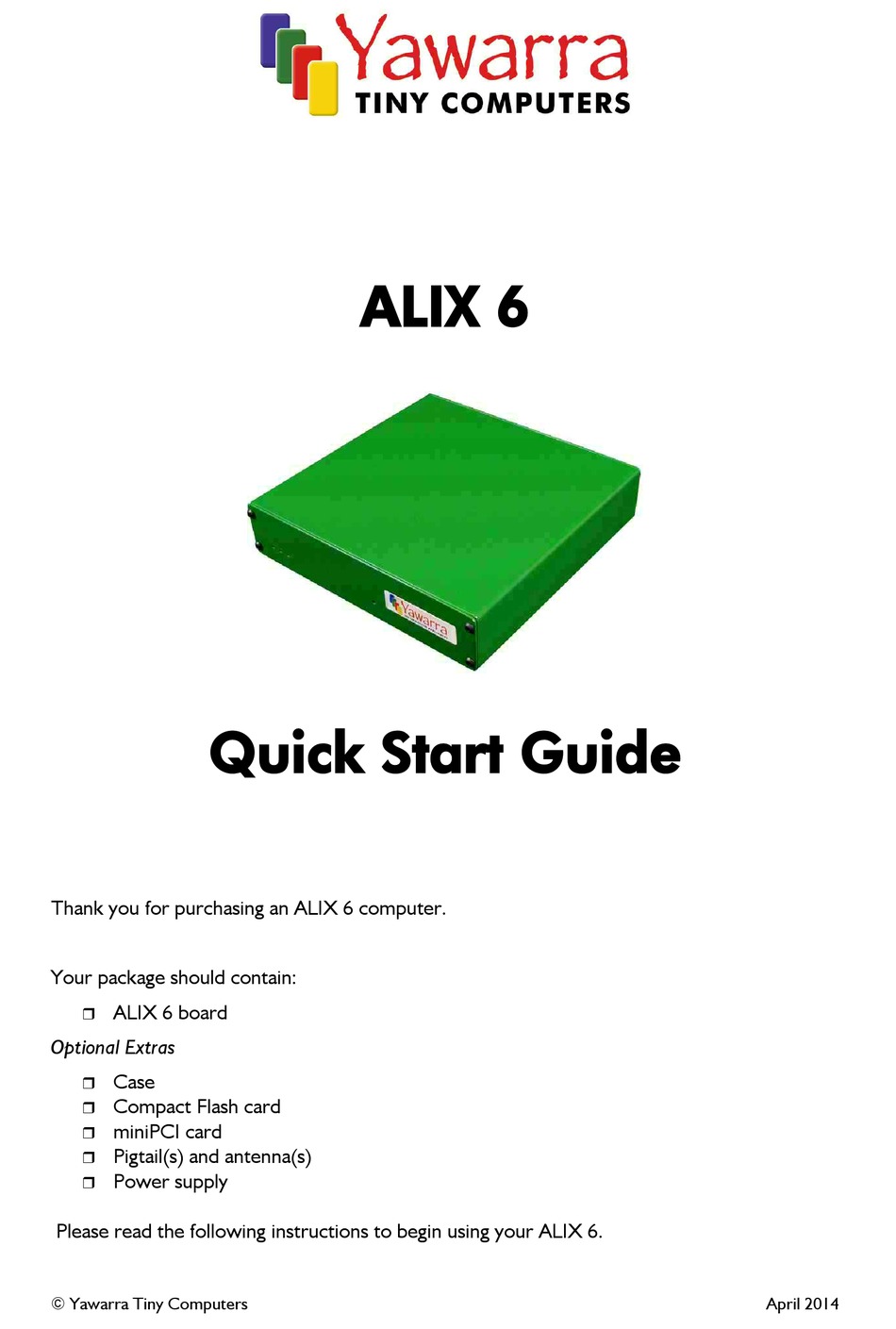

Quick Start Guide
Thank you for purchasing an ALIX 6 computer.
Your package should contain:
ALIX 6 board
Optional Extras
Case
Compact Flash card
miniPCI card
Pigtail(s) and antenna(s)
Power supply
Please read the following instructions to begin using your ALIX 6.
© Yawarra Tiny Computers
ALIX 6
April 2014
Advertisement
Table of Contents
Related Manuals for Yawarra ALIX 6
Summary of Contents for Yawarra ALIX 6
- Page 1 Your package should contain: ALIX 6 board Optional Extras Case Compact Flash card miniPCI card Pigtail(s) and antenna(s) Power supply Please read the following instructions to begin using your ALIX 6. © Yawarra Tiny Computers April 2014...
- Page 2 3. Holding the board by the serial port, carefully slide the board out from the case. Note: You do not need to remove the end plate from the board to set up your ALIX 6 box. To remove the end plate from the board, remove the serial port screws.
- Page 3 ALIX 6 – Quick Start Guide Step 3 Install the SIM card(s) (optional) J17 (top of board): Using a fingernail or small screwdriver, gently unlock the SIM holder tab on the top of the SIM slot by sliding it towards the front of the board (away from the ethernet ports).
- Page 4 Step 10 Apply power Plug the power supply into the DC jack on the ALIX 6. The ALIX 6 boards run on 7-18V DC, and use about 5W at 12V (excluding miniPCI cards). You'll need a power supply with a 2.1mm internal, 5.5mm external, centre positive plug.
