Quick Start Guide

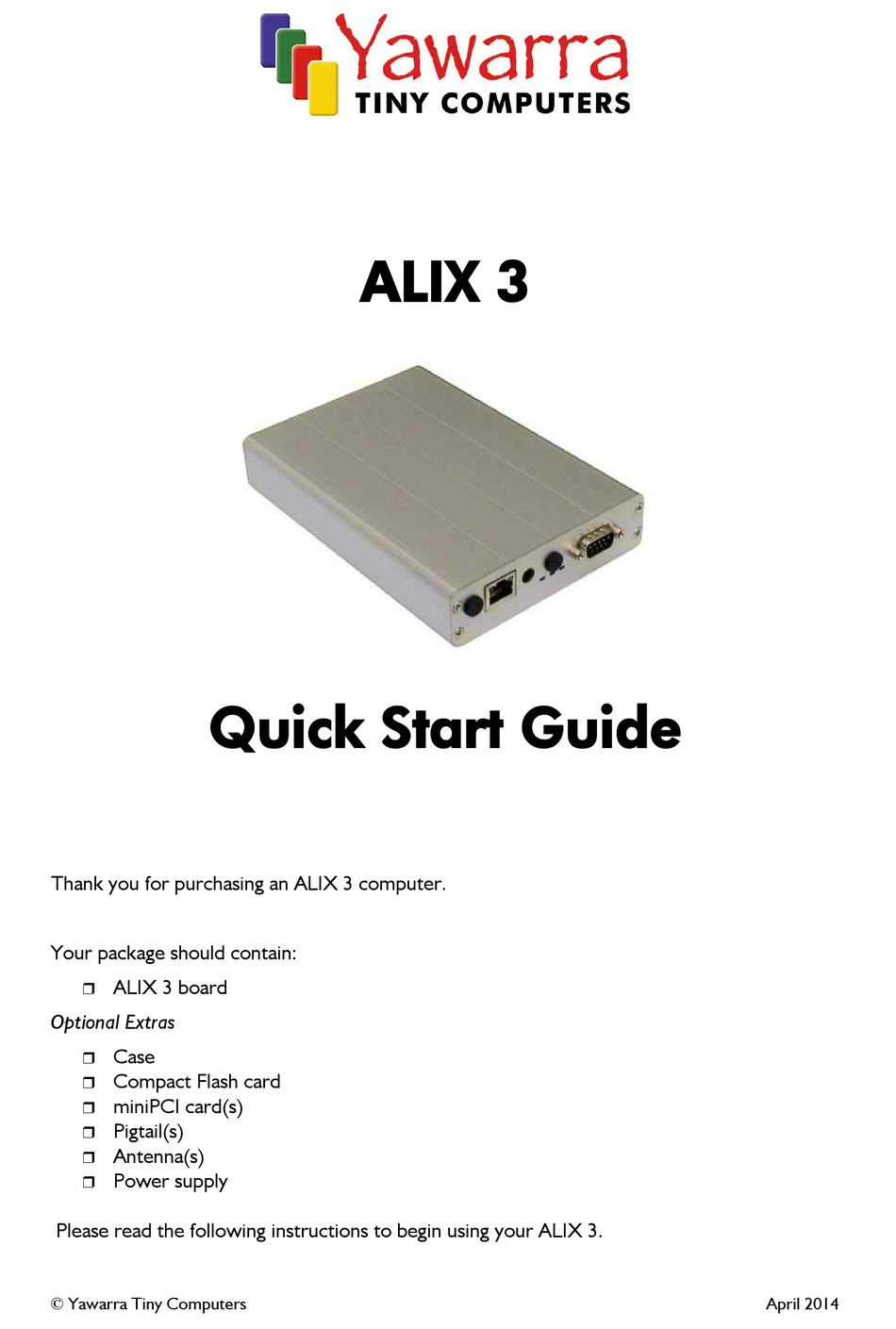

Thank you for purchasing an ALIX 3 computer.
Your package should contain:
ALIX 3 board
Optional Extras
Case
Compact Flash card
miniPCI card(s)
Pigtail(s)
Antenna(s)
Power supply
Please read the following instructions to begin using your ALIX 3.
© Yawarra Tiny Computers
ALIX 3
April 2014
Advertisement
Table of Contents
Related Manuals for Yawarra ALIX 3
Summary of Contents for Yawarra ALIX 3
- Page 1 Your package should contain: ALIX 3 board Optional Extras Case Compact Flash card miniPCI card(s) Pigtail(s) Antenna(s) Power supply Please read the following instructions to begin using your ALIX 3. © Yawarra Tiny Computers April 2014...
- Page 2 3. Holding the board by the serial port, carefully slide the board out from the case. Note: You do not need to remove the end plate from the board to set up your ALIX 3 box. To remove the end plate from the board, remove the serial port screws.
- Page 3 Removal To remove the CF card from the ALIX 3 board, grasp the CF card firmly between thumb and index finger and pull straight out, taking care not to lift or twist the card as this may damage the connector pins.
- Page 4 Step 8 Apply power Plug the power supply into the DC jack on the ALIX 3. The ALIX 3 runs on 7-18V DC, and uses about 5W at 12V (excluding miniPCI cards). You'll need a power supply with a 2.1mm internal, 5.5mm external, centre positive plug.
