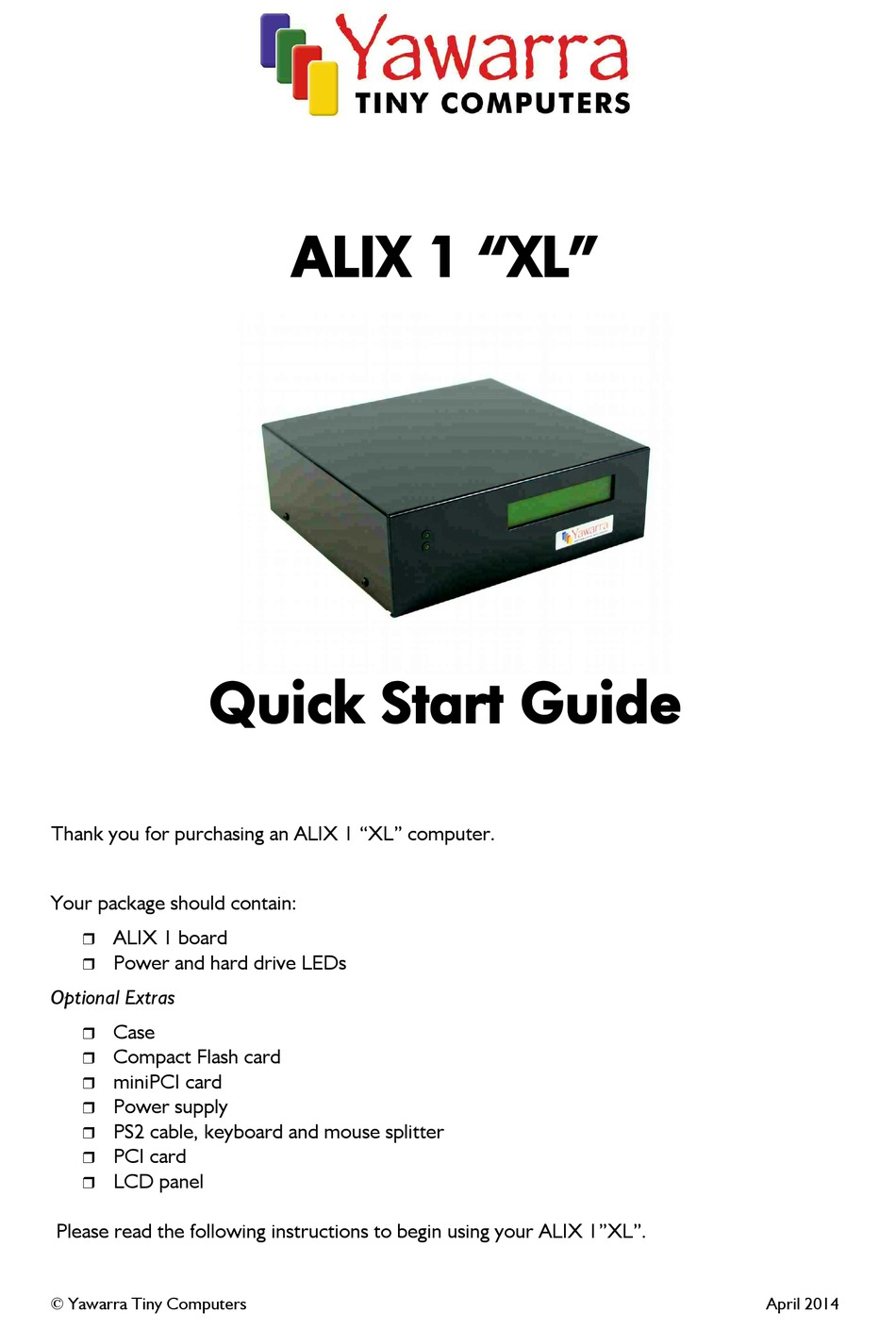

Quick Start Guide
Thank you for purchasing an ALIX 1 "XL" computer.
Your package should contain:
ALIX 1 board
Power and hard drive LEDs
Optional Extras
Case
Compact Flash card
miniPCI card
Power supply
PS2 cable, keyboard and mouse splitter
PCI card
LCD panel
Please read the following instructions to begin using your ALIX 1"XL".
© Yawarra Tiny Computers
ALIX 1 "XL"
April 2014
Advertisement
Table of Contents
Related Manuals for Yawarra ALIX 1 XL
Summary of Contents for Yawarra ALIX 1 XL
- Page 1 Compact Flash card miniPCI card Power supply PS2 cable, keyboard and mouse splitter PCI card LCD panel Please read the following instructions to begin using your ALIX 1”XL”. © Yawarra Tiny Computers April 2014...
- Page 2 To remove the CF card from the ALIX 1 board, grasp the CF card firmly between thumb and index finger and pull straight out, taking care not to lift or twist the card as this may damage the connector pins. © Yawarra Tiny Computers April 2014...
- Page 3 You may need to adjust the jumpers on the corner of the board adjacent to the Compact Flash slot, to determine which devices act as master and slave. Step 6 Replace the case cover Before you can begin using your ALIX 1, you will need to replace the case cover. © Yawarra Tiny Computers April 2014...
- Page 4 More information For more detailed instructions on using your ALIX 1, please visit our website at www.yawarra.com.au and download the manufacturer's user guide. Contact us Please feel free to contact us if you have any queries regarding your ALIX 1.
