Manual version: 6PW102-20170411
H3C S12500-X LST1FW3B1 Card Manual
1 Card identifier
The card identifier LST1FW3B1 is at the upper right corner of the front panel.
2 Introduction
The LST1FW3B1 card provides one console port, one CF card interface, two USB interfaces, two
10/100/1000BASE-T Ethernet copper interfaces, and two Gigabit Combo interfaces.
You can use a combo interface to provide the following functions:
In-band management.
•
•
Outgoing interface for log messages.
•
Failover interface for stateful failover.
3 Specifications

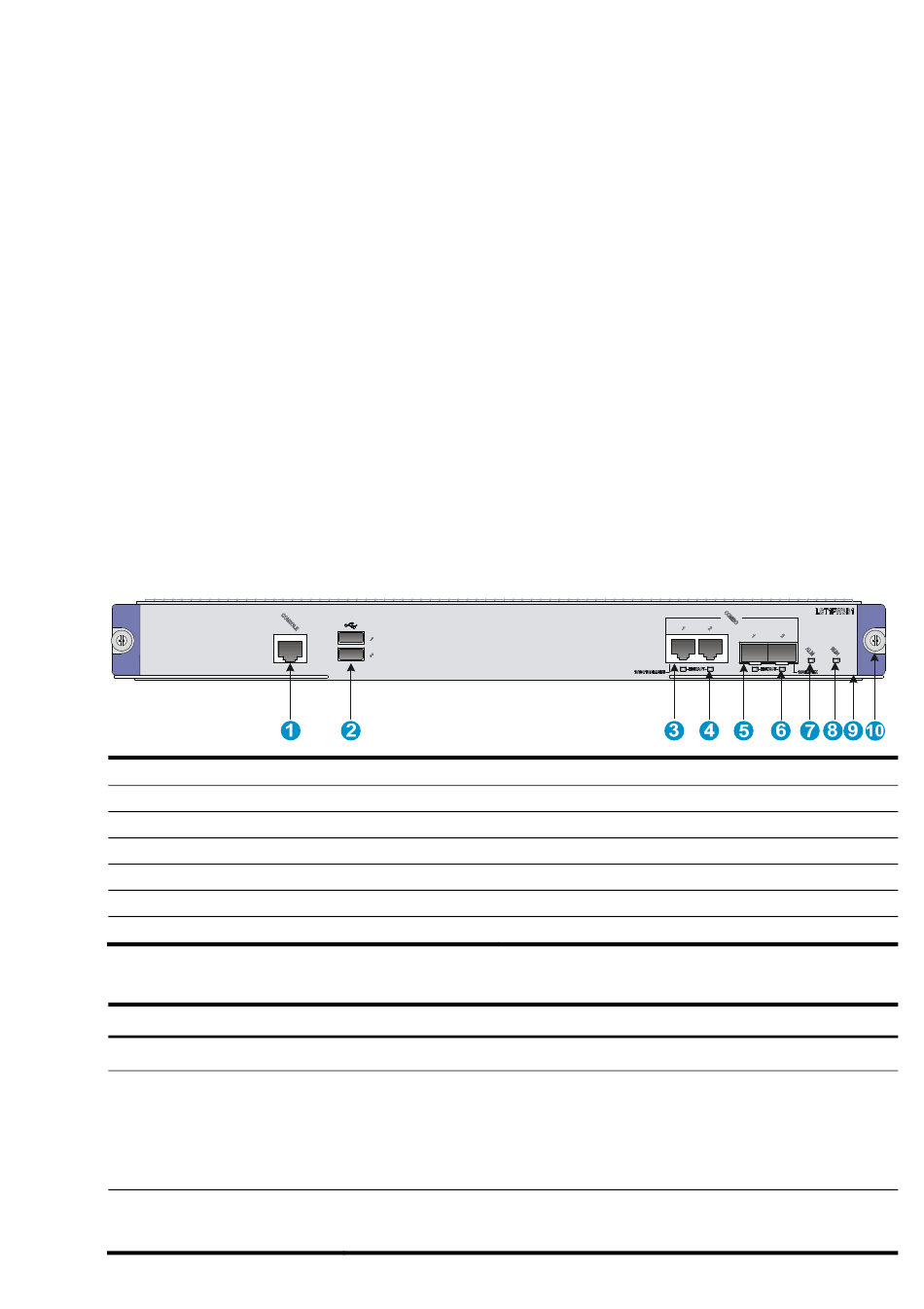

Figure 1 Front panel
(1) Console port (CONSOLE)
(2) USB ports (hardware reserved, software not support currently)
(3) 10/100/1000BASE-T copper combo port
(4) 10/100/1000BASE-T copper combo port LED (LINK/ACT)
(5) 1000BASE-X fiber combo port
(7) Alarm LED (ALM)
(9) Ejector lever
Table 1 Card specifications
Item
Flash
SDRAM
CF card
(6) 1000BASE-X fiber combo port LED (LINK/ACT)
(8) System LED (RUN)
(10) Captive screw
Specification
8 MB NOR flash, 16 bit wide
DDR3 SDRAM
2 slots for SDRAMs
Standard configuration: 16 GB (two 8 GB DDR3 SDRAMs)
Two same-sized DDR3 SDRAMs are required.
One built-in CF card slot
256 MB CF card, expandable to 1 GB
i
BOM: 3123A0T2

Advertisement

loading
Need help?

Need help?

Do you have a question about the S12500-X Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for H3C S12500-X Series

Summary of Contents for H3C S12500-X Series

  • Page 1 Manual version: 6PW102-20170411 BOM: 3123A0T2 H3C S12500-X LST1FW3B1 Card Manual 1 Card identifier The card identifier LST1FW3B1 is at the upper right corner of the front panel. 2 Introduction The LST1FW3B1 card provides one console port, one CF card interface, two USB interfaces, two 10/100/1000BASE-T Ethernet copper interfaces, and two Gigabit Combo interfaces.
  • Page 2 Operating: 5% RH to 95% RH, noncondensing Ambient humidity • Storage: 5% RH to 95% RH, noncondensing • H3C S12500-X series switches Compatible device models System software version See the release notes that come with the card. Table 2 Console port specifications...
  • Page 3 Manual version: 6PW102-20170411 BOM: 3123A0T2 Table 4 1000BASE-X fiber port specifications Item Specification Transceiver module Connector type Interface standard 802.3, 802.3u, and 802.3ab Operating mode 1000 Mbps, full duplex Table 5 1000BASE-X SFP port specifications Maximum Central Gigabit SFP module Connector Cable specifications transmission...

  • Page 4: Installing The Card

    Manual version: 6PW102-20170411 BOM: 3123A0T2 5 Installing and removing the card CAUTION: Wear a well-grounded ESD wrist strap or ESD gloves before you install or remove the card. • Do not touch the components on the PCB. • 5.1 Installing the card Remove the filler panel from the slot for the card at the front of the switch.

  • Page 5: Software Upgrade

    Log in through the card's Web, console port, or Telnet. H3C recommends that you log in to the card from the switch's CLI the first time you access the card. This section includes a procedure for logging in from the switch's CLI. For more information about other login methods, see H3C SecPath Series High-End Firewalls Configuration Guides.
