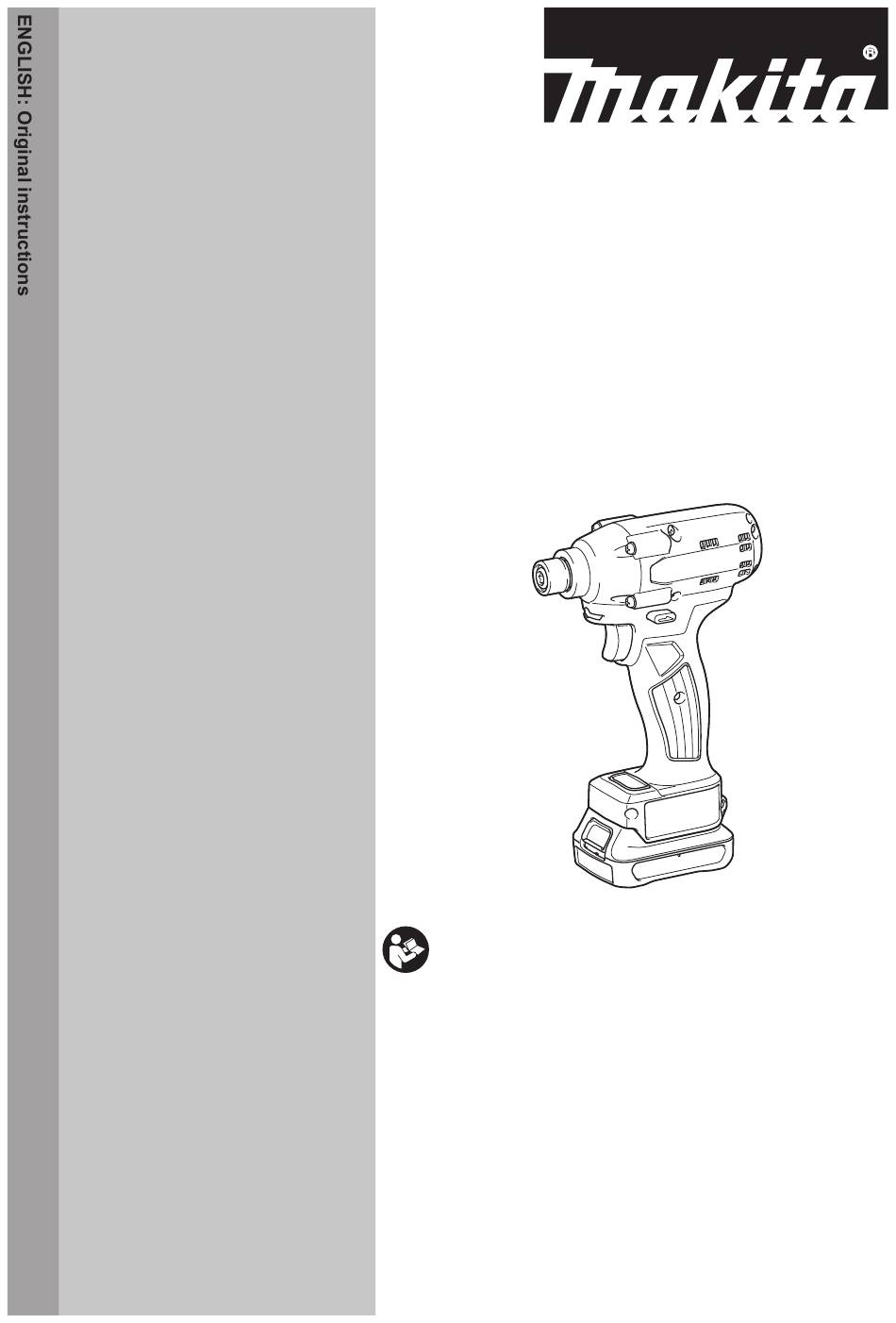

- Page 1 INSTRUCTION MANUAL Cordless Impact Driver TD112D Read before use.
-
Page 2: Specifications
SPECIFICATIONS Model: TD112D Fastening capacities Standard bolt M5 - M14 High tensile bolt M5 - M12 Maximum fastening torque 135 N•m No load speed Hard impact mode 0 - 3,000 min Soft impact mode 0 - 2,000 min Impacts per minute... -
Page 3: Ec Declaration Of Conformity
Electrical safety Vibration Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any The vibration total value (tri-axial vector sum) deter- adapter plugs with earthed (grounded) power mined according to 62841-2-2: tools. Unmodified plugs and matching outlets will Work mode: impact tightening of fasteners of the maxi- reduce risk of electric shock. - Page 4 Do not let familiarity gained from frequent use Keep handles and grasping surfaces dry, clean of tools allow you to become complacent and and free from oil and grease. Slippery handles and ignore tool safety principles. A careless action can grasping surfaces do not allow for safe handling and cause severe injury within a fraction of a second.
- Page 5 It will Avoid storing battery cartridge in a con- also void the Makita warranty for the Makita tool and tainer with other metal objects such as charger.
-
Page 6: Functional Description
Tool / battery protection system FUNCTIONAL DESCRIPTION The tool is equipped with a tool/battery protection system. This system automatically cuts off the power to extend tool and bat- tery life. The tool will automatically stop during operation if the CAUTION: tool or battery is placed under one of the following conditions: Always be sure that the tool is switched off and the battery cartridge is removed... -
Page 7: Electric Brake
Be careful not to scratch the lens of lamp, or consistently fails to quickly stop after the switch trigger it may lower the illumination. is released, have the tool serviced at a Makita service center. Reversing switch action... - Page 8 This tool has a reversing switch to change the direction For battery cartridges with the remaining battery of rotation. Depress the reversing switch lever from the capacity indicator, the automatic stop function can start A side for clockwise rotation or from the B side for coun- regardless of the state of remaining capacity display on terclockwise rotation.
-
Page 9: Installing Hook
Procedure 2 ASSEMBLY To install the driver bit, pull the sleeve in the direction of the arrow and insert the bit-piece and driver bit into CAUTION: Always be sure that the tool is the sleeve as far as it will go. The bit-piece should be switched off and the battery cartridge is removed inserted into the sleeve with its pointed end facing in. -
Page 10: Operation
High tensile bolt OPERATION N•m (kgf•cm) (1224) (1020) (816) (612) (408) The proper fastening torque may differ depending upon the kind or size of the screw/bolt, the material of the workpiece to be fastened, etc. The relation between fas- (204) tening torque and fastening time is shown in the figures. -
Page 11: Maintenance
Discoloration, deformation or cracks may result. To maintain product SAFETY and RELIABILITY, repairs, any other maintenance or adjustment should be performed by Makita Authorized or Factory Service Centers, always using Makita replacement parts. OPTIONAL ACCESSORIES CAUTION:... - Page 12 Makita Europe N.V. Jan-Baptist Vinkstraat 2, 3070 Kortenberg, Belgium Makita Corporation 3-11-8, Sumiyoshi-cho, Anjo, Aichi 446-8502 Japan 885897-222 www.makita.com 20210211...
