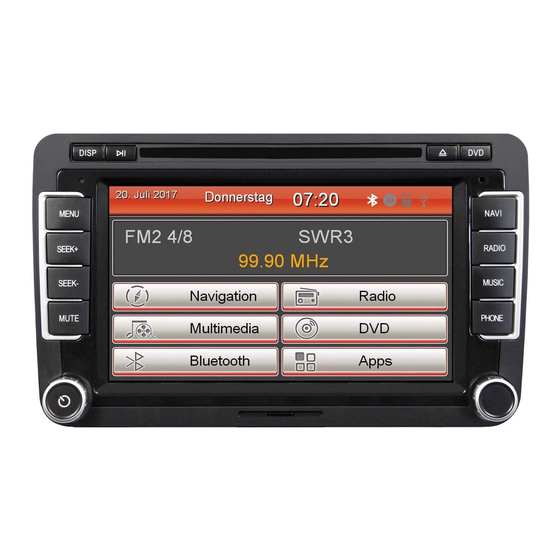

Vision naviceiver
Hide thumbs Also See for VNS720 VW-U1:

Advertisement

Quick Links

VNS720 VW-U1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VNS720 VW-U1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for ESX VNS720 VW-U1

  • Page 1 VNS720 VW-U1...
  • Page 2 IMPORTANT NOTE FOR YOUR VEHICLE‘S SERVICE STATION After installation of the ESX Naviceiver inside the vehicle, the device is not recognized as the original radio and causes an error message in the fault memory of the vehicle (depending on the vehicle, for example „Infotainment...
  • Page 3: Table Of Contents

    Liniendarstellun VNA-RCAM-LO WICHTIGER HINWEIS FÜR IHREN FAHRZEUGSERVICE/IHRE FAHRZEUGWERKSTATT Nach Installation des ESX Naviceivers im Fahrzeug wird dieser nicht als Original-Radio erkannt und verursacht im sogenannten Ereignis- oder Fehlerspeicher des Fahrzeuges eine Fehlermeldung (fahrzeugabhängig z.B. „Infotain- ment CAN, keine Kommunikation“). Diese Fehlermeldung ist in Verbindung mit unserem ESX Gerät normal und kann...
  • Page 4: Scope Of Delivery

    SCOPE OF DELIVERY / Lieferumfang Artikel Abbildung MAIN DEVICE Hauptgerät STYLUS Markierstift REMOTE CONTROL Fernbedienung G71-AUD0119 AUDIO / VIDEO / AV INPUTS Audio / Video / AV-Eingänge G71-MNV0010 AUDIO OUTPUTS 5.1 WITH REMOTE TURN ON Audio-Ausgänge 5.1 mit Einschaltleitung G71-WHE0063 VAR.
  • Page 5: Lieferumfang

    SCOPE OF DELIVERY / Lieferumfang ITEM FIGURE QUANTITY Artikel Abbildung Anzahl G71-CCD0037 CAMERA CONNECTIONS Kamera-Anschlüsse G71-MNV0009 AUDIO/VIDEO OUTPUTS 1/2 Audio/Video-Ausgänge G71-USB0055 USB PORT 1 W/QUICK CHARGE FUNCTION USB-Anschluss 1 mit Schnellldadefunktion G71-USB0072 USB PORT 2 USB-Anschluss 2 G71-USB0065 ADAPTOR FOR FACTORY USB PORT Adapter für werksseitigen USB-Anschluss GPS ANTENNA GPS Antenne...
  • Page 6: Connection Diagram

    CONNECTION DIAGRAM / Anschlussdiagramm AM/FM ANTENNA AM/FM Antenne AUDIO / VIDEO / AV INPUTS Audio / Video / AV-Eingänge AUDIO OUTPUTS 5.1 WITH REMOTE TURN ON Audio-Ausgänge 5.1 mit Einschaltleitung SPECIFIC CONNECTOR USB PORT 1 OF THE VEHICLE QUICK CHARGE Fahrzeugspezifischer USB-Anschluss 1 Stecker...
  • Page 7: Anschlussdiagramm

    ENGLISH IMPORTANT NOTE: Usually the OEM quadlock plug of the vehicle can be used „plug and play“with the ESX Naviceiver, without chan- ging the PIN configuration in any way. Under certain circumstances, e.g. Installation in not appropriated vehicles, for functional testing outside a vehicle or for demonstration purposes, the device can also be operated without the CANBUS signal by using the terminals GND, ACC and BATT.
  • Page 8: Installation Notes

    The „GND“ and „CCD POWER OUT“ cables must not be connected mandatory, but can be used as a power supply for the camera. Now activate the „CCD-Camera“ checkbox under APPS -> OPTIONS -> DISPLAY at the ESX device. Operation note: When the reverse gear is engaged, the device does not allow any other operation, all the buttons and controller except volume control are blocked for security reasons.
  • Page 9: Installationshinweise

    DEUTSCH WICHTIGER HINWEIS: In der Regel wird der OEM Quadlock Stecker des Fahrzeugs „plug and play“ an den ESX Naviceiver angeschlos- sen, ohne dass die PIN Belegung in irgendeiner Weise geändert werden muss. Unter bestimmten Umständen, z.B. Installation in nicht vorgesehenen Fahrzeugen, zur Funktionsprüfung außerhalb des Fahrzeugs oder zu Demonstrationszwecken kann das Gerät auch ohne...
  • Page 10 100mA. 12V werden ausgegeben, sobald an „REVERSE IN“ 12V anliegen. FRONT CCD-POWER OUT rot 12V Ausgang für Stromversorgung einer Nachrüst-Frontkamera, max. 500mA. 12V werden ausgegeben, sobald das ESX Gerät in Betrieb ist. Stellen Sie sicher, dass Ihre Kamera für den Dauerbetrieb geeignet ist. schwarz Masseanschluss der Stromversorgung einer optionalen Kamera (Front u.
  • Page 11 One of the USB ports is needed for the TMC antenna (15). If the vehicle is equipped with a factory USB port, use the adapter (13) to connect the port with the ESX device. USB-Anschlüsse: Verlegen Sie die Kabel (11) oder (12) an den gewünschten Einbauort, wie z.B.
  • Page 12 Depending on the type of vehicle the CAN-BUS sends the information of the handbrake signal to the ESX device. If this is not the case, the included cable (5, BRAKE IN) needs to be connected. The signal must be connected with ground while the handbrake is applied.
  • Page 13: Installation Example

    INSTALLATION EXAMPLE / Einbaubeispiel VOLKSWAGEN GOLF V (2003-2009) 1.) Remove the light sensor from the ventilation grille (depending on model, if applicable) below the windscreen. 1.) Entfernen Sie den Lichtsensor am Lüftungsgitter (Modellabhängig, falls vorhanden) unter der Windschutzscheibe. 2.) Lift the sensor carefully, after you have slightly loosen the left and right fixings.
  • Page 14: Installation Example

    INSTALLATION EXAMPLE / Einbaubeispiel VOLKSWAGEN GOLF V (2003-2009) 5.) Carefully lift the ventilation cover and set it aside. 5.) Heben Sie vorsichtig die Lüfterabdeckung und legen sie beiseite. 6.) Remove both screws (Torx 25) of the ventilation. 6.) Entfernen Sie beide Schrauben (Torx 25) des Lüfters. 7.) Carefully lift the ventilation frame upward, but only a bit, the frame is still connected with the original radio.
  • Page 15: Installation Example

    INSTALLATION EXAMPLE / Einbaubeispiel VOLKSWAGEN GOLF V (2003-2009) 9.) Lift the upper panel a bit. 9.) Ziehen Sie die obere Blende ein wenig nach oben. 10.) Remove both screws of the panel and loose the radio slightly. 10.) Entfernen Sie beide Schrauben der Blende und lockern das Radio ein wenig. 11.) Carefully remove the panel around the radio.
  • Page 16 15.) Lay the connection cable sets of new ESX device (refer to page 4-5) inside the vehicle to the desired location and connect these according with the sockets on the new ESX device. Plug in also the huge car specific and the antenna connector. For a proper connection of the both Fakra jacks you need an additional adaptor (refer to page 2) 15.) Verlegen Sie nun die Anschlusskabel des neuen ESX Geräts (siehe S.
  • Page 17 INSTALLATION EXAMPLE / Einbaubeispiel VOLKSWAGEN GOLF PLUS (2005 - >) 1.) Remove the 2 panels over the original radio with a mounting wedge. 1.) Entfernen Sie die beiden Blenden über dem Original-Radio mit einem Montagekeil. 2.) Disconnect the cable plug on the right panel (Airbag Control Lamp) on the back.
  • Page 18 8.) Lay the connection cable sets of new ESX device (refer to page 4-5) inside the vehicle to the desired location and connect these according with the sockets on the new ESX device. Plug in also the huge car specific and the antenna connector. For a proper connection of the both Fakra jacks you need an additional adaptor (refer to page 2) 8.) Verlegen Sie nun die Anschlusskabel des neuen ESX Geräts (siehe S.
  • Page 19 INSTALLATION EXAMPLE / Einbaubeispiel VOLKSWAGEN GOLF PLUS (2005 - >) 9.) Before you complete the installation, make a function check. Please note that it may take up to 15 minutes, until a GPS signal can be received. ATTENTION: Before you start the function check and turn on the ignition, you must mandatorily reconnect the Airbag Control Lamp (Right panel).
  • Page 20 INSTALLATION EXAMPLE / Einbaubeispiel VOLKSWAGEN GOLF VI (2008 - 2012) 1.) Loosen the radio panel with a mounting wedge. 1.) Lockern Sie die Radioblende mit einem Montagekeil. 2.) Remove then the radio panel. 2.) Entfernen Sie dann die Radioblende. 3.) Note: The radio panel is held by 6 clips 3.) Hinweis: Die Radioblende ist mit 6 Halteclips befestigt.
  • Page 21 7.) Lay the connection cable sets of new ESX device (refer to page 4-5) inside the vehicle to the desired location and connect these according with the sockets on the new ESX device. Plug in also the huge car specific and the antenna connector. For a proper connection of the both Fakra jacks you need an additional adaptor (refer to page 2) 7.) Verlegen Sie nun die Anschlusskabel des neuen ESX Geräts (siehe S.
  • Page 22 NOTES / Notizen...
  • Page 23 NOTES / Notizen...
  • Page 24 ESX Car Media Systems · Audio Design GmbH Am Breilingsweg 3 · D-76709 Kronau/Germany Tel. +49 7253 - 9465-0 · Fax +49 7253 - 946510 www.esxnavi.de - www.audiodesign.de ©2017 All Rights Reserved...
