Summary of Contents for Jensen CMR3710

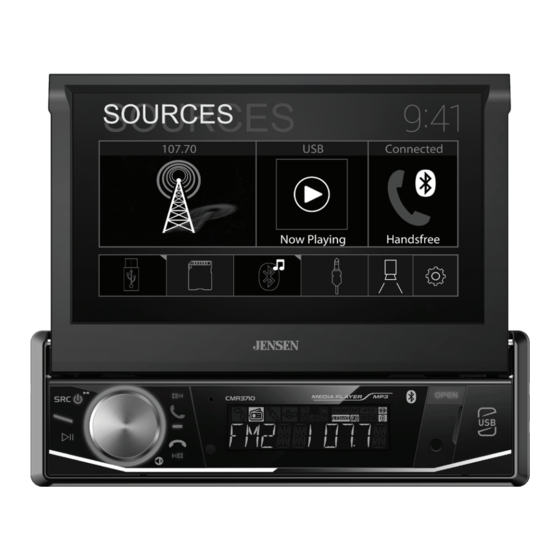

- Page 1 CMR3710 INSTALLATION/OWNER’S MANUAL Multimedia Receiver with Bluetooth® featuring a 7" Touch Screen Display...
- Page 2 Copyright Notes The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. SD Logo is a trademark of SD-3C, LLC. Other trademarks and trade names are those of their respective owners.
-
Page 3: Safety Information
Please read all instructions carefully before attempting to install or operate. Due to its technical nature, it is highly recommended that your Jensen CMR3710 is installed by a professional installer or an authorized dealer. This product is only for use in vehicles with 12VDC negative ground only. - Page 4 CMR3710 OPERATION Preparation Before You Start • Disconnect negative battery terminal. Consult a qualified technician for instructions. • Avoid installing the unit where it would be subject to high temperatures, such as from direct sunlight, or where it would be subject to dust, dirt or excessive vibration.
- Page 5 CMR3710 OPERATION Wiring Diagram - Inputs/Outputs Note: When replacing a fuse, make sure to use the correct type and amperage. Using an incorrect fuse could cause damage. The unit uses (1) 10 amp ATC mini style fuse located on the power connector.
-
Page 6: Control Locations
CMR3710 OPERATION Control Locations BEHIND DOOR 1. Power / Source Mode 8. LCD Display 2. Play / Pause 9. Open TFT - Press to open/close 3. Rotary Volume Up/Down 10. 3.5mm AUX IN 4. Mute - Short Press Rotary 11. USB Media Port / Charging Port 5. - Page 7 CMR3710 OPERATION General Operation Power On/Off Momentarily press to turn the unit on. Press and hold to turn the unit off. Mode Press to step through all available input modes: Radio, SD Card, USB, Bluetooth Phone, Bluetooth Music, Auxiliary Input, Rear Camera and Settings.
-
Page 8: General Operation
CMR3710 OPERATION General Operation From the Main Menu, press the gear icon to access the Setup menu and Setup Menu adjust the following: General, Clock, Audio, Bluetooth, Display and About. General: • System Language - Select English or Spanish. • Tuner Region - Select between America, Europe or Latin America. - Page 9 CMR3710 OPERATION General Operation From any screen, press the Audio button in the lower right corner. Audio Settings Adjust the EQ screen to select EQ settings for the current source. Equalizer The unit had source tone memory, meaning that it will remember the selected EQ settings for each source.
-
Page 10: Am/Fm Tuner Operation
CMR3710 OPERATION AM/FM Tuner Operation Radio Operation Select the Radio icon from the Main Menu screen. Main Menu Press to return to Main Menu screen. Preset Stations Press to recall any preset station stored in the current band. To save presets, tune the radio to desired station, then press and hold the desired preset button to save the station. - Page 11 CMR3710 OPERATION AM/FM Tuner Operation Press << momentarily to seek a lower frequency. Press and hold << Tune Station Down to enter manual tuning mode, then press << again to tune the unit down one step at a time. Displays the current station.
-
Page 12: Usb/Microsd Card Operation
CMR3710 OPERATION USB/microSD Card Operation To play audio files from a USB device or microSD card, insert USB/SD Operation device and playback will begin automatically. To return to USB or microSD card playback from another mode of operation, select the corresponding icon from the Main Menu. -
Page 13: Usb/Sd Card Operation
CMR3710 OPERATION USB/SD Card Operation Press to advance to the next track. Tune/Track Up Displays the total and elapsed time for the current track. Elapsed Time Displays ID3 metadata for the current track. File Information Displays album art for the current track. - Page 14 CMR3710 OPERATION Media Compatibility - USB/microSD Card File Type FAT 12 File System FAT 16/FAT 32 .mp3/.MP3/.Mp3/.mP3 File Extension .rmp/.m4a MPEG 1 MPEG MPEG 2 Format MPEG 2.5 MPEG 1 32/44.1/48kHz Sampling MPEG 2 12/16/22.05/24kHz Frequency MPEG 2.5...
-
Page 15: Bluetooth Operation
CMR3710 OPERATION Bluetooth Operation Preparation Before you can use a Bluetooth device, it must be paired and connected. Make sure that Bluetooth is activated on your device before you begin the pairing process. Pairing a New Device The unit broadcasts the pairing signal constantly when no devices are currently connected. - Page 16 CMR3710 OPERATION Bluetooth Operation Device Manager Press to display a list of paired devices, and select desired device to connect. Dimmer Press to begin or answer a call. Current Number Displays the current phone number. Standby Mode Press the clock to put the unit in standby mode. Press the clock again to return to the source screen.
- Page 17 CMR3710 OPERATION Front 3.5mm Aux Input Auxiliary Input Connect an optional audio source into the 3.5mm (front panel) input. Select auxiliary input from the Main Menu to listen to audio. Adjust volume on the external audio source as needed (if connected to the headphone output of the device).
-
Page 18: Specifications
CMR3710 OPERATION Specifications FM Tuner Tuning range: 87.5MHz-107.9MHz Usable sensitivity: 10dBf 50dB quieting sensitivity: 20dBf Stereo separation @ 1kHz: 38dB Frequency response: 30Hz-13kHz AM Tuner Tuning range: 530kHz-1710kHz Usable sensitivity: 24uV Frequency response: 30Hz-2.3kHz Front USB Compatibility: High Speed USB 2.0... -
Page 19: Limited One Year Warranty
Who is covered? This warranty is extended location of the nearest authorized to the original retail purchaser for products service center please contact us by one purchased from an authorized Jensen of the following methods: dealer and used in the U.S.A. • Call: 888-921-4088 What is covered? This warranty covers all •... -
Page 20: Troubleshooting
CMR3710 OPERATION Troubleshooting General Problem Cause Action Yellow wire not connected or incorrect voltage Check connections for proper voltage (11~16VDC) Unit will not turn on Red wire not connected or incorrect voltage (no power) Black wire not connected Check connection to ground... - Page 21 CMR3710 OPERATION Notes...
- Page 22 Dual Electronics Corp. Toll Free: 888-921-4088 www.jensenmobile.com ©2019 Namsung America Inc. All rights reserved. The Bluetooth ® word mark and logos are owned by the Bluetooth SIG, Inc. Other trademarks and trade names are those of their respective owners. NSA0719-V01...
