Jensen CM715K Installation Manual

Jensen CM715K Installation Manual

Am/fm cassette tape player/cd player
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

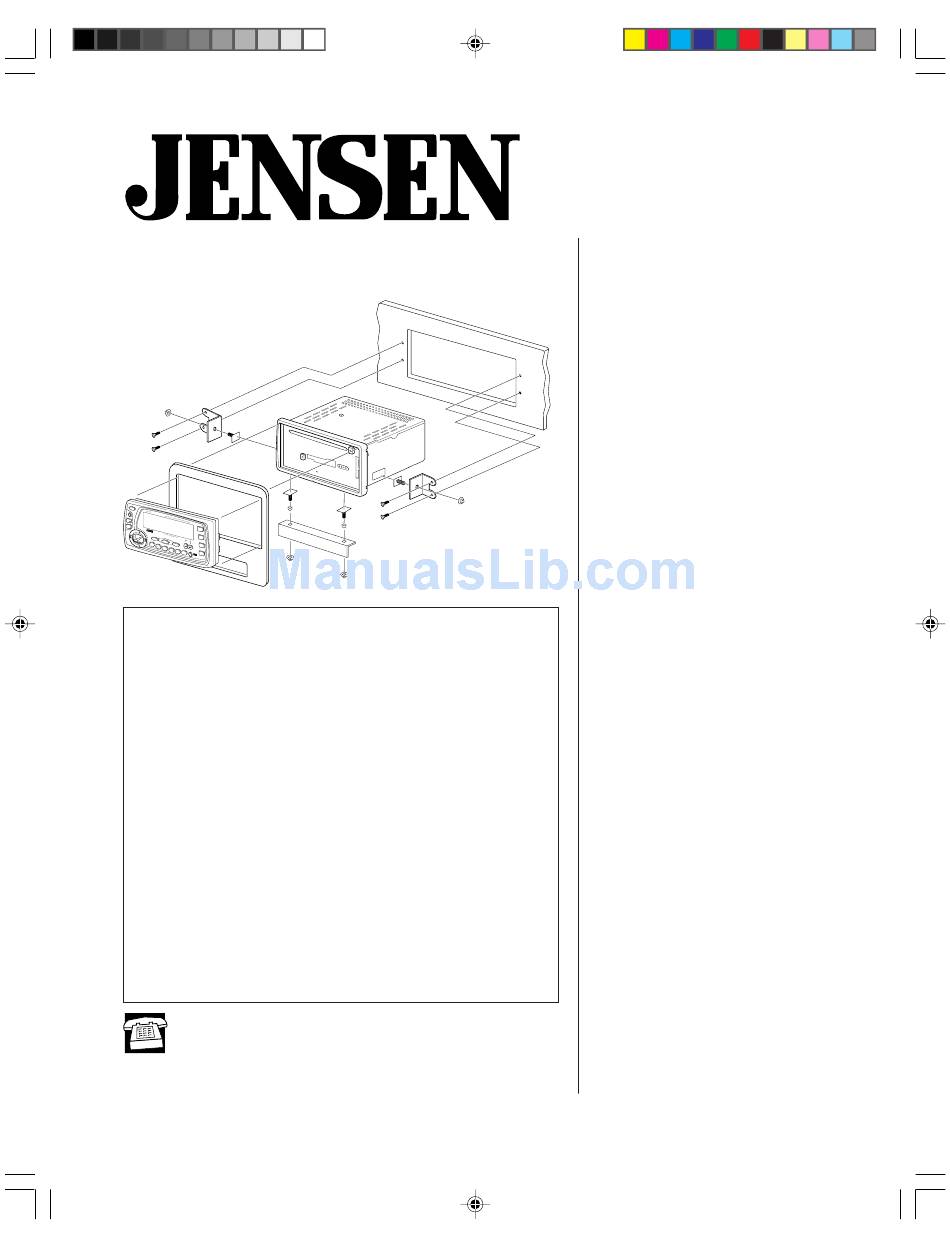

How to Install the CM715K AM/FM
Stereo Receiver/Cassette Tape
Player/CD Player
PWR
A.PS
DISC
SEL
CD
VO L
®
TAP E
DISP
PRO G
LOU D
SCN
MUT E
VO L
BAN D
RPT
3
RPT
A-B
RDM
PGM
6
MEM
COMPA
CDC
CLR
MO
CT
DIGITAL
AUDIO
Welcome!
What you're holding in your hands is no ordinary owner's
manual. We've tried to make the instructions in this book
clear and easy to follow.
For your Jensen stereo to work right, it must be installed
correctly. This manual will show you how to install your new
stereo like a pro. It's a good idea to read all of these instruc-
tions before you begin the installation. Most installations are
straightforward and can be handled by a do-it-yourselfer with
the right tools, patience, and the ability to follow instructions.
But, do-it-yourself installation isn't for everyone. If you still
don't feel confident after reading this book, consider turning
the installation job over to someone better suited to it.
Warranty Service
If your Jensen stereo should ever require service, you will
need to have the original dated receipt. If you ever need to
return the unit for any reason, always include the receipt
with the product.
Technical Assistance
For technical assistance with the installation of the
CM715K, call 1-800-323-0221.
Untitled-3
RE
SE T
1
Installation
®
Contents
Installation ............................. 2
Speaker Requirements .............. 2
Installation .................................. 2
Installation .................................. 2
• Connections ........................ 3
• Crimp Connections ............. 3
Disconnect Battery ..................... 4
Remove Old Radio ..................... 4
Wiring ....................................... 5
• Fuse Adapters ..................... 5
Connect Wires ............................ 6
Wiring Color Codes .................... 6
Attach Wires to Radio ................ 6
Installation .................................. 7
Testing .................................... 8
Reconnect Battery ...................... 8
Test Power Wiring ...................... 8
View/Set the Clock ..................... 8
Test Memory Wiring ................... 8
• Balance ............................... 9
• Fader .................................. 9
Attach Brackets ........................ 10
• GM .................................... 10
Plymouth Sebring ............. 11
Troubleshooting ................ 12
Reset Button ............................ 12
and Warranty ...................... 13
4/10/99, 7:38 PM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CM715K and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Jensen CM715K

Summary of Contents for Jensen CM715K

  • Page 1: Table Of Contents

    We've tried to make the instructions in this book Wiring Diagram–Advanced clear and easy to follow. Installation ........7 For your Jensen stereo to work right, it must be installed Testing ........8 correctly. This manual will show you how to install your new Reconnect Battery ...... 8 stereo like a pro.

  • Page 2: Installation

    Speaker Requirements installation easier. Purchase adapters from your local Jensen retailer, electronics store or Only connect the CM715K to speakers rated in car stereo specialty store. the load impedance range of 4 to 8 ohms. Speakers with a load impedance less than 4 Wiring Harness Adapter ohms could damage the CM715K.

  • Page 3: Connections

    Stretch electrical sound better, great or INCREDIBLE! tape tightly over splice. Better Sound Install a Jensen tape deck or CD player like you’re doing now. High power units can make your existing speakers sound better and play louder.

  • Page 4: Disconnect Battery

    ® CM715K Disconnect Battery Before you begin, always disconnect the battery negative terminal. Remove Old Radio 1. Remove dash trim to expose radio chassis. 2. Remove the screws from the mounting bracket and remove radio. 3. Disconnect wiring harness. 4. Unscrew factory mounting brackets. (Most GM cars only.)

  • Page 5: Wiring

    ® CM715K Wiring Important If wiring connections are made wrong, the unit will not operate properly and it could be damaged. Follow the installation instructions carefully, or have the installation handled by an experienced technician. Professional Tip Fuse Adapters No convenient power wire? Install a fuse adapter having a spade connector.

  • Page 6: Wiring With A Wiring Adapter

    Attach Wires to Radio Splice, crimp or solder the wires from the 1. After splicing the wiring adapter to the Jensen connector to the wiring adapter. Match Jensen connector, attach the connector to the wires according to the chart (below) and the back of the radio as shown.

  • Page 7: Wiring Diagram-Advanced Installation

    Using green/black violet/black an incorrect fuse could damage radio. The CM715K uses one 10 amp (in the green violet filter box) and two 2 amp fast blow AGC fuses as part of rear wiring harness.

  • Page 8: Testing

    ® CM715K Testing Before you finish the installation, you should do the following tests to make sure the wiring is correct and everything is operating properly. Reconnect Battery Test Antenna Connection When wiring is complete, reconnect the battery negative terminal.

  • Page 9: Test Speaker Connections

    ® CM715K Test Speaker Connections These tests make sure the speakers are connected right. If speakers don’t play at all, both wires may not be connected. If the wrong speaker plays (you hear front speakers when you expect rear speakers) make sure you connected the wires right.

  • Page 10: Attach Brackets

    ® CM715K Attach Brackets NOTE : The brackets supplied with 1. Note the position of brackets on the existing your Jensen radio are designed for radio. the following vehicles: 2. Remove the captive bolts and brackets 93-up Firebird/Camaro from your existing radio and transfer to the 94-up Bonneville same location on your new radio.

  • Page 11: Dodge/Chrysler/Plymouth

    ® CM715K Dodge/Chrysler/Plymouth Jeep Grand Cherokee, Dodge Avenger, Plymouth Sebring 1. Note the position of brackets on the exist- ing radio. 1. Note the position of brackets on the exist- 2. Match the brackets found in the hardware ing radio.

  • Page 12: Troubleshooting

    Insert a disc and try again ER-3 appears on display High temperature Wait until temperature returns to normal Can’t find cause of problem Call Jensen Technical Assistance (1-800-323-0221) Reset Button In case of abnormal operation: Use a pencil tip (or other non-metallic object) to press the RESET button.

  • Page 13: Specifications And Warranty

    If the product is shipped for warranty service, authorized Jensen dealer is presented whenever warranty you must prepay the initial shipping charges, but Jensen will service is required. pay the return shipping charges if the product is returned to What is Covered.
