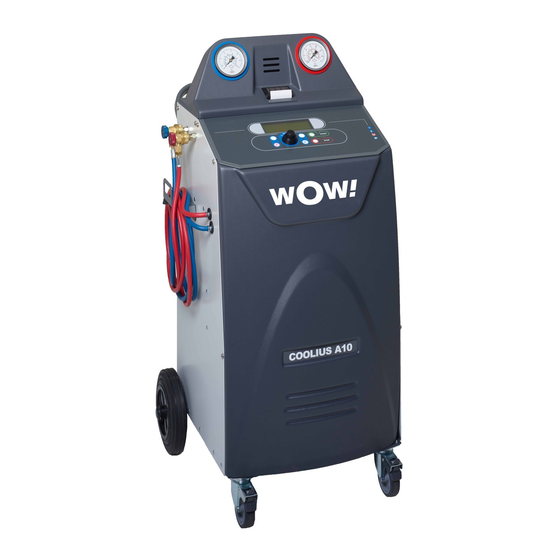

- Page 1 A/C Service-Unit for refrigerant R134a Operating Manual Original Operating Manual Doc.No.: 22092-Rev.03.02...
- Page 2 41 This machine meets the requirements of valid EU directives. 2014/68/EU (PED) 2006/42/EU 2014/30/EU 2014/35/EU The EU Declaration of Conformity can be obtained from: www.coolius-ac.com WOW! Würth Online World GmbH Via della Punta 6/2 48018 Faenza (RA) Italy COOLIUS A10...
-
Page 3: Table Of Contents
5 Programs ..................................... 5.1 New oil bottle change ................................ 5.2 Fast service .................................... Recovery ..................................Vacuum / A/C system charge ..........................5.3 Full service ....................................5.4 A/C database ..................................5.5 Owner Database ................................... 5.5.1 Creation of a vehicle ..............................COOLIUS A10... - Page 4 7 Technical features ..................................8 Disposal ......................................8.1 Storage for long periods ..............................8.2 Disposal of used fluids ................................ 8.3 Disposial of packaging material ............................8.4 Scrapping the old unit ................................. Contact and support ................................9.1 Service Portal COOLIUS-AC.COM ..........................COOLIUS A10...
-
Page 5: Important Notes On The Operating Instructions
Important notes on the operating instructions COOLIUS A10 (the machine) has been designed and built to ensure long lasting, high-level operating reliability with maximum safety for user. This operating manual is part of the machine. Read carefully before use. The user is responsible for the proper use of the machine in accordance with the instructions found in •... -
Page 6: Important Information About Refrigerant
The refrigerant can assume different names depending on the manufacturer! For more information relating to the refrigerant refer to the SAFETY DATA SHEET according to Regulation (EC) No. 1907/2006 (MSDS). The SAFETY DATA SHEET (MSDS) must be delivered to the operator (s) employee (s) using the machine! COOLIUS A10... -
Page 7: Symbols
UV tracer charge: Introduction of UV tracer inside an A/C system in order to detect possible leaks by • means of a UV lamp. Refrigerant charge: Phase during which refrigerant is introduced into an A/C system in the amount • specified by the manufacturer. COOLIUS A10... -
Page 8: General Safety Rules
Recycling of refrigerants The recycling machine’s filter system should be replaced regularly in order to maintain the efficiency of the recycling machine General Notions Before re-introducing refrigerant into the system, the system itself must be evacuated and cleaned. COOLIUS A10... -
Page 9: Safety Devices
The unit has been designed for use at a maximum altitude of 1000 m above sea level, within a tempera- • ture range of +10 and +49°C and with a maximum humidity of 50% at +40°C. Operate in sufficiently lit conditions. • COOLIUS A10... -
Page 10: Use Of The Machine
2. START button / LED 3. STOP button / LED 4. Information button (i) 5. Cancel button (X) 6. COOLIUS SELECT with ENTER button / LED 7. Right button / LED 8. Left button / LED 9. USB-Port /LED fig. 001... -
Page 11: The Machine
Container for new oil 250ml 14 Container for absorbed oil 250ml 15 LP quick coupling 16 HP quick coupling 17 LP hose fig. 002 View Front fig. 003 View back 18 HP hose fig. 005 View right fig. 004 View left COOLIUS A10... -
Page 12: Transport Lock
On/Off and stopping start-up: Move the main switch to the ON position (I) Stopping: Move the main switch to the OFF position (O) Attention! Damage to the machine. Do not switch off the machine by unplugging the mains plug! COOLIUS A10... -
Page 13: Preparation For The Use And Settings
Press the Power Switch (I) to turn on the Machine. The ventilation security system starts. Switch on the machine for the first time Select the display language Turn COOLIUS SELECT to select the language, then con- Select: firm by ENTER. Language 03 After selecting the language, you have two possibilities to ... -
Page 14: Using The Printer
Unlocking the machine The following procedure requires the knowledge of the UNLOCK CODE. 1. By the COOLIUS SELECT enter the UNLOCK CODE. Once done, confirm by START. If the UNLOCK CODE is wrong, repeat the proce- • dure just described. -
Page 15: Download The Service Report
This password can be also used at any time in 34567890 BCDEFGHIJK Other selections > SERVICE Then the display shows: Turn COOLIUS SELECT to select the year to be downloaded then press START to confirm, the display shows: Insert an empty USB stick. Insert a USB stick! NOTE: The file-system of the USB stick must be FAT32, if not please format it. - Page 16 Delete data? Press START to confirm or STOP to go back to previous Confirm again! screen. Press START to confirm, the display shows: Please wait! Wait a few seconds. The recorded data for the selected year is now deleted. COOLIUS A10...
-
Page 17: Program Selection
Refrigerant g. ///// Press ENTER to select a menu item. 01-01-2018 10:20:30 Turn COOLIUS SELECT to select the required program. The symbol shows the current position of the cursor. Full Service The number of symbols shows the number of available ... -
Page 18: Setting
Setting 4.5.1 Machine set-up The procedure allows to set the machine. Turn COOLIUS SELECT to select. Press ENTER to confirm. Recovery data: The data are reported on the ticket (refrigerant Print recovery • quantity and oil). data? The data are not reported. -
Page 19: Time-Date
Hoses length Press ENTER key: Hoses length Turn COOLIUS SELECT to set the service hoses length, Set the HP hose then confirm by ENTER. length (red hose) Language: Turn COOLIUS SELECT to select the language, then con- Select: firm by ENTER. -
Page 20: Company Data
If required, press X key to delete. • It is possible to move in the line by LEFT / RIGHT • Turn COOLIUS SELECT to select the next character. • Press ENTER to confirm. The character is reported on the first line. -
Page 21: Error Messages
If available, open the liquid tank valve (RED). Hose to ext. tank. Otherwise turn the tank up-side-down. Open the valve liquid side. 3. Turn COOLIUS SELECT to set the value. Set the quantity. Minimum: 800 g. • Maximum: the value shown by the display. •... - Page 22 6. Close the tank valve and disconnect the red hose from the tank. Close the external 7. Press START key to confirm. tank valve. Refrigerant recovery from the service hoses Press STOP key to end. Vessel charge end. g.///// COOLIUS A10...
-
Page 23: Programs
If it is required to change the kind of compressor oil, the A/C machine will require flushing to prevent cross contamination of oils. This procedure cleans the hoses and pipes prior to new oil injection. 1. Turn COOLIUS SELECT to select New oil bottl.change OTHER SELECTIONS 2. -
Page 24: Fast Service
• min. 15 Maximum: 999 min. • 2. Press ENTER to confirm. Leak test min. 3. Turn COOLIUS SELECT to set the leak test time. Minimum: 2 min. • Maximum: 60 min. • 4. Press ENTER to confirm. COOLIUS A10... - Page 25 Oil/UV charge AUTOMATIC” / “MANUAL” / “NO Automatic 6. If “ ” is selected: AUTOMATIC Turn COOLIUS SELECT to set the Fresh oil value. PAG Oil ml. 10 UV Dye Note: The value indicates only the new oil added to the drained oil.
-
Page 26: Full Service
2. Turn COOLIUS SELECT to select “ ” FULL SERVICE 3. Press ENTER to confirm. 4. Turn COOLIUS SELECT to set the amount of refriger- Set charge amount: ant to be charged into the A/C system. Minimum: 50 g. •... -
Page 27: A/C Database
Hyundai 4. Press ENTER to confirm. 5. Turn COOLIUS SELECT to select the model. Hyundai 6. Press ENTER to confirm. 7. Turn COOLIUS SELECT to select the version of the Hyundai same car. 2012- 8. Press ENTER to confirm. COOLIUS A10... -
Page 28: Owner Database
, you have the ability to create their own, frequently used vehicle data. OWNER DATEBASE 5.5.1 Creation of a vehicle 1. Enter in A/C DATABASE Owner DataBase Turn COOLIUS SELECT counter clockwise, the display shows: Confirm by ENTER. NOTE: The display could show for a PLEASE WAIT! very short time. -
Page 29: Selection Of A Vehicle
7. Set the quantity of refrigerant by COOLIUS SELECT (from Quantity: 50 to 5.000). Press START to save. The record is saved in alphabetical order. 5.5.2 Selection of a vehicle 1. Enter in A/C DATABASE Turn counter clockwise, the display... -
Page 30: Open Program
Open program 1. Press ENTER to go to selection menu (if in Stand-by mode). Open program 2. Press ENTER to confirm. 3. Turn COOLIUS SELECT to select the program or more Recovery programs. The following selections are available: • “RECOVERY”... -
Page 31: Vacuum
• min. 20 Maximum: 999 min. • 2. Press ENTER to confirm. Leak test min. 3. Turn COOLIUS SELECT to set the leak test time. Minimum: 2 min. • Maximum: 60 min. • 4. Press ENTER to confirm. 5.6.3 A/C system charge A) In case of vacuum selected. - Page 32 Verify the A/C At the end confirm by STOP. system pressures 3. Perform the instruction. Disconnect the HP Press START to confirm service hose (red) from the A/C system 4. Wait the end. Refrigerant recovery from the service hoses. COOLIUS A10...
-
Page 33: A/C Flushing (Unlock Code Required)
+497940981888188. 1. Press START to confirm. Get UNLOCK CODE register: CC222222 www.coolius-ac.com 2. By the COOLIUS SELECT enter the UNLOCK CODE A******* 3. Once done, confirm by START. 34567890 BCDEFGHIJK In order to clean the vehicle A/C system, the equipment performs a washing process in “single or Multi pass” (multiple flushes). -
Page 34: Maintenance
REPORT 3. Press ENTER to confirm. Operation history By this menu is possible to check the operation history of the machine. The data are not erasable! 1. Turn COOLIUS SELECT to select the following coun- Select counter. ters: R134a recovered •... -
Page 35: Counter Reset (Unlock Code Required)
Only genuine spare parts or their equivalent The use of replacement parts which are not of equivalent quality may damage the machine! Go to website www.coolius-ac.com or call the hotline +497940981888188 to get the UNLOCK CODE for maintenance counter reset.. -
Page 36: Filter Replacement
Before working on the machine, always disconnect the plug from the power supply. 2. Dismount the front cover. 3. By 38 mm wrench unscrew the filter Note! Disposal in according to local directives! 4. Lubricate and place correctly the new O-rings. 5. Assembly the new filter. fig. 010 Filter replacement COOLIUS A10... -
Page 37: Vacuum Pump Oil Replacement
5. Refit the muffler. Note: The picture could show a different type of vacuum pump. 1 Muffler 2 Sight glass to indicate the oil level 3 Discharge screw 4 Discharge hole 6. Reassemble the front cover. fig. 011 Vacuum pump COOLIUS A10... -
Page 38: Report
Report The machine records the refrigerant usage monthly for the previous twelve months. Beyond this period, it will overwrite the data for the month in question. 1. Turn COOLIUS SELECT to select the following coun- 01/2017 ters: • REFRIGERANT RECOVERED FROM... -
Page 39: Technical Features
Service hoses compensation Automatic Flushing program On demand Workshop program Configuration Display 4 x 20 characters Keyboard with COOLIUS SELECT Car Database (32 Mb) Printer YES / On demand Gauges (pulse free) CL 1.0 D 80 mm Service couplings Parker SAE J639 Service hoses 3.0 m... -
Page 40: Disposal
Scrapping the old unit If you wish to scrap the Machine, first completely drain it of all liquids and dispose of them in an environmentally responsible manner. Take the old unit to your nearest recycling centre or contact the customer service. COOLIUS A10... -
Page 41: Contact And Support
Fax: +46 520 470 727 info@wow-portal.com info@wabcowuerth.com info@autocom.se www.wow-portal.com www.wabcowuerth.com www.autocom.se Service Portal COOLIUS-AC.COM On the website www.coolius-ac.com the activation of the machine can be carried out independently. In addition, you will find further help and instructions for your COOLIUS device on this website. - Page 42 Viale della Stazione 7 © by WOW! ITALY Wealsoreservetherighttoerrors,andcannotbe held 39100 Bolzano All rights reserved. responsible for typographical mistakes. Our gene- www.coolius-ac.com Responsible for content: Product dept. ral terms and conditions apply.
