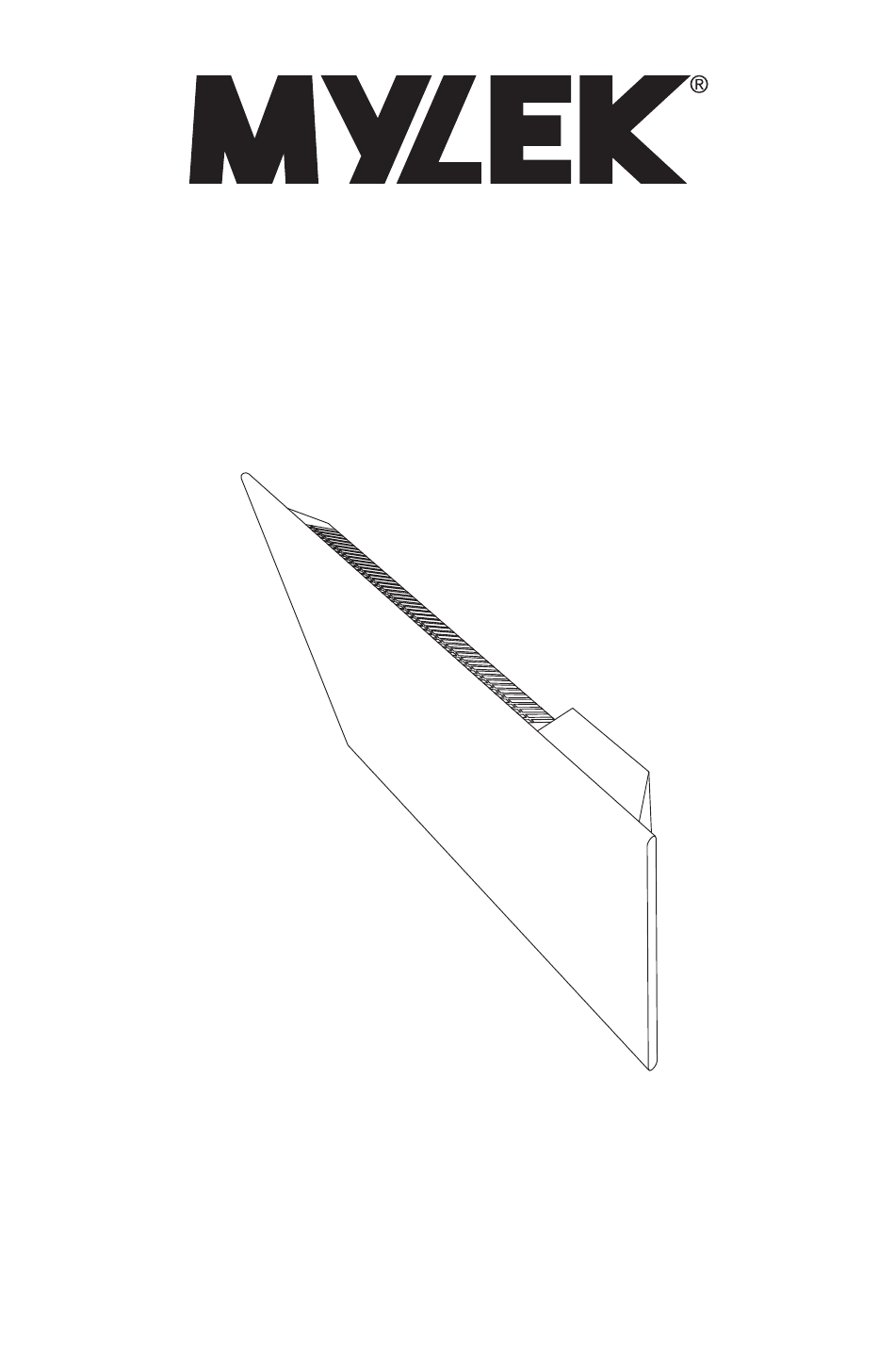

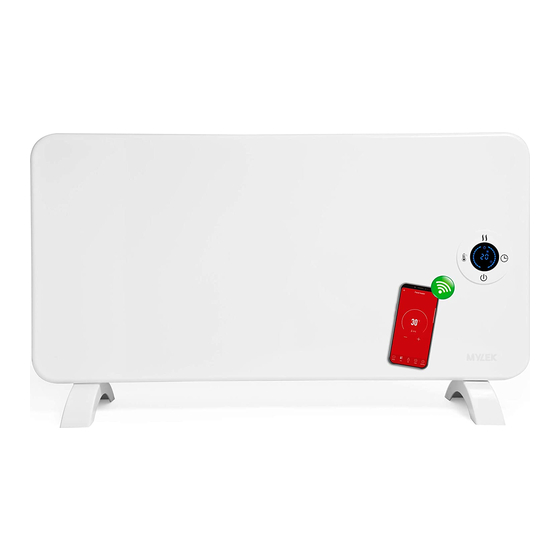

Mylek LED Panel Heater
INSTRUCTION MANUAL FOR MODELS
SPH05-05R / SPH05-10R / SPH05-15R / SPH05-20R
SPH03-10R
BEFORE USE:
Please read the instructions carefully. You must inspect the appliance including its
cable and plug for any signs of damage. If the product is damaged, DO NOT USE
and contact your supplier immediately for refund or replacement.
This product is only suitable for well insulated spaces or occasional use.
1
|
Page
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Mylek SPH05-05R
Summary of Contents for Mylek SPH05-05R
- Page 1 Mylek LED Panel Heater INSTRUCTION MANUAL FOR MODELS SPH05-05R / SPH05-10R / SPH05-15R / SPH05-20R SPH03-10R BEFORE USE: Please read the instructions carefully. You must inspect the appliance including its cable and plug for any signs of damage. If the product is damaged, DO NOT USE and contact your supplier immediately for refund or replacement.
-
Page 2: General Information
General Information: Thank you for choosing the Mylek LED weekly programmable Panel heater with Open window function. Please take time to carefully read and understand the entire instruction manual before using the product and then save it for future reference. We reserve the right for any errors in text or images and any necessary changes made to technical data. - Page 3 • The heater should only be plugged into grounded sockets. • Before plugging in the heater, make sure it is switched off. • Do not use the appliance near flammable liquids or any flammable materials. • The appliance must not be located immediately below a socket outlet. •...
-
Page 4: Installation
Installation: • The heater carries an IP24 waterproof rating, If this unit is to be fitted in a bathroom then it must be “INSTALLED BY A QUALIFIED ELECTRICIAN”. • The LED panel heaters can be wall-mounted. • Place the hanging bracket level against the wall as a guide ruler (please make sure the holes are parallel level), use a marker pen to mark the hole position. -
Page 5: Control Panel
Image 1 Image 2 Image 3 Image 4 Figure 2 Control Panel: Standby Mode selection Open window function Increase function ① Standby: on/off. ② Heating function Decrease function ③ Open window function ④ Comfort mode Timer ⑤ ECO mode ⑥ Timer Page... -
Page 6: How To Operate
How to Operate: • Plug the appliance into a AC 230-240V 50-60Hz socket, the unit will “beep” once. The indicator light illuminates for standby mode. • Press to turn on the heater. For the first use the heater is in factory default settings as shown below: (If default settings are different, it will simply be be- cause the unit has been quality tested after production). -
Page 7: Standard Heating Mode
Please note: If the unit is in standby mode the unit will keep the clock and day settings. Depending how long the unit is switched off at the mains or unplugged, the clock and day may need to be reset when powered back up. Standard Heating Mode: This mode can be used without the use of the weekly timer by choosing Comfort mode or... - Page 8 Using the Preset programmes 1 and 2: Note: Clock and day setting must be set for correct usage of P1/P2 programs. It is advised to set day and clock in advance for the programmes to work correctly. Programmes P1 and P2 are not adjustable and are pre-set. To choose programme P1 or P2 below press the button until P1 or P2 is chosen.
- Page 9 Program P2 • P2 (Figure 2) is a preset programme Monday-Friday and Saturday -Sunday. See image below for P2 preset programme which shows the unit settings in a 24hr period which will repeat over a 7 day period. (The images (Figure 2 and 3) be- low are just for illustration purposes only and not shown on the LED display.) P2:(Monday-Friday) preset program 00:00am –...
- Page 10 Using the adjustable program 3: P3: Can be adjusted to meet your requirements. P3 is the only programme that can be set to your requirements, each day and hour can be set individually by following the instructions below. • Below are examples of what you can adjust P3 programme to, although you can adjust this programme to meet your own requirements.
-
Page 11: Open Window Function
Continued, how to adjust P3 program setting: 1. Press until P3 mode is chosen and displayed; press for 4 seconds until is displayed and flashing. 2. Press to choose the day you want to set from (Monday- Sunday). Press to confirm the Day. 3. -
Page 12: Pat Testing
Model SPH05-05R SPH05-10R SPH05-15R SPH05-20R SPH03-10R Power 450-500W 900-1000W 1350-1500W 1800-2000W 900-1000W PAT TESTING: When used in a workplace, this product must be safety-tested yearly by a qualified electrician (PAT Tested) in order to comply with the Electricity at Work Regulations. - Page 13 Information requirement for the electric local space heaters Model identifier(s): SPH05-05R Item Symbol Value Unit Item Unit Heat output Type of heat input, for electric storage local space heaters only (select one) Nominal heat output Pnom 0.45- kW manual heat charge control, with integrated 0.50...
- Page 14 Model identifier(s): SPH05-15R Item Symbol Value Unit Item Unit Heat output Type of heat input, for electric storage local space heaters only (select one) Nominal heat output Pnom 1.35- kW manual heat charge control, with integrated 1.50 thermostat Minimum heat output Pmin 1.35 kW manual heat charge control with room...
- Page 15 YESSS Electrical, YESSS House, Normanton, WF6 1TN declares that the Mylek Heaters are exclusively manufactured and imported for Hygiene Supplies Direct Ltd.
