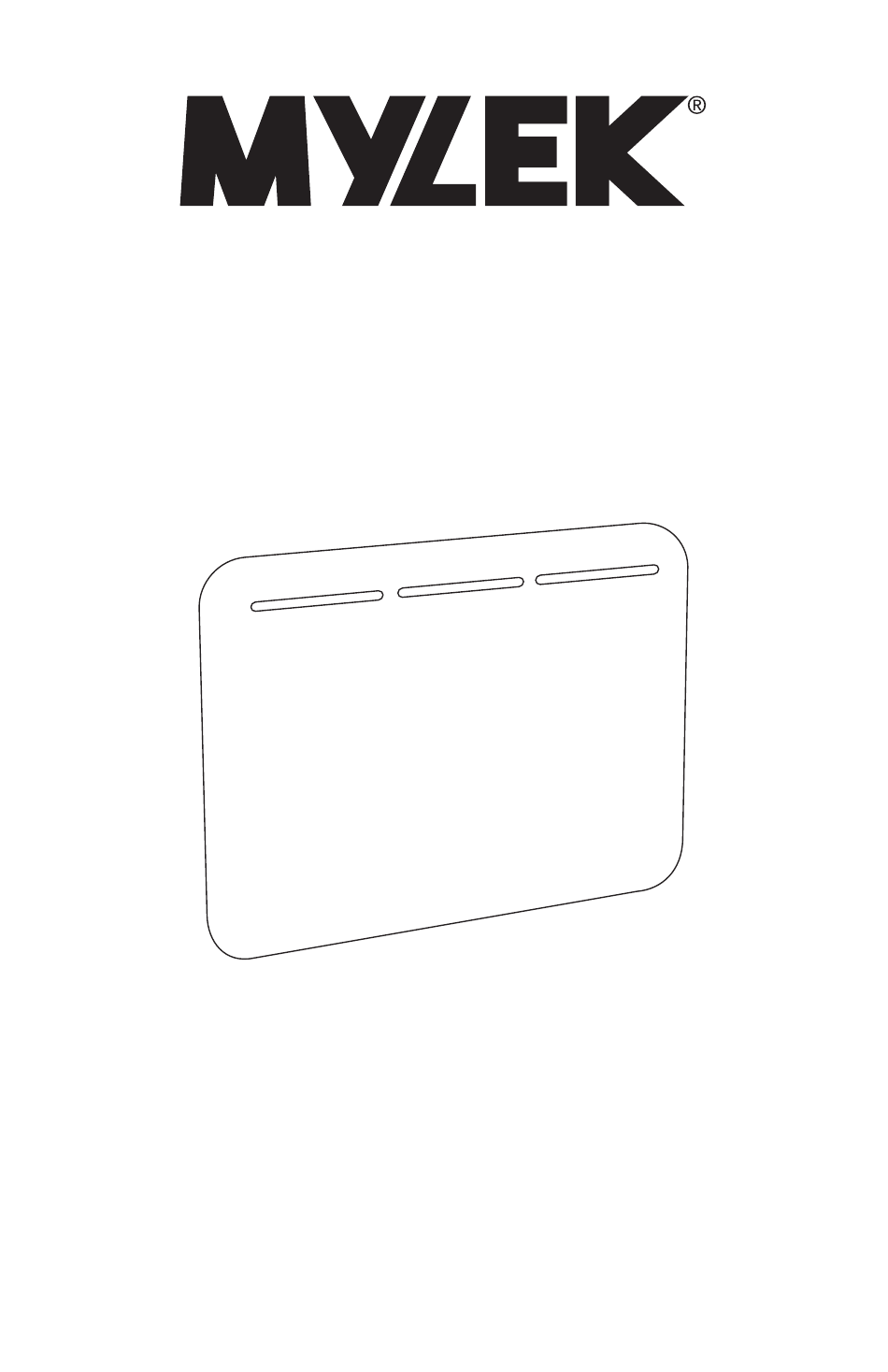

LED Programmable Panel Heater
INSTRUCTION MANUAL FOR MODELS
MYH03-05E, MYH03-10E, MYH03-15E
& MYH03-20E
BEFORE USE:
Please read the instructions carefully. You must inspect the appliance including its
cable and plug for any signs of damage. If the product is damaged, DO NOT USE
and contact your supplier immediately for refund or replacement.
This product is only suitable for well insulated spaces or occasional use.
1
|
Page
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Mylek MYH03-05E
Summary of Contents for Mylek MYH03-05E
- Page 1 LED Programmable Panel Heater INSTRUCTION MANUAL FOR MODELS MYH03-05E, MYH03-10E, MYH03-15E & MYH03-20E BEFORE USE: Please read the instructions carefully. You must inspect the appliance including its cable and plug for any signs of damage. If the product is damaged, DO NOT USE and contact your supplier immediately for refund or replacement.
-
Page 2: General Information
General Information: Thank you for choosing the Mylek LED weekly programmable Panel heater with Open window function. Please take time to carefully read and understand the entire instruction manual before using the product and then save it for future reference. We reserve the right for any errors in text or images and any necessary changes made to technical data. -
Page 3: Safety Instructions
Do not leave any packaging materials within easy reach of children. Before switching on appliance check if the electrical voltage and frequency of the circuit correspond to those indicated on the appliance. Use the appliance only for the stated purpose, namely as a heater for domestic use. Do not use it for any other application as it could be dangerous. - Page 4 • Never expose the appliance to external weather conditions (rain, sun, etc.) • The appliance must always be placed on a flat and stable surface with the feet fitted correctly or fitted correctly to a wall using the correct fixings. •...
-
Page 5: Installation
• The appliance should only be connected to the same voltage as printed on the rating label and manual. • If used as a portable heater do not use in the immediate surroundings of a bath shower or a swimming pool. •... - Page 6 • Drill holes on the wall with ɸ 8mm drill bit and insert the plastic wall plugs. Image 2 on Figure 2 below. • Securely fasten the hanging bracket to the wall with the screws provided. Make sure the hanging bracket is in the cor- rect direction.
-
Page 7: Control Panel
Image 1 Image 2 Image 3 Image 4 Figure 2 Control Panel: Standby Mode selection Open window function Increase function ① Standby: on/off. ② Heating function Decrease function ③ Open window function ④ Comfort mode Timer ⑤ ECO mode ⑥ Timer How to Operate: •... - Page 8 Heating mode: Comfort mode Target temperature setting: 22 ℃ Day: 1(Monday), Time: 00:00 (Off) Window open function: Off Timer: Off • Press to turn off the heater and put into standby mode when not in use. • Unplug the product from the power source when not in use. Setting the Clock and Current Day: •...
-
Page 9: Standard Heating Mode
Standard Heating Mode: This mode can be used without the use of the weekly timer by choosing Comfort mode or ECO mode. Press to select mode selection Comfort or ECO. By pressing , heating mode runs in a continuous cycle as below: •... - Page 10 Set your preferred room temperature by pressing the button. Once temperature is chosen, the display will revert back to the chosen programme P1 or P2. The unit will now operate in P1 or P2 programme. See below for pre-set settings over a 7 day period for programmes P1 and P2. •...
- Page 11 13:00pm – 16:00pm comfort mode, 16:00pm – 20:00pm ECO mode and 20:00pm – 00:00am comfort mode. Figure 3 P3: Can be adjusted to meet your requirements. P3 is the only programme that can be set to your requirements, each day and hour can be set individually by following the instructions below.
-
Page 12: Open Window Function
• Press button again to cancel open window function and revert back to pre- vious operational settings. Model MYH03-05E MYH03-10E MYH03-15E MYH03-20E Power 500W... -
Page 13: Pat Testing
PAT TESTING: When used in a workplace, this product must be safety-tested yearly by a qualified electrician (PAT Tested) in order to comply with the Electricity at Work Regulations. We recommend that it is PAT tested regularly when used in a domestic environment. - Page 14 Information requirement for the electric local space heaters Model identifier(s): MYH03-05E Item Symbol Value Unit Item Unit Heat output Type of heat input, for electric storage local space heaters only (select one) Nominal heat output Pnom kW manual heat charge control, with integrated...
- Page 15 Model identifier(s): MYH03-15E Item Symbol Value Unit Item Unit Heat output Type of heat input, for electric storage local space heaters only (select one) Nominal heat output Pnom kW manual heat charge control, with integrated thermostat Minimum heat output Pmin 0.00024 kW manual heat charge control with room and/or (indicative) outdoor temperature feedback...
-
Page 16: Service / Warranty
If you have any problems with this product, please call our Help Desk on 0800 091 3171 or email: sales@hygienesuppliesdirect.com YESSS Electrical, YESSS House, Normanton, WF6 1TN declares that the Mylek Heaters are exclusively manufactured and imported for Hygiene Supplies Direct Ltd. Page...
