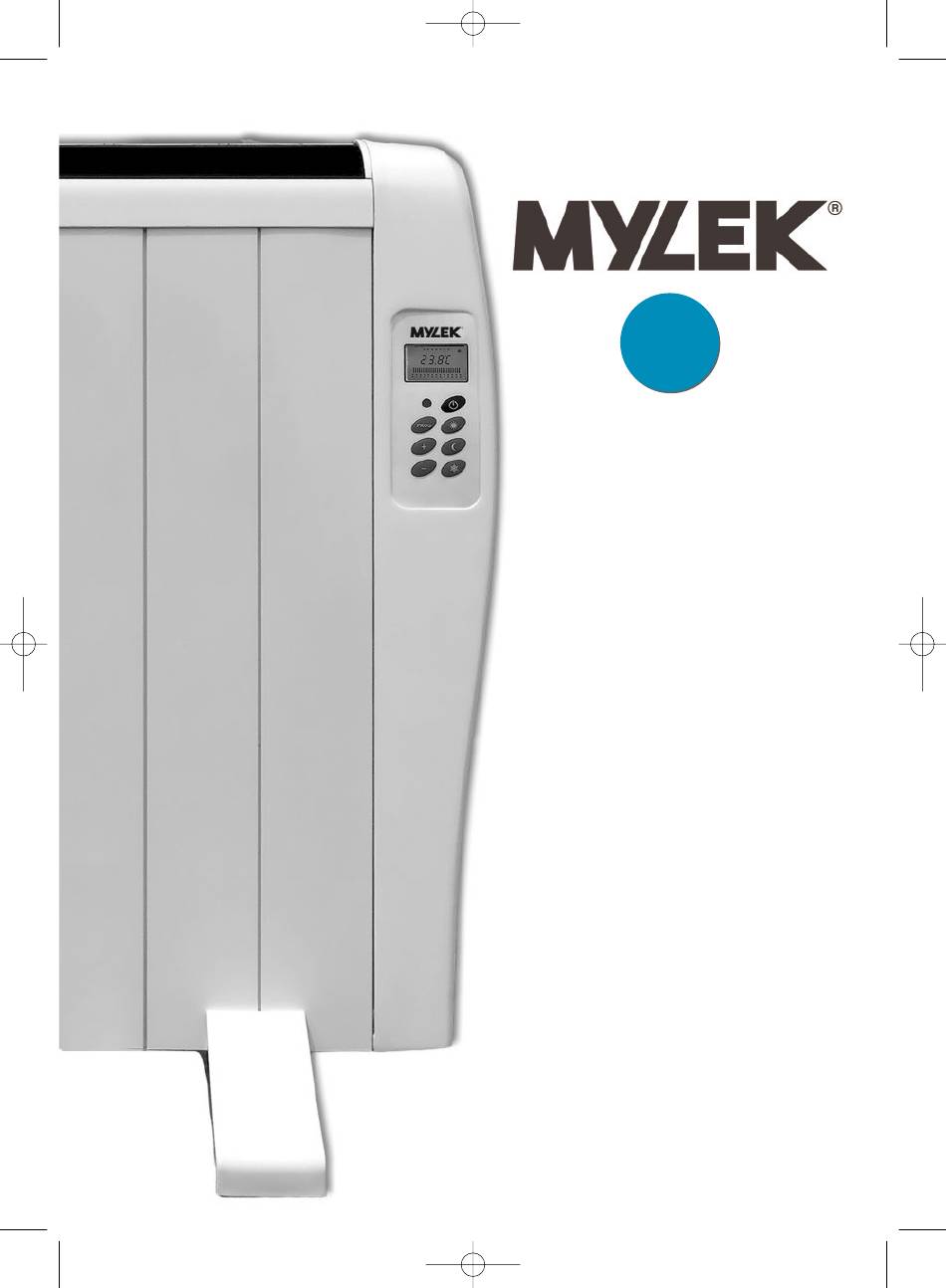

- Page 1 Page 1 PROGRAMMABLE TIMER HEATER W I T H L C D S C R E E N & R E M O T E C O N T R O L MYRA600W MYRA900W MYRA1200W MYRA1500W User Manual - Please read and retain for future reference www.hsdonline.co.uk...
-
Page 2: Table Of Contents
MYLEK_heater_Manual_2018 6/6/18 16:42 Page 2 Contents CONTENTS INTRODUCTION GENERAL SAFETY INSTRUCTIONS INSTALLATION AND MOUNTING 10. CONTROL PANEL 10. LCD SCREEN 10. OPERATION Operating instructions Locking / Unlocking Using the heater Manual use Changing the selected temperature Switching off Automatic use (programmed) 14. -
Page 3: Introduction
ERP Compliant Good News your product is ErP Compliant, ErP stands for “Energy Related Products”. ErP is supported by Mylek to make the use of energy and energy related products more efficient, by phasing out inefficient products and making it easier for consumers to find energy information, providing guidance to more energy efficient products. -
Page 4: General Safety Instructions
MYLEK_heater_Manual_2018 6/6/18 16:42 Page 4 GENERAL SAFETY INSTRUCTIONS • Remove the plug from the mains power socket to disconnect the heater. Do NOT pull on the cable. • Do not leave the mains cable in contact with the heater when it is switched on. •... - Page 5 MYLEK_heater_Manual_2018 6/6/18 16:42 Page 5 * This appliance may be used by children age 8 and over and by persons with physical, sensorial or mental disabilities or without experience or knowledge, provided they have been duly trained and are supervised by somebody who understands the hazards.
-
Page 6: Installation And Mounting
MYLEK_heater_Manual_2018 6/6/18 16:42 Page 6 INSTALLATION AND MOUNTING • This heater can be installed on feet (provided) or wall mountable (fixings provided). • The heater must never be installed underneath a mains wall socket. • The heater must never be installed in a position where the switches and other controls can be reached by someone in the bath or shower. - Page 7 2. The distances marked, “a” and “e” storage. vary depending on the heater model. Safety distances and installation Models a(mm) b(mm) e(mm) f(mm) MYRA600W Feet MYRA900W MYRA1200W 690 MYRA1500W 830 www.hsdonline.co.uk...
- Page 8 MYLEK_heater_Manual_2018 6/6/18 16:42 Page 8 ASSEMBLY 1. While respecting the previously indicated safety measurements, make two marks on the wall according to measurement “e” indicated in Table 1 and at a height of 695 mm from the floor (not from the skirting board). 2.
- Page 9 MYLEK_heater_Manual_2018 6/6/18 16:42 Page 9 5. Hang the heater on the two hooks (C) on the wall. Ensure that the heater is correctly secured on both hooks. (Figure 9). 6. When the heater is hung in place, make two marks on the wall where the two brackets (A) will be fixed to ensure the heater is fixed to the wall.
-
Page 10: Control Panel
MYLEK_heater_Manual_2018 6/6/18 16:42 Page 10 CONTROL PANEL LCD Screen IR Sensor Remote Control Standby “Prog” Button Comfort Mode Increase Economy Mode Decrease Anti-frost Mode LCD SCREEN & REMOTE CONTROL The screen comes on for ten seconds every time a button is pressed and then dims as a energy saving function. -
Page 11: Operating Instructions
MYLEK_heater_Manual_2018 6/6/18 16:42 Page 11 Operating Instructions Locking / Unlocking 1. When the heater is installed and The heater controls will automatically connected to the mains power, press lock when no button has been pressed the ON/ OFF switch, which is located for sixty seconds as a child safety at the bottom right side of the unit. -
Page 12: Changing The Selected Temperature
MYLEK_heater_Manual_2018 6/6/18 16:42 Page 12 Changing the selected • MANUAL - ANTI-FREEZING MODE: temperature a) Press the Anti-freezing Mode button (Figure 13). The heater is supplied with a pre- established temperature for each b) Use the (-) or (+) buttons to select the desired temperature. -
Page 13: Automatic Use (Programmed)
MYLEK_heater_Manual_2018 6/6/18 16:42 Page 13 Automatic Use (Programmed) An operating mode can be assigned to Taking into account your personal needs, the heater provides the each hour: possibility to create an individual • To program comfort, press the program. This program is established “Comfort”... - Page 14 MYLEK_heater_Manual_2018 6/6/18 16:42 Page 14 5. Press the "+" or "-" to select the time EXAMPLE PROGRAMME: bar hour you wish to set. The selected time bar hour will flash, if you require the heater to be off during the selected time bar hour press the "Standby Button"...
-
Page 15: Power Cuts
MYLEK_heater_Manual_2018 6/6/18 16:42 Page 15 POWER CUTS SAFETY • Do NOT cover the heater. Do NOT use If there is a power cut, the heater will it to dry clothes. If it is covered, there not work, but will be switched on again will be a serious risk of overheating. -
Page 16: Information Requirement For The Electric Local Space Heaters
MYLEK_heater_Manual_2018 6/6/18 16:42 Page 16 INFORMATION REQUIREMENT FOR THE ELECTRIC LOCAL SPACE HEATERS MODEL IDENTIFIER(S): MYRA600W ITEM SYMBOL VALUE UNIT ITEM UNIT Type of heat input, for electric storage Heat output local space heaters only (select one) Nominal Pnom 0.60... - Page 17 MYLEK_heater_Manual_2018 6/6/18 16:42 Page 17 MODEL IDENTIFIER(S): MYRA900W ITEM SYMBOL VALUE UNIT ITEM UNIT Type of heat input, for electric storage Heat output local space heaters only (select one) Nominal Pnom 0.90 manual heat charge control, heat output with integrated thermostat Minimum Pmin 0.90...
- Page 18 MYLEK_heater_Manual_2018 6/6/18 16:42 Page 18 INFORMATION REQUIREMENT FOR THE ELECTRIC LOCAL SPACE HEATERS MODEL IDENTIFIER(S): MYRA1200W ITEM SYMBOL VALUE UNIT ITEM UNIT Type of heat input, for electric storage Heat output local space heaters only (select one) Nominal Pnom 1.20 manual heat charge control, heat output with integrated thermostat...
- Page 19 MYLEK_heater_Manual_2018 6/6/18 16:42 Page 19 MODEL IDENTIFIER(S): MYRA1500W ITEM SYMBOL VALUE UNIT ITEM UNIT Type of heat input, for electric storage Heat output local space heaters only (select one) Nominal Pnom 1.50 manual heat charge control, heat output with integrated thermostat Minimum Pmin 1.50...
-
Page 20: Pat Testing
If you have any problems with this product, please call our Help Desk 0800 091 3171 sales@hygienesuppliesdirect.com or email YESSS Electrical, YESSS House, Normanton, WF6 1TN declares that the Mylek Heaters are exclusively manufactured and imported for Hygiene Supplies Direct Ltd. www.hsdonline.co.uk...
