LCD Heater
INSTRUCTION MANUAL FOR MODELS
MYBH1000/MYBH1500
Please Note: This product is only suitable for well-insulated
spaces or occasional use
.
1000W / 1500W Electric Radiator
www.hsdonline.co.uk
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MYBH1000 and is the answer not in the manual?

Questions and answers

Summary of Contents for Mylek MYBH1000

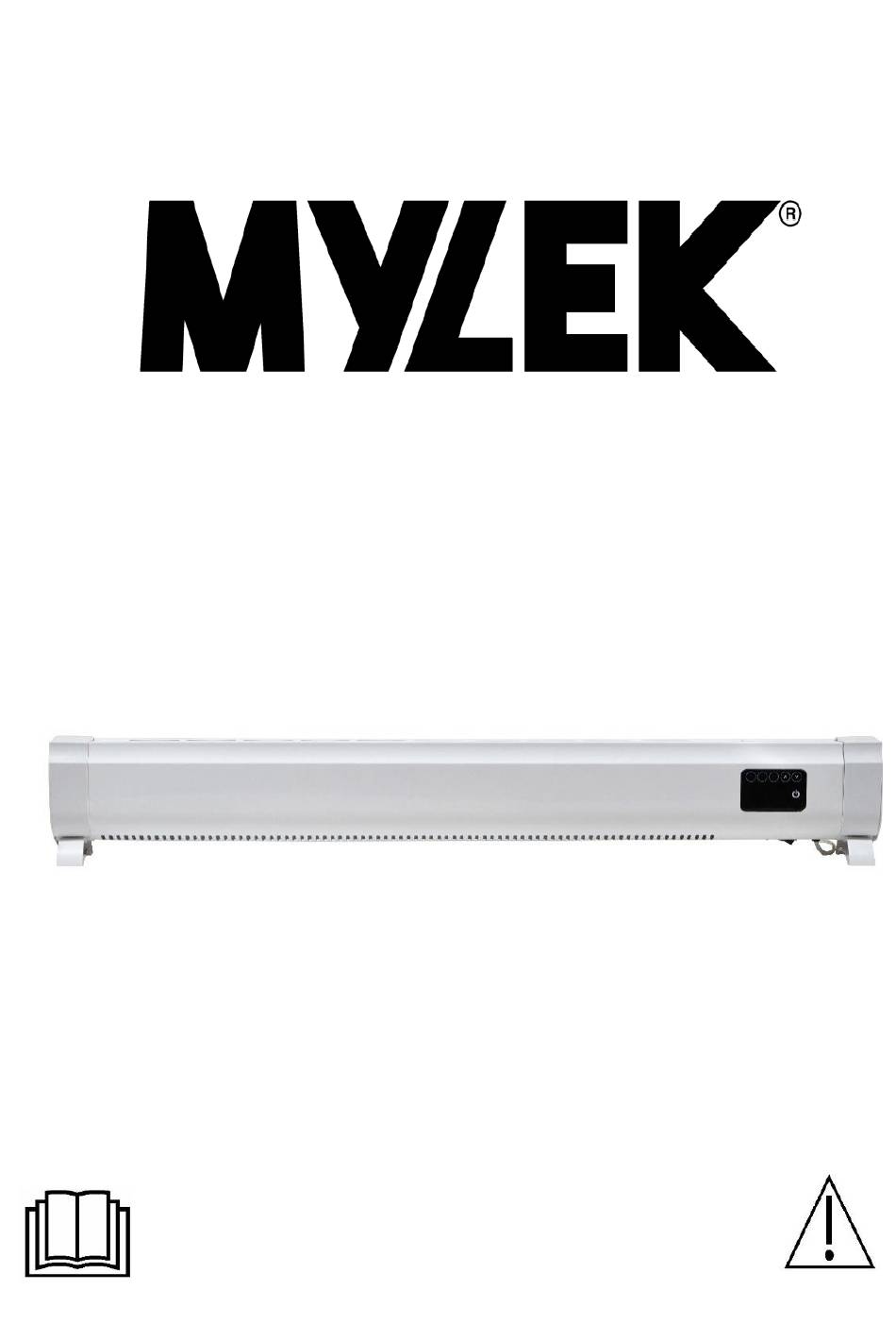

  • Page 1 LCD Heater INSTRUCTION MANUAL FOR MODELS MYBH1000/MYBH1500 Please Note: This product is only suitable for well-insulated spaces or occasional use 1000W / 1500W Electric Radiator www.hsdonline.co.uk...
  • Page 2: Before Use

    IMPORTANT Installer and Users please note: These instructions should be read carefully before use and this document constitutes part of the product which should be kept safely by the user alongside the product. General Information: Please read the entire instruction manual before using the product and then save it for future reference.
  • Page 3: General Safety Requirements

    • Do not cover. This symbol shown on the casing of the heater means that the heater should not be covered. • For indoor use only. • Do not use in bathrooms, wet rooms or other damp locations. • Do not use this product with an extension lead •...
  • Page 4: Lcd Screen

    AIR OUT LCD SCREEN AIR IN POWER SWITCH UNIT LAYOUT LCD SCREEN Screen Lock Button Screen Power Button Timer Button Lock, Timer, Power Indicator Setting Button Temperature/Timer Display Up Button Power Level Indicator Down Button www.hsdonline.co.uk...
  • Page 5: Operation

    OPERATION SETTING UP Plug the mains lead into a 13A mains socket. Move the power switch to “on” position. HEATING Press the Setting Button [3] once to enter power adjustment mode, the unit will bleep and Power Level Indicator [9] will flash to display the current power level. Use the Up [4] and Down [5] buttons to cycle through the power settings.
  • Page 6: Screen Lock

    showing 00hr. Use Up [4] and Down [5] to set the desired time (01hr – 24hr). Once the desired time is displayed, do not press any buttons on the display until the display stops flashing with the Timer Indicator [7] illuminated above it. The timer is now set.
  • Page 7 Frequency 50/60Hz 50/60Hz Wattage (Low /Medium / 300 / 700 / 1500 W 500 / 1000 / 1500 W High) Model Number MYBH1000 / MYBH1500 Item Symbol Value Unit Heat Output Nominal Heat Output 1,0 / 1,5 Minimum Heat Output...
  • Page 8 fan assisted heat output Type of heat output/room temperature control (single select) single stage heat output and no room temperature control Two or more manual stages, no room temperature control with mechanic thermostat room temperature control with electronic room temperature control electronic room temperature control plus day timer electronic room temperature control plus week timer Other control options (multiple selections possible)
  • Page 9: Fault Finding

    FAULT-FINDING The heater has an overheat protection switch, which disconnects the power if the element gets too hot. The usual reason for this is because the air-flow has been obstructed. If the heater ceases to operate, leave it for 20 minutes to cool down, then check that the grilles are not being obstructed.
  • Page 10: Service / Warranty

    If you have any problems with this product, please call our Help Desk on 0800 091 3171 or email: sales@hygienesuppliesdirect.com PREMIAIR APPLIANCES LTD, St Helens, WA9 3EX declares that the Mylek Electric Heater is exclusively manufactured and imported for Hygiene Supplies Direct Ltd. Made in China...

This manual is also suitable for:

Mybh1500
