Quick Start Guide v2.4
https://wiki.teltonika-networks.com/

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TRB140 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Teltonika TRB140

Summary of Contents for Teltonika TRB140

  • Page 1 Quick Start Guide v2.4 https://wiki.teltonika-networks.com/...

  • Page 2: Front View

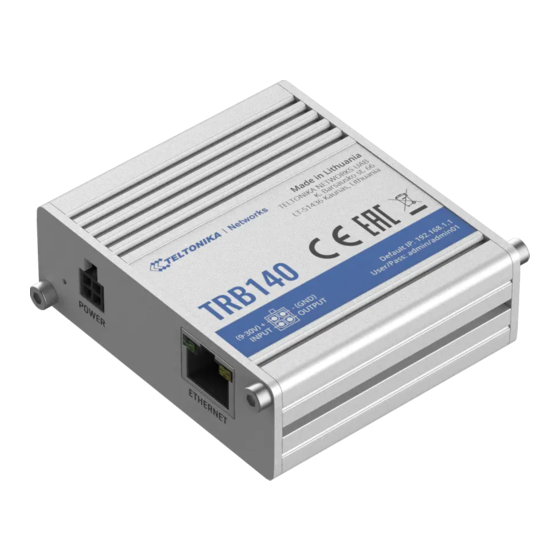

    FRONT VIEW Power socket Ethernet port Power LED BACK VIEW Mobile signal strength indication LEDs Mobile network type LEDs Reset button USB port Mobile antenna connector...

  • Page 3: Hardware Installation

    POWER SOCKET PINOUT HARDWARE INSTALLATION 1. Unscrew two back panel hex bolts. 2. Remove the back panel. 3. Insert your SIM card into the SIM socket. 4. Attach the panel and tighten the hex bolts. 5. Attach the mobile antenna (max torque 0.4 N·m / 3.5 lbf·in) and connect the USB cable.

  • Page 4: Device Configuration

    DEVICE CONFIGURATION 1. Power on the device and connect the USB cable to your computer. 2. Allow the gateway to boot up. This might take up to 30 seconds. 3. Your computer's OS should detect the USB device and install the driver. 4.

  • Page 5: Safety Information

    SAFETY INFORMATION TRB140 gateway must be used in compliance with any and all applicable national and international laws and with any special restrictions regulating the utilization of the communication module in prescribed applications and environments. Hereby, TELTONIKA declares that this TRB140 is in compliance with the essential requirements and other relevant provisions of [EN] English Directive RED.
  • Page 6 Más información en https://wiki.teltonika-networks.com/ [FI] Käyttöohje: Kytke virtalähde päälle laitteen. Avaa 192.168.2.1 in selaimen määrittää tuotteen. Lisää tietoa https://wiki.teltonika-networks.com/ [FR] Mode d'emploi: Connectez l'adaptateur d'alimentation pour allumer l'appareil. Ouvrez 192.168.2.1 dans un navigateur Web pour configurer le produit. Plus d'informations dans https://wiki.teltonika-networks.com/...
