Summary of Contents for pottery barn kids ZOEY CRIB

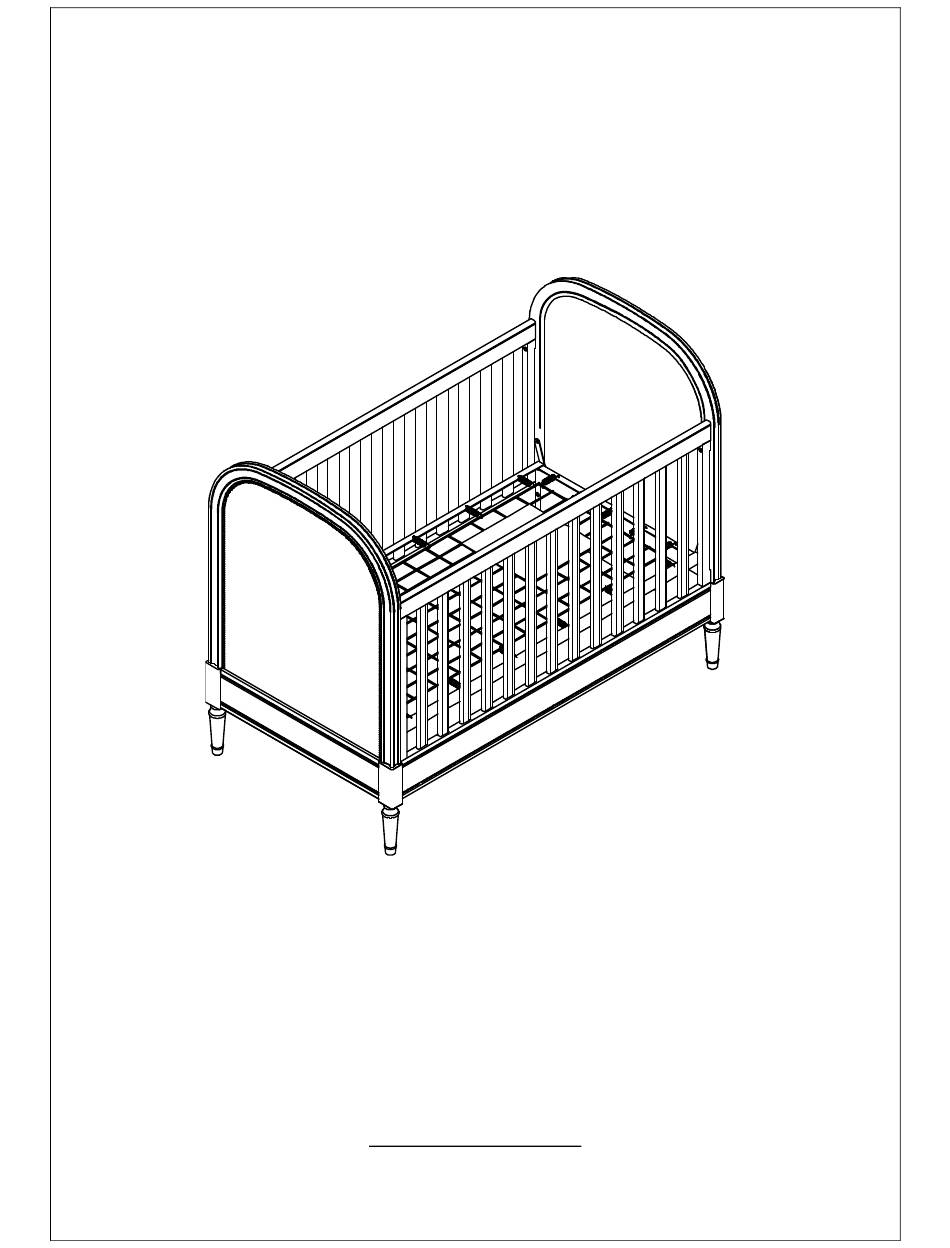

- Page 1 pottery barn kids ZOEY CRIB www.potterybarnkids.com Date: 2016-Jun.-08 Rev: Page 1 of 8 ...
- Page 2 Do not use it if any parts are loose or missing or if there are any signs of damage. Do not substitute parts. Contact Pottery Barn Kids if replacement parts or additional instructions are needed.
- Page 3 Do not remove the metal brackets from the mattress base after installation. NOTE: This is only for cribs supplied with a wooden mattress base. Follow warnings on all products in a crib. 04-000056-8 CAUTION: ANY MATTRESS USED IN THIS CRIB MUST BE AT LEAST 27 ¼”...
- Page 4 HARDWARE INCLUDED: (E) Long Allen Bolt 1/4” x 2-1/4” - 4x (D) Allen key with ball tip 4 x 110mm - 1x (F) Medium Allen Bolt 1/4” x 1-3/4”- 4x (G) Short Allen Bolt 1/4” x 3/4” - 4x (H) Short Bolt 6 x 5/8”...
- Page 5 ASSEMBLY INSTRUCTIONS: 1. Attach (J&K) to (C). Use Allen Key (D) to tighten as shown below. Note: Make sure the brackets (J&K) point outwards as shown below THIS SIDE UP / CE CÔTÉ VERS LE HAUT / ESTE LADO ARRIBA 2. Attach (L) to (H). Use Open Wrench (M) and Allen Key (D) to tighten as shown below. Date: 2016-Jun.-08 Rev: Page 5 of 8...
- Page 6 3. Attach (B) to (A) by aligning pre-drill holes with wooden dowels as shown below. Do not fully tighten bolts (E & F) at this time. ...
- Page 7 *Note: The mattress base (C) should be at the highest level (Level 3) when the child is born. It must be at the lowest level (Level 1) before the child can stand up. Before installing the mattress base (C), please ask the customer at which height they want it installed. 5.
- Page 8 6. Slowly turn the crib upright. 7. Check alignments and fully tighten all connections at this time. 8. Assembly is now complete. 9. Place the assembly instructions back into the envelope mounted on the mattress base for future reference. CARE INSTRUCTIONS: ...
